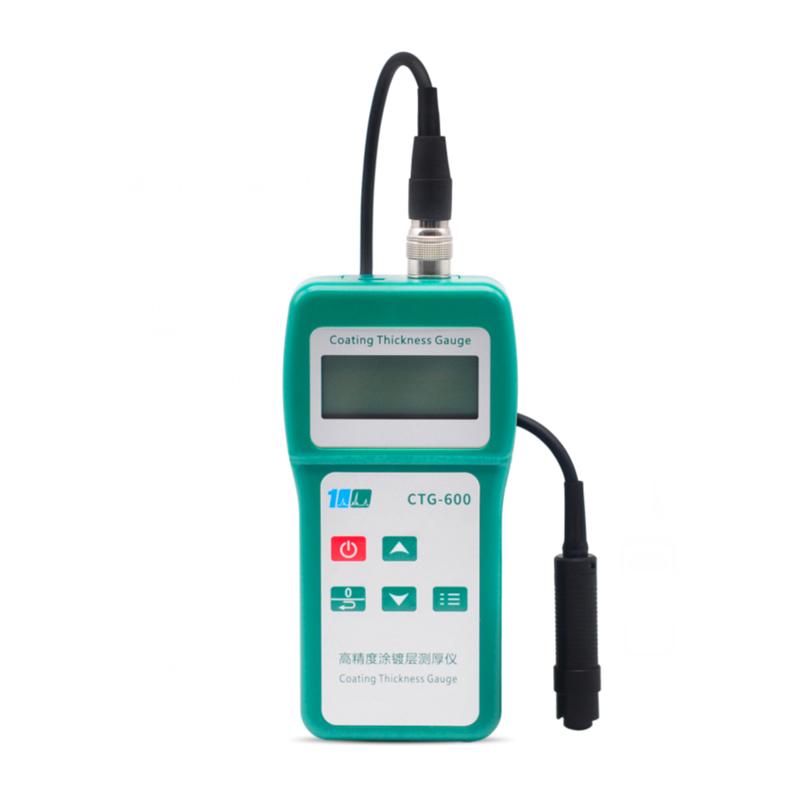

YIBAI CTG-600FN3 split dual-use Coating Thickness Gauge 3mm thick coating

CTG-600FN3

Coating Thickness Gauge

Eddy Current + magnetic Induction, 0~3000μm, resolution 0.1μm, Measurement accuracy +/- 2% H + 1μm, LCD lattice LCD screen, spring guide sleeve probe with wear-resistant cemented carbide probe, light touch Measurement accuracy is good.

The CTG-600FN3 split coating Thickness Gauge has the functions of backlight, large-screen digital display, single-point and multi-point calibration, and this product is resistant to high-low temperatures, drops, probe wear resistance (more than 500,000 times), good test stability, fast test speed, and suitable for various measurement environments. Its technical parameters are fully national and international standards.

The FE function detects the thickness of non-magnetic coatings on all magnetic substrates, such as lacquer applied to steel, iron, powder coating, plastic, porcelain, chromium, copper, zinc, etc.

The NFe function detects the thickness of the insulating coating on all non-magnetic substrates, such as lacquer, plastic, porcelain, etc. These coatings must be applied to a non-magnetic metal substrate such as aluminum, copper, brass or stainless steel.

function

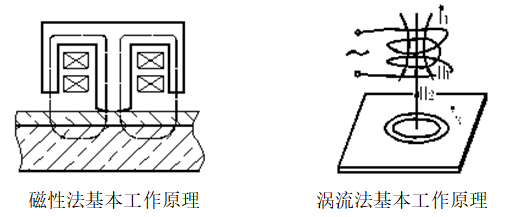

●Measurement method: F magnetic induction, N eddy current

●Spring-loaded guide bush probe with wear-resistant carbide probe can ensure that the probe has constant compression force and stable sampling value when measuring on hard or rough surfaces;

●It can quickly and automatically identify the magnetic substrate;

●High precision and good stability;

●The measurement speed can reach 0.3 seconds/time;

●Large-screen digital display is clearer;

●Two shutdown modes: manual shutdown mode and automatic shutdown mode;

●Wide measurement range and high resolution;

●Digital backlight display, no parallax, suitable for night use;

●Measurement mode: single measurement/continuous measurement;

●It has the function of converting metric and imperial units to achieve μm/mil conversion;

●Newly designed shell and internal structure to enhance the beauty, drop resistance and impact resistance of the product;

●The light touch measurement accuracy is good.

Packing list：host, 1 set of standard tablets (6 tablets: 50μm, 100μm, 250μm, 500μm, 1000μm, 2000μm), 1 iron substrate, 1 aluminum substrate, 1 manual, 2 batteries, warranty card, certificate of conformity

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
