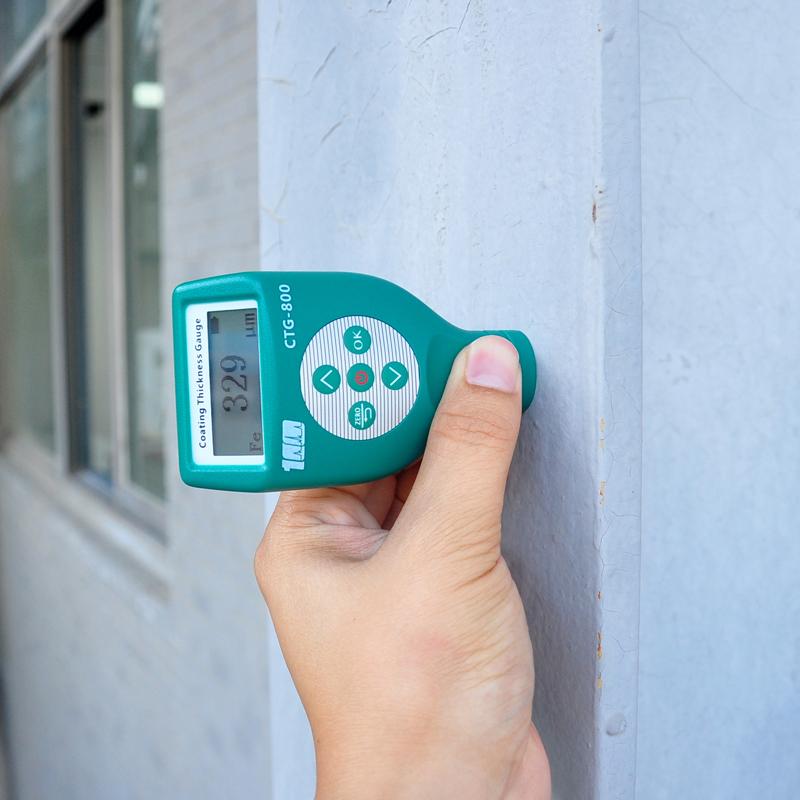

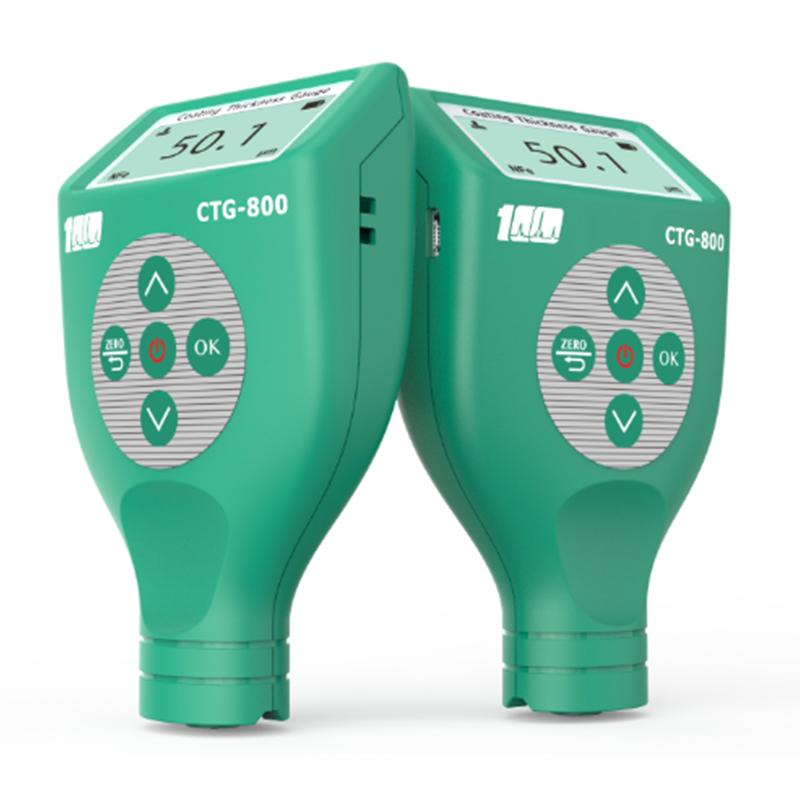

YIBAI CTG-800F5 Single Iron Base Large Range Coating Thickness Gauge

CTG-800F5

Coating Thickness Gauge

Measurement accuracy +/- 2 %~ +/- 3%, LCD lattice LCD screen, magnetic Induction principle, spring guide sleeve probe with wear-resistant cemented carbide probe.

The CTG-800F5 coating Thickness Gauge uses the principle of magnetic induction to detect the thickness of non-magnetic coatings on all magnetic substrates, and it can measure the thickness of coatings and coatings quickly, without damage and accurately. It can be used both in the laboratory and in the engineering field. This instrument can be widely used in the automotive industry, manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.

Yibai CTG-800F5 coating Thickness Gauge has the functions of backlight, large-screen digital display, single-point and multi-point calibration, and this product is resistant to high-low temperatures, drops, probe wear-resistant (more than 500,000 times), good test stability, fast test speed, suitable for various measurement environments. Its technical parameters are in full compliance with national and international standards.

The FE function detects the thickness of non-magnetic coatings on all magnetic substrates, such as lacquer applied to steel, iron, powder coating, plastic, porcelain, chromium, copper, zinc, etc.

function

●A measurement method: F magnetic induction

●Spring-loaded guide bush probe with wear-resistant carbide probe can ensure that the probe has constant compression force and stable sampling value when measuring on hard or rough surfaces;

●High precision, good stability, can measure 1-5μm ultra-thin coating;

●The measurement speed can reach 0.3 seconds/time;

●Large-screen digital display is clearer;

●Two shutdown modes: manual shutdown mode and automatic shutdown mode;

●Wide measurement range and high resolution;

●Digital backlight display, no parallax, suitable for night use;

●Measurement mode: single measurement/continuous measurement;

●It has the function of converting metric and imperial units to achieve μm/mil conversion;

●Newly designed shell and internal structure to enhance the beauty, drop resistance and impact resistance of the product;

●The light touch measurement accuracy is good.

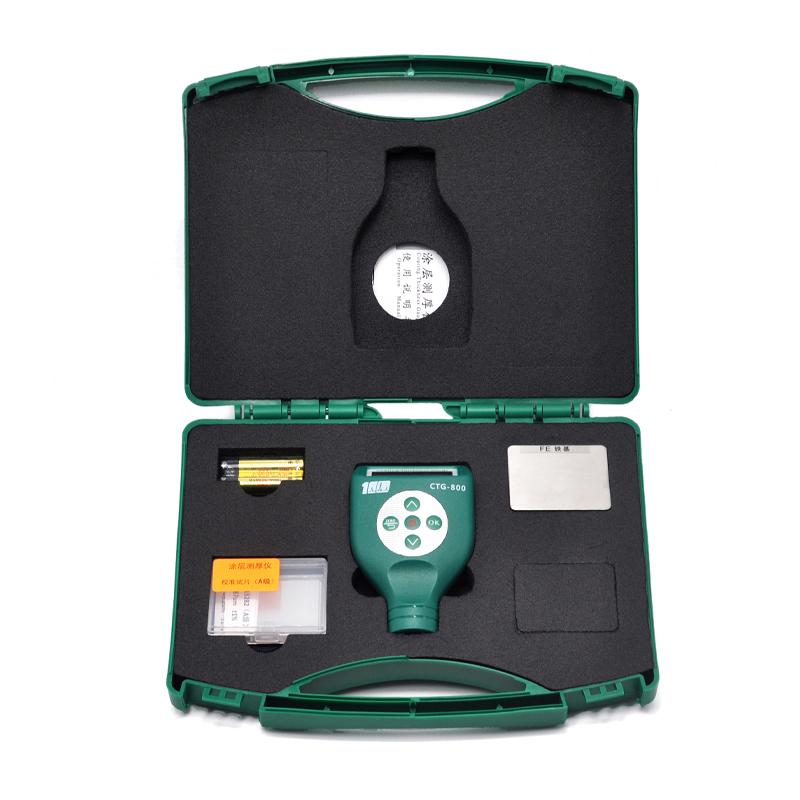

Packing list：host, 1 set of standard tablets (7 tablets: 50μm, 100μm, 250μm, 500μm, 1000μm, 2000μm, 4000μm) 1 substrate (iron substrate), 1 manual, 2 batteries, warranty card, certificate of conformity

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
