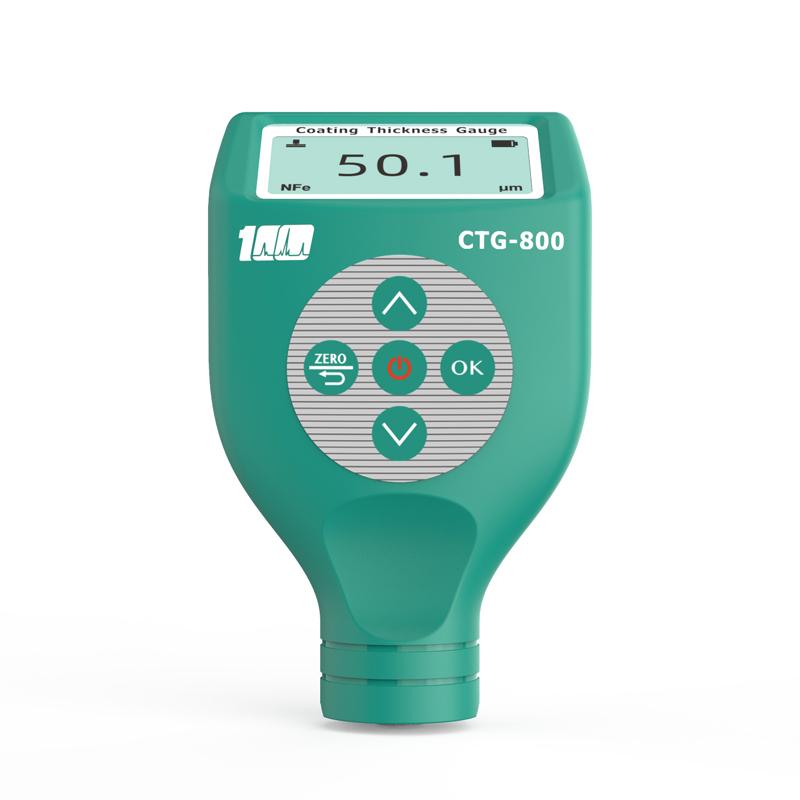

YIBAI CTG-800Z dual-use Coating Thickness Gauge

CTG-800Z

Coating Thickness Gauge

Measurement range 0~1500μm, can switch display galvanized gram weight unit, magnetic Induction + eddy Current, Measurement range 0~1500μm, Measurement accuracy +/- 2% H + 1μm.

The CTG-800Z coating Thickness Gauge is a magnetic and eddy current integrated instrument, which automatically identifies magnetic or non-magnetic substrates and converts them automatically, which can measure the thickness of coatings and plating layers quickly, without damage and accurately. It can be used both in the laboratory and in the engineering field. This instrument can be widely used in the automotive industry, manufacturing, metal processing industry, chemical industry, commodity inspection and other testing fields.

The CTG-800Z coating Thickness Gauge has the functions of backlight, large-screen digital display, single-point and multi-point calibration, and this product is resistant to high-low temperatures, drops, and the probe is wear-resistant (more than 500,000 times), with good test stability and fast test speed, and is suitable for various measurement environments. Its technical parameters are in line with national and international standards.

The FE function detects the thickness of non-magnetic coatings on all magnetic substrates, such as lacquer applied to steel, iron, powder coating, plastic, porcelain, chromium, copper, zinc, etc.

The NFe function detects the thickness of the insulating coating on all non-magnetic substrates, such as lacquer, plastic, porcelain, etc. These coatings must be applied to a non-magnetic metal substrate such as aluminum, copper, brass or stainless steel.

Galvanized grammage function: You can switch to display the galvanized gram weight unit gram/square meter.

function

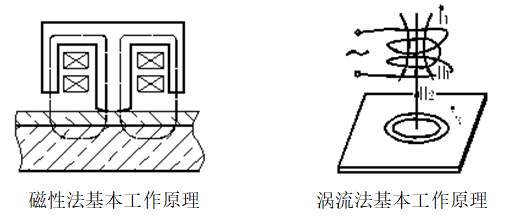

●Measurement method: F magnetic induction, N eddy current

●Spring-loaded guide bush probe with wear-resistant carbide probe can ensure that the probe has constant compression force and stable sampling value when measuring on hard or rough surfaces;

●It can quickly and automatically identify magnetic substrates and non-magnetic substrates;

●High precision, good stability, can measure 1-5μm ultra-thin coating;

●The measurement speed can reach 0.3 seconds/time;

●Large-screen digital display is clearer;

●Two shutdown modes: manual shutdown mode and automatic shutdown mode;

●Wide measurement range and high resolution;

●Digital backlight display, no parallax, suitable for night use;

●Measurement mode: single measurement/continuous measurement;

●It has the function of converting metric and imperial units to achieve μm/mil conversion;

●Newly designed shell and internal structure to enhance the beauty, drop resistance and impact resistance of the product;

●The light touch measurement accuracy is good.

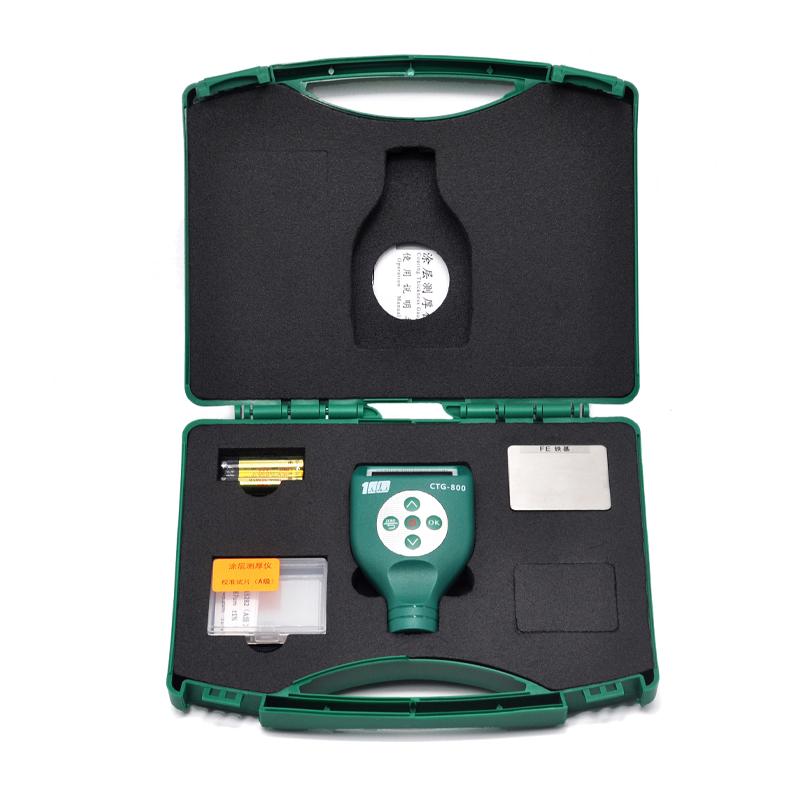

Packing list：1 set of standard tablets (5 tablets: 50μm, 100μm, 250μm, 500μm, 1000μm), 2 substrates (iron substrate, aluminum substrate), 1 manual, 2 batteries, warranty card, 1 certificate

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
