JINGRUI SX2-5-12G Box-Type Resistance Furnace Heating power 5KW Design temperature 1200 ℃

SX2-5-12G

Box Furnace

Overview

The design temperature of the elite SX2-5-12G box Resistance Furnace is 1200°C, and the recommended temperature is ≤1100°C.The furnace door of SX2-5-12G box-type Resistance Furnace is an elite technology, which is fully sealed to ensure that the high temperature in the furnace does not leak, and the economical refractory furnace is adopted.

Features

1. One-piece structure, fashionable and generous appearance.

2. The box made of good cold-rolled steel plate is pickled and phosphated, refined, and the surface is electrostatically sprayed.

3、eliteSX2-5-12G box-type Resistance FurnaceThe heating element is made of steel flower brand furnace wire, which is cost-effective and stable.

4. The intelligent OID temperature control instrument displayed by the digital tube is selected, with high temperature control accuracy, self-tuning, fault self-diagnosis and other functions.

5. The muffle furnace adopts a fully closed furnace door and a technical furnace door structure. Ensure that the high temperature in the furnace does not leak out, so as to improve the Operating Environment, prolong the service life of the electric furnace, and save energy.

6. The thermocouples are all made of stainless steel armored structure, with high temperature control accuracy and long life.

7. Safety protection measures: the breakpoint protection system will be automatically started when the furnace door is opened, and it has the function of preventing the Resistance Furnace from heating after the power supply line is restored.

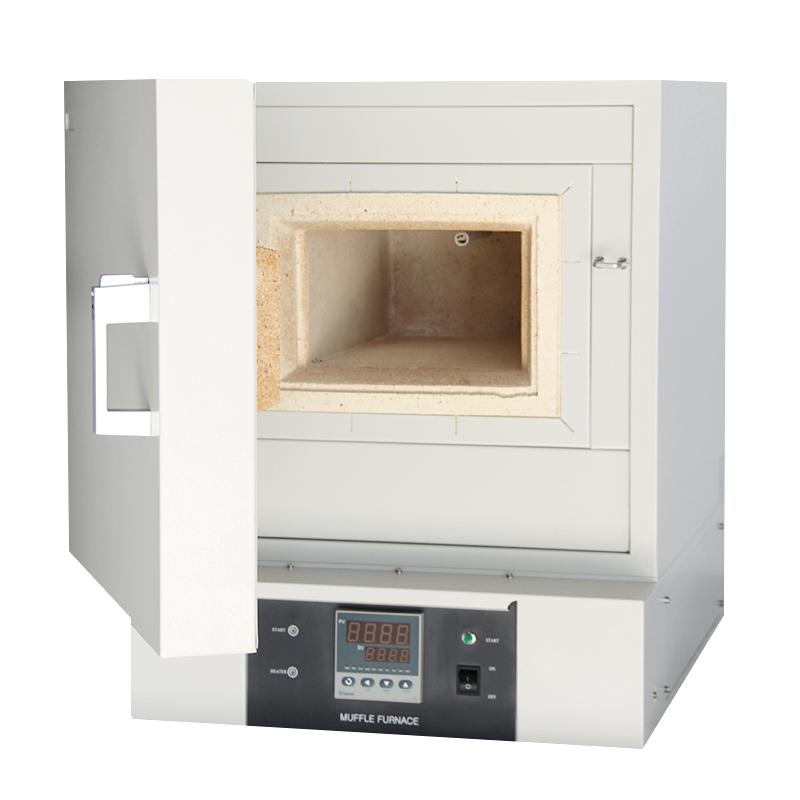

Actual picture of the product

Options

Can be installed configuration: flue; Air intake system (for inert gases); Paperless Recorders;

Optional : optional 30-segment program temperature control instrument; Crucible; crucible pliers; Furnace floor

Packing list：Resistance furnace x1, manual x1, certificate x1, Encasement box x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
