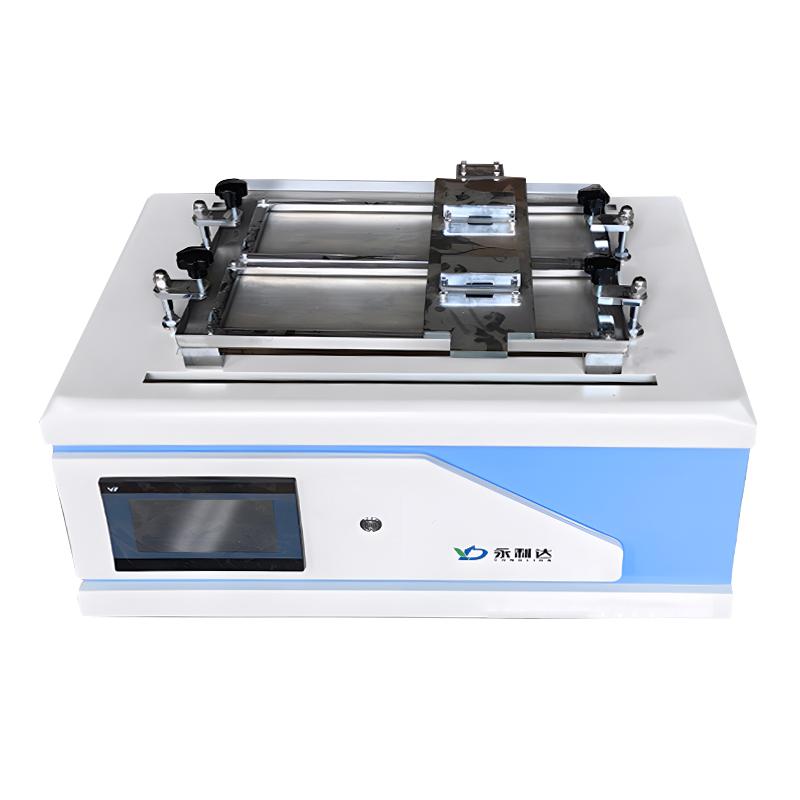

YONGLIDA YLD-5810 Coating resistance Tester

YLD-5810

Coating Washability Tester

Brush and brush holder total weight 450g, Brush Motion Frequency is 37 times per minute reciprocating, Brush single travel distance 300mm, counter 4, Power supply Voltage 220V, 50HZ, size 680 × 430 × 380mm, machine weight 36Kg.

Introduction

It is designed and manufactured in accordance with the provisions of GB/T9266 "Determination of Scripping Resistance of Architectural Coatings". At the same time, it meets the test requirements of the new national standard GB/T9755. The control system adopts a color LCD touch screen control system, which is suitable for measuring the washing resistance of architectural paint coatings (flat type). It is a testing instrument for scientific research measurement and coating production plants.

Features

• color LCD touch screen control system;

• When the number of brush runs reaches the set number of times, it will automatically stop working;

• After replacing the brush, a variety of standard tests can be done (need to be customized);

• Driven by DC stepper motor, it is safe and has no effect on the fluctuation of mains;

• Adopt modular slider system, smooth operation;

• Using a double brush combination, two tests can be done at a time;

• The peristaltic pump controls the liquid flow rate, and the flow rate is adjustable;


• The workbench is designed with 304 stainless steel, which is corrosion-resistant.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
