JINGRUI SX2-10-12G Box-Type Resistance Furnace tempered brand furnace wire, technical furnace door structure
SX2-10-12G
-
BOZHEN BZ-10-12 integrated Box-Type Resistance Furnace muffle furnace 1200 ℃ high aluminum furnace 16L$ 817.00SE -
BOZHEN BZ-10-12P program temperature control muffle furnace 30 program PID temperature control$ 876.00SE -
YIHENG SX2-10-12N muffle furnace Input Power 10KW Volume is 16L$ 1406.00SE -
JINGQI SX2-10-12TP integrated ceramic fiber muffle furnace 1200 ℃$ 1921.00SE
JingRui SX2-10-12G Box FurnaceSPEC
JingRui SX2-10-12G Box FurnaceDetails
JingRui SX2-10-12G Box FurnacePacking list
- SKU
- NB004738
- maximum temperature
- 1200℃
- Temperature range
- ≤1100℃
- Heating Elements
- Iron chromium aluminum alloy heating wire
- Furnace Volume
- 16L
- Heating power
- 10KW
- Temperature control Accuracy
- ±1℃
- Heating rate
- ≤15℃/min
- Temperature control instrument
- LCD/smart PID temperature control
- Thermocouple
- Thermocouple K
- Furnace size
- 400*250*160mm
- Power supply Voltage
- Three-phase AC380V/50Hz
- Dimension
- 810*570*760mm
Box-type Resistance Furnaceoverview
SX2-10-12G box-type Resistance Furnace is an elite basic box-type Resistance Furnace with a design temperature of 1200°C, a working temperature of ≤1100°C, and a heating power of 10KW.Box-type Resistance FurnaceSX2-10-12G is a box-type muffle furnace with integrated structure design, the door structure design is elite technology, and the steel flower brand furnace wire of a good domestic (CN) brand is adopted, which has the advantages of high cost performance and good stability.
Features
1. One-piece structure, fashionable and generous appearance.
2. The box made of good cold-rolled steel plate is pickled and phosphated, refined, and the surface is electrostatically sprayed.
3、eliteSX2-10-12G box-type Resistance FurnaceThe heating element is made of steel flower brand furnace wire, which is cost-effective and stable.
4. The intelligent OID temperature control instrument displayed by the digital tube is selected, with high temperature control accuracy, self-tuning, fault self-diagnosis and other functions.
5. The muffle furnace adopts a fully closed furnace door and a technical furnace door structure. Ensure that the high temperature in the furnace does not leak out, so as to improve the Operating Environment, prolong the service life of the electric furnace, and save energy.
6. The thermocouples are all made of stainless steel armored structure, with high temperature control accuracy and long life.
7. Safety protection measures: the breakpoint protection system will be automatically started when the furnace door is opened, and it has the function of preventing the Resistance Furnace from heating after the power supply line is restored.

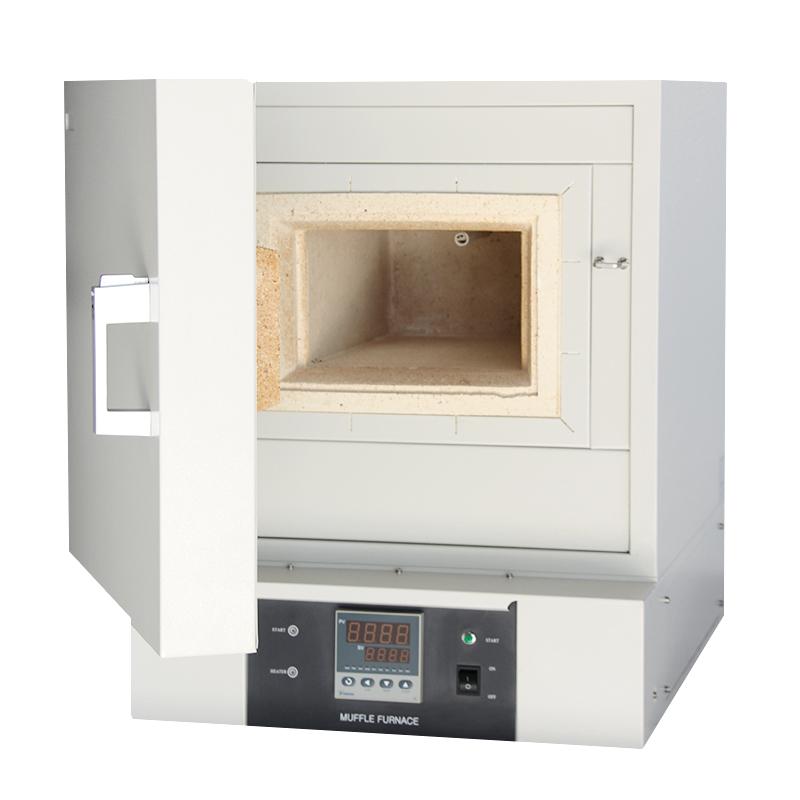

Actual picture of the product
Options
Can be installed configuration: flue; Air intake system (for inert gases); Paperless Recorders;
Optional : optional 30-segment program temperature control instrument; Crucible; crucible pliers; Furnace floor
