CHINA NBC-9013 battery extrusion Tester, lithium battery extrusion failure Tester

Force value range 1~ 20kN, force measurement accuracy 0.1N, unit conversion kg, N, lb, extrusion stroke 200mm or 300mm, force value display PLC touch screen display, battery extrusion head standard extrusion head, area ≥ 20cm ², extrusion degree Extrusion pressure reaches 13 +/- 0.2kN, keep 1min., box material Inner box stainless steel, outer box Cold rolled steel plate spray treatment.

$2129.00/set

PromotionLoading...

Coupon

Model：

NBC-9013

Factory

Contact

Details SPEC Con CAT

Factory NBC-9013 Battery extrusion testing machineSPEC

Factory NBC-9013 Battery extrusion testing machineDetails

Factory NBC-9013 Battery extrusion testing machinePacking list

SKU: NB047388

Drive mode: Hydraulic motor drive

Force range: 1 ～20kN

Force measurement Accuracy: 0.1N

unit conversion: kg, N, lb

Extrusion stroke: 200Mm or 300mm

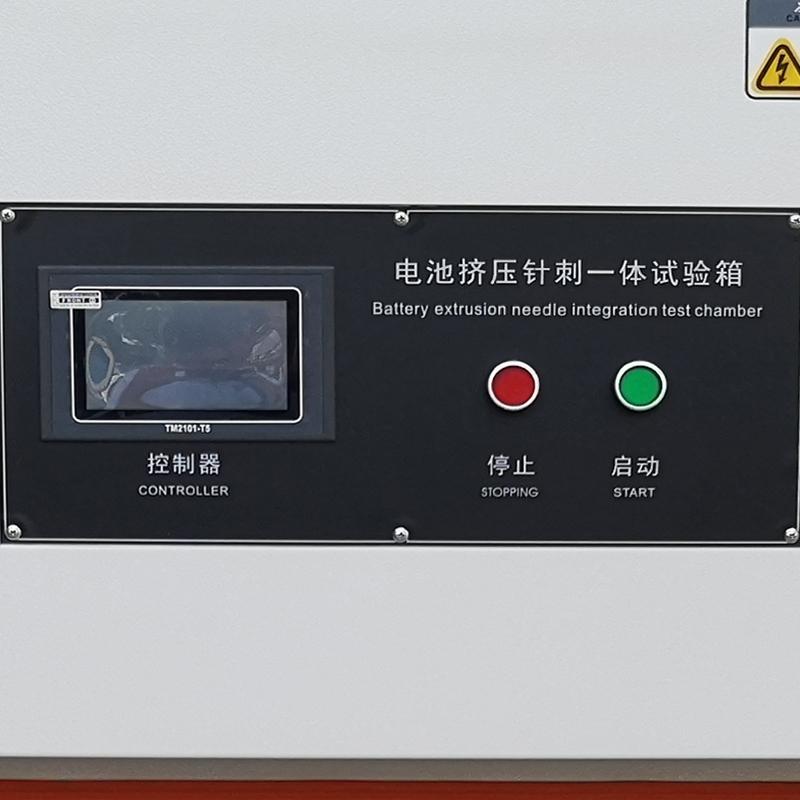

Force display: PLC touch screen display

Battery extrusion head: Standard extrusion head, area ≥ 20cm ²

degree of extrusion: The extrusion pressure reaches 13 +/- 0.2 kN and is maintained for 1 minute.

Box material: Inner box stainless steel, outer box Cold rolled steel plate Spray treatment

feature: The rear side of the box is designed with a discharge trend and a pressure relief device, and the box is equipped with a lighting lamp

Test space (length x width x height): 300x300x300mm

Dimensions (length x width x height): About 700x800x1830mm

Weight: About 220kg

Power Supply: AC380V， 50HZ

NBC-9013

Battery extrusion testing machine

Introduction

NBC-9013 Battery Extrusion Tester The Battery Extrusion Tester is suitable for simulating the crushing of batteries during the use, transportation, storage or disposal of household waste.Extrusion testThe following rules should be followed in the extrusion direction: a battery is only squeezed once, and the battery is qualified to not explode and not fire.

1. For cylindrical batteries, the longitudinal axis of the extruded battery should be parallel to the two plates of the extrusion device;

2. For prismatic and pouch cells, only the wide side of the battery is squeezed;

3. For coin type or button type batteries, the upper and lower planes of the battery are squeezed in parallel to the flat plate.

According to the standard

GB 31241-2014，GB/T 8897.4-2008，YD/T 2344.1-2011，GB/T 21966-2008，MT/T 1051-2007，YD 1268-2003，GB/T 19521.11-2005，YDB 032-2009，UL 1642，UL 2054，IEC 62281，IEC 60086。
