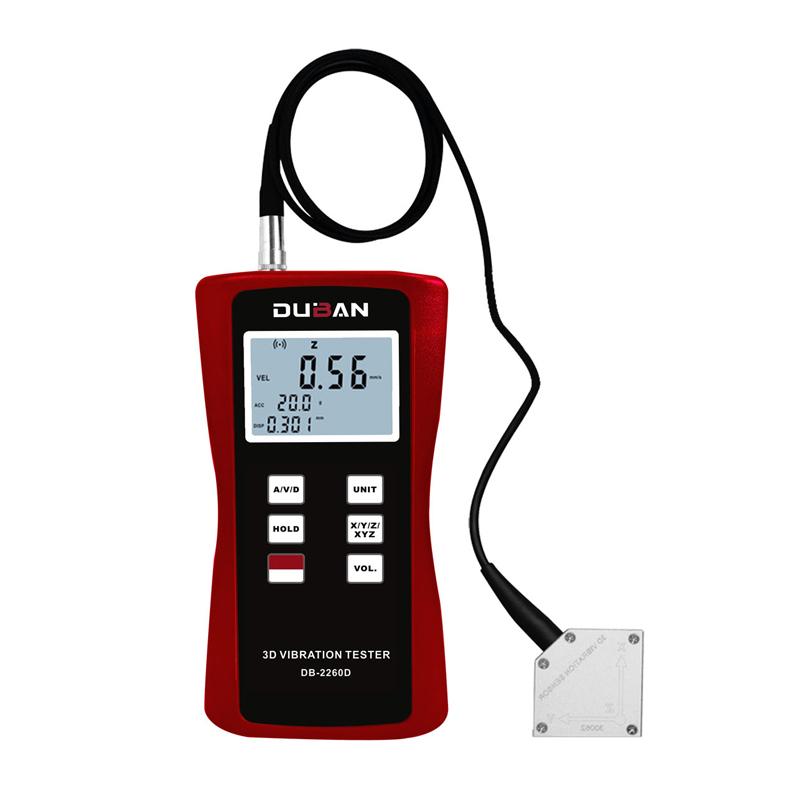

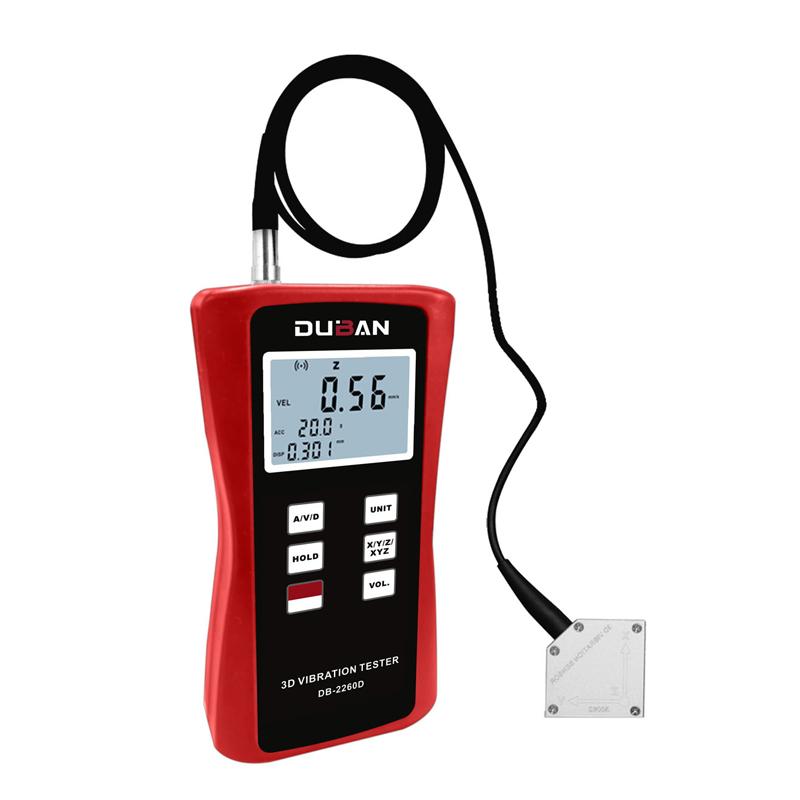

DUBAN DB22-VM260D 3D Triaxial Vibration Meter with Triaxial Piezoelectric Vibration Sensors

DB22-VM260D

3D VIBRATION TESTER

Sensors: Three-axis piezoelectric vibration Sensors, vibration axis X, Y, Z axis or three axes, Precision +/- 5% + 2 words, Measurement range displacement: 0.001~ 4.0mm peak-peak; Speed: 0.01~ 400.0 m/s True RMS; Acceleration: 0.1~ 400m/s ² peak, Frequency range displacement: 10Hz~ 1KHz; Speed: 10Hz~ 1KHz; Acceleration: 10Hz~ 10KHz.

Introduction

The triaxial vibratIon Meter can measure the vibration parameters of the three axes or the vibration parameters of the single axis at the same time; It is used for periodic motion measurement to detect imbalances and deviations in moving machinery. Designed for on-site measurement of a wide range of mechanical vibrations to provide data for quality control, uptime and prior equipment maintenance. Choose a high-performance accelerometer for accurate, reproducible measurements.

Features

• It is possible to measure the vibration parameters of the three axes or the vibration parameters of the single axis at the same time.

• Compliant with international standards ISO2954 for periodic motion measurement to detect imbalances and deviations in moving machinery.

• Designed for on-site measurement of a wide range of mechanical vibrations to provide data for quality control, uptime and prior equipment maintenance.

• Wide frequency range, in acceleration mode, the frequency can reach 10-10KHz.

• With AC signal output, it is convenient for auscultation and recording.

• An optional headset can be used as a stethoscope.

• It uses "USB cable output" to communicate with the PC.

Packing list：Host X1, magnetic suction seat X1, probe (tapered) X1, probe (spherical) X1, measurement Sensors X1, portable case X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
