DUBAN DB22-TM271D Measurement range 0.00 OD - 6.00 OD

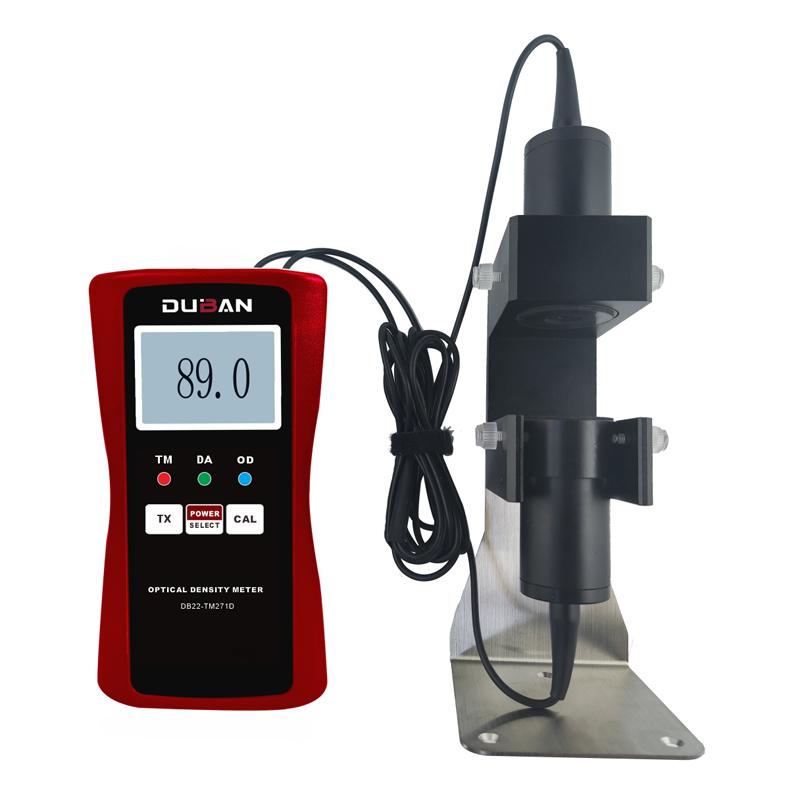

DB22-TM271D

Optical density meter

Light transmitance Measurement accuracy +/- 2% (1% - 100%), optical density Measurement range 0.00 OD - 6.00 OD, dot area rate Measurement range 0-- 100%, optical density resolution 0.01 OD, Measurement accuracy 0.02 (0 - 2.00 OD )/ +/- 2% (2.00 - 6.00 OD), light transmitance resolution 0.1, Light source LED Light source, aperture size 5mm.

Introduction

Optical densitometer is mainly used to measure the optical density and transmittance value of materials, and is mainly suitable for the measurement of the following three types of materials:

1. Light transmittance of various diffuse transmission materials such as milky white, foggy, matte rough surface, etc

2. Absolute optical density, relative optical density, and dot area ratio measurement of various films

3. Absolute optical densitometry measurement of materials such as X-ray sheets, aluminum films, etc

Features

• It adopts the design of diffuse transmission light path to meet the test requirements of foggy materials.

• It is equipped with a holder and a bracket and two measurement methods at the same time.

• It can measure light transmittance, absolute optical density, relative optical density, and dot area ratio.

• It is suitable for optical density and transmittance testing of film, patterned glass, fog glass, ceiling lampshade, coating material, etc.

• It is suitable for production, quality inspection, inspection and other occasions.

Packing list：host X1, portable portable case X1, instruction manual X1, fixing bracket X1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
