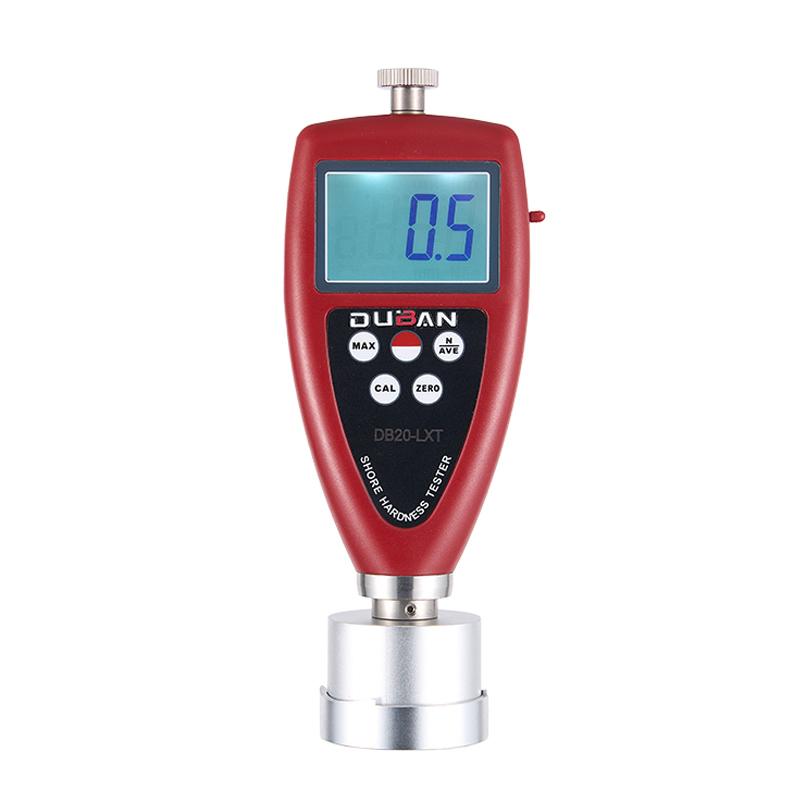

DUBAN DB20-LX-T5 Spinning & weaving Hardness Gauge
SEIndenter spherical 5mm φ, convertible probe Probe curved end for bobbin diameter less than or equal to 400mm
$471.00/set
PromotionLoading...
Coupon
Model：
DB20-LX-T5
Duban DB20-LX-T5 Spinning & weaving Hardness GaugeSPEC
Duban DB20-LX-T5 Spinning & weaving Hardness GaugeDetails

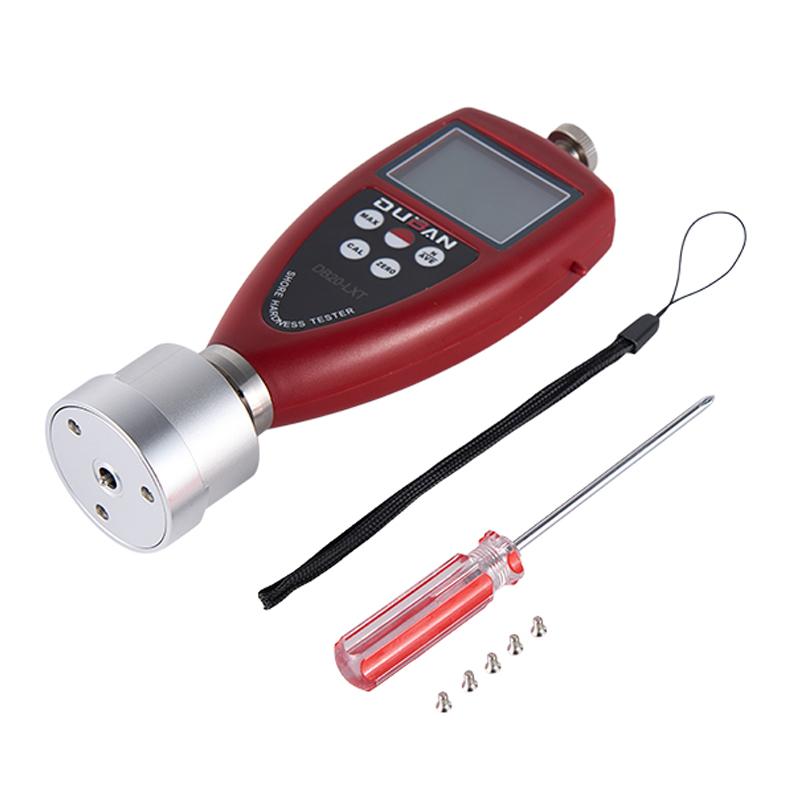

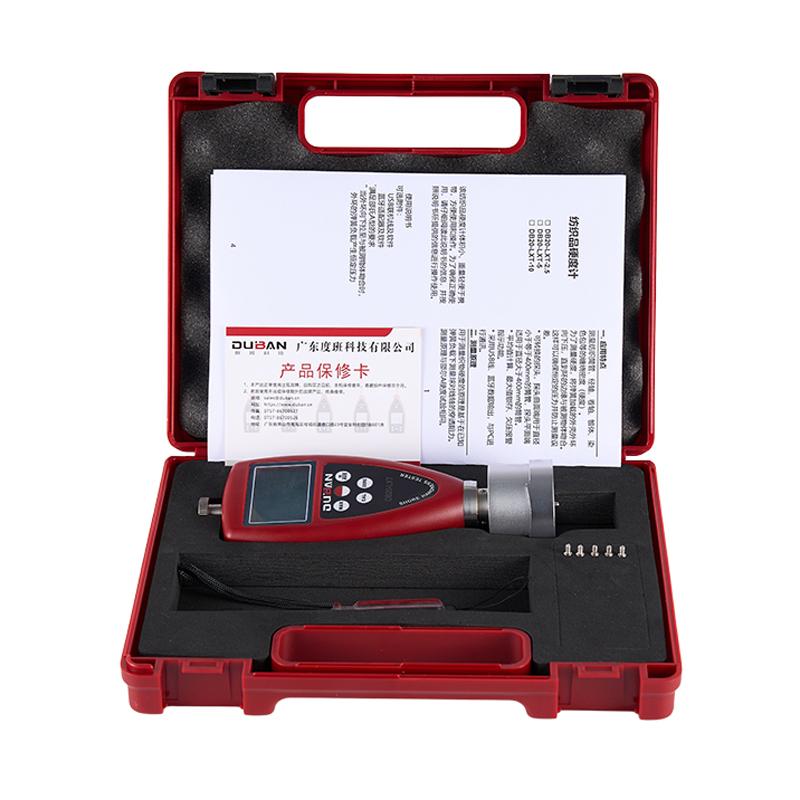

Duban DB20-LX-T5 Spinning & weaving Hardness GaugePacking list
- SKU
- NB047419
- display parameters
- Hardness/Average/MAX Maximum
- indenter
- Spherical 5mm φ
- Convertible probe
- The curved end of the probe is used for bobbins with a diameter of less than or equal to 400mm, and the flat end of the probe is suitable for bobbins with a diameter greater than 400mm
- Scope of application
- Synthetic fibre bobbins for loose winding and natural fibres, yarns and threads for tight winding
- Display range
- 0~100H (Hardness scale line)
- Measurement range
- 10~90H (Hardness scale line)
- Accuracy
- ≤±1H
- resolution
- 0.1H
- Low Voltage prompt
- √
- Automatic shutdown function
- √
- Indentation depth
- 0~2.5mm
- Measuring pressure **
- About 12.5N
- Measurement of spring force *
- 0.55~8.065N
- Head diameter
- 51mm
- Spherical radius of working face
- 55Mm (when measuring with probe curved end)
- working plane
- 45Mm φ (when measuring with probe plane end)
- Operating Environment
- Temperature 0~40 ℃; Humidity < 80% RH

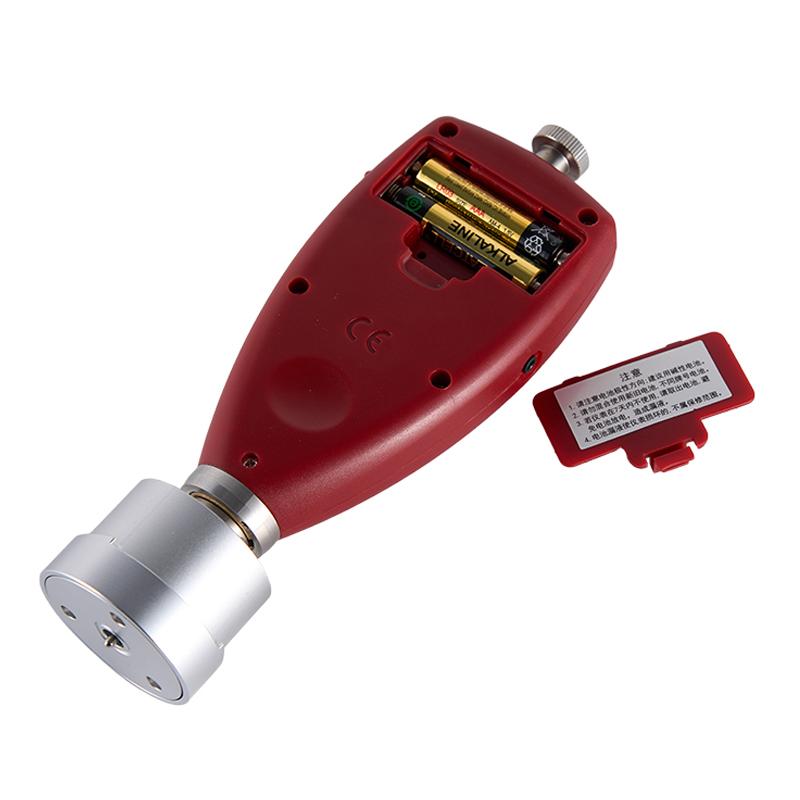

- Power Supply
- 2X1.5v AAA 7 batteries
- size
- 178x65x45 mm
- heavy yes
- 290G (without battery)
DB20-LX-T5
Spinning & weaving Hardness Gauge
Indenter spherical 5mm φ, convertible probe Probe curved end for bobbin diameter less than or equal to 400mm
DB20-LX-T seriesTextile Hardness Testers are used to measure the winding density (hardness) of textile bobbins, warp beams, reels, cones, dyeing bags, etc. The principle of measuring the hardness of fabrics is based on measurements under known spring loadsThe resistance of the ball to the spool of penetration.
Features

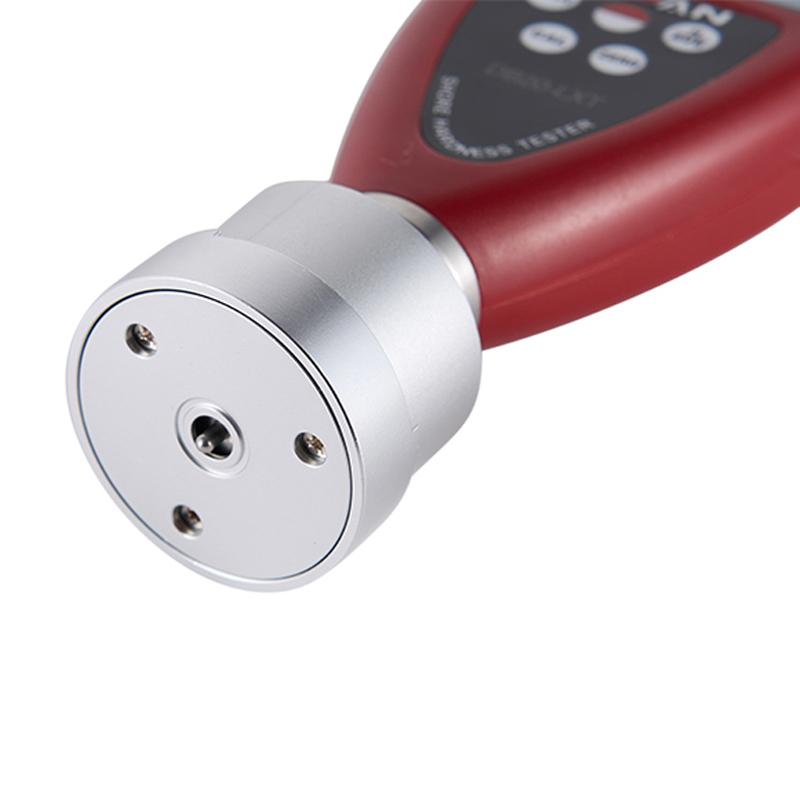

Convertible probes with curved probe ends for bobbins up to 400mm in diameter and flat probes for bobbins larger than 400mm in diameter.
Average value calculation, maximum value latching, and underVoltage alarm indication functions.
USB cable and Bluetooth data output are used to communicate with the PC.
