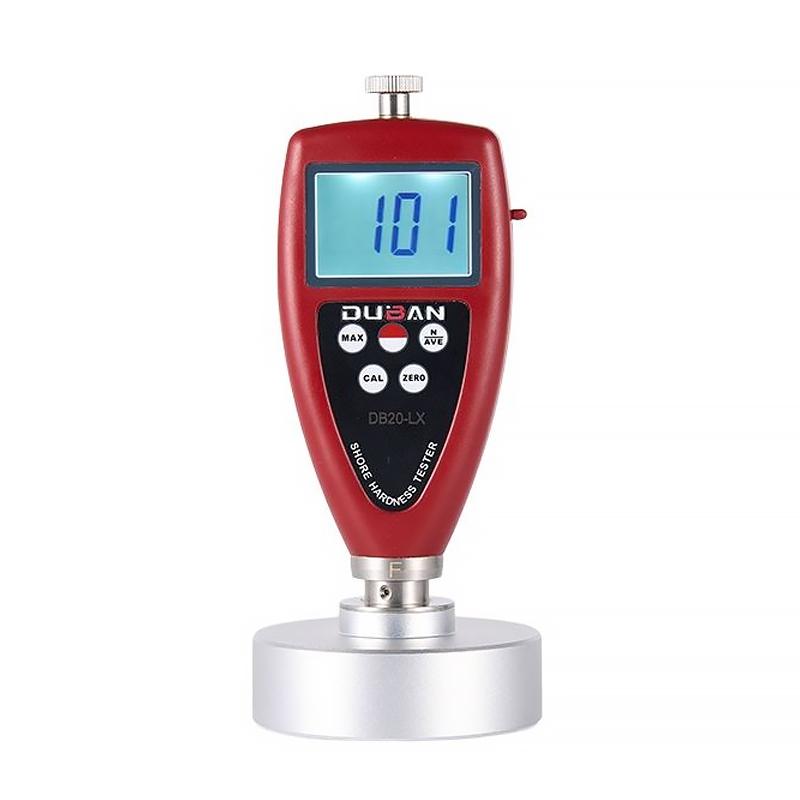

DUBAN DB20-LX-F sponge Hardness Gauge

DB20-LX-F

Sponge Hardness Gauge

Used to measure the Hardness of soft foam materials, rag dolls, pillows and polyurethane foam products. Display range 0~100 HF, test range 10~90 HF, resolution 0.1 HF, Measurement accuracy ≤ 1 HF.

The sponge Hardness Tester is mainly used to determine the hardness of soft foam materials, rag doll hardness, pillow hardness and polyurethane foam rubber products, this Hardness Tester is different from other Hardness Testers in terms of measurement and use.When in use, the presser foot is in direct contact with the specimen and uses its own weight as a force load.

Meets standards

"Test Method for Indentation Hardness of Rubber Pocket Hardness Tester" GB/T 531-1999, "Test Method for Shore Hardness of Plastics" GB/T 2411-80, other standards:DIN 53505 ISO868、ISO7619 ASTMD2240 JISK7215.

peculiarity

* Using computer technology, digital filtering technology and other advanced technologies, the thickness of the material can be accurately measured.

* Automatic indication when the battery Voltage is lower than the specified value.

* Digital display, no parallax.

* With the optional RS232C software and cable, it can communicate with the PC computer to realize the functions of data collection, processing, analysis and printing.

* Metric / Imperial unit conversion with average value calculation function.

* With automatic shutdown function, power saving.

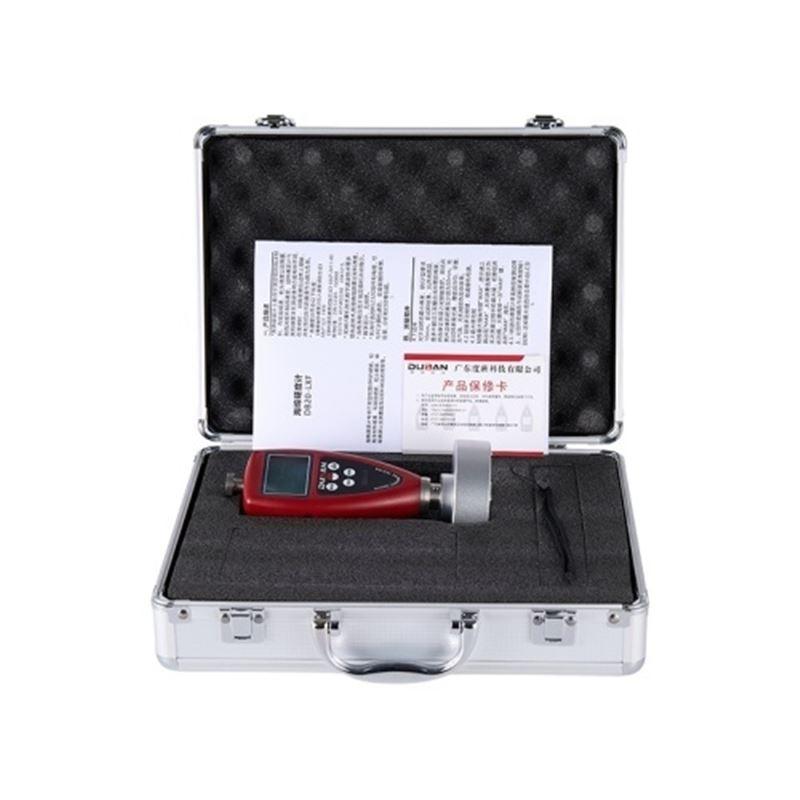

Packing list：Host X1, portable case X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
