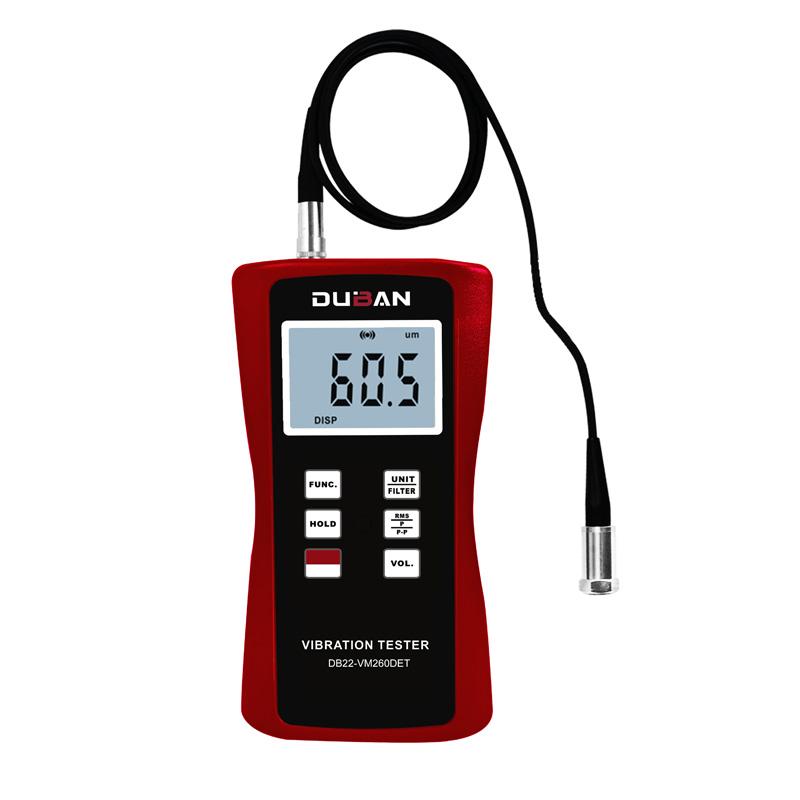

DUBAN DB22-VM260DET Vibrator, Piezoelectric Vibration Sensors Displacement 0.001~ 4.0mm

DB22-VM260DET

Vibrator

Precision +/- 5% + 2 words, Measurement range displacement D: 0.001~ 4.0mm (peak-peak P-P); Speed V: 0.01~ 400.0 mm/s (true RMS); Acceleration A: 0.1~ 400 m/s ² (peak P); Frequency: 1~ 20,000Hz;, Detector optional Detector, Frequency range displacement D: 5Hz~ 1KHz; Speed V: 5Hz~ 1KHz; Acceleration A: 5Hz~ 10KHz.

Introduction

A vibrometer is a specialized instrument used to measure and analyze the vibration of an object. It typically includes vibration sensors (such as accelerometers, speedometers, or displacement sensors), data acquisition systems, and associated software analysis tools. VibratIon Meters are able to measure the vibration parameters of an object in different axes, such as the frequency, amplitude and acceleration of vibration, as well as the time and frequency domain characteristics of vibration.

The DB22-VM260DET vibrometer is used for periodic motion measurements to detect imbalances and deviations in moving machinery. Designed for on-site measurement of a wide range of mechanical vibrations to provide data for quality control, uptime and prior equipment maintenance. Choose a high-performance accelerometer for accurate, reproducible measurements.

Features

• Compliant with international standards ISO2954 for periodic motion measurement to detect imbalances and deviations in moving machinery.

• Designed for on-site measurement of a wide range of mechanical vibrations to provide data for quality control, uptime and prior equipment maintenance.

• Wide frequency range, in acceleration mode, the frequency can reach 5-10KHz.

• Piezoelectric accelerometers are used to convert them into vibration signals.

• It has the function of bearing condition measurement.  With AC signal output, it is convenient for auscultation and recording.

• An optional headset can be used as a stethoscope.

• It uses "USB cable output" to communicate with the PC.

• Automatic range changeover.

Packing list：Host X1, magnetic suction seat X1, probe (tapered) X1, probe (spherical) X1, measurement Sensors X1, portable case X1, instruction manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
