DUBAN DB22-VM260A08 Vibrator, displacement D 0.001~ 8.0mm

SE
Measurement range Displacement D: 0.001~ 8.0mm (peak-to-peak P-P); Speed V: 0.01~ 800.0mm/s (true RMS); Acceleration A: 0.1~ 800 m/s ² (peak P); Frequency: 1~ 20,000Hz.
$515.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT OI

Duban DB22-VM260A08 VibratorSPEC

Duban DB22-VM260A08 VibratorDetails

Duban DB22-VM260A08 VibratorPacking list

SKU
NB047432
Measurement range
Displacement D: 0.001~ 8.0mm (peak-to-peak P-P); Speed V: 0.01~ 800.0mm/s (true RMS); Acceleration A: 0.1~ 800 m/s ² (peak P); Frequency: 1~ 20,000Hz
Frequency range
Displacement D: 5Hz~ 1KHz; Speed V: 5Hz~ 1KHz; Acceleration A: 5Hz~ 10KHz
operating conditions
Temperature: 0~50 ℃; Humidity: < 90%
output
2.0V AC load resistance 10k
size
140x77x32mm
Power Supply
4X1.5vAAA 7 batteries
Sensors
Piezoelectric Vibration Sensors
Precision
+/- 5% + 2 words
DB22-VM260A08
Vibrator
Measurement range Displacement D: 0.001~ 8.0mm (peak-to-peak P-P); Speed V: 0.01~ 800.0mm/s (true RMS); Acceleration A: 0.1~ 800 m/s ² (peak P); Frequency: 1~ 20,000Hz.

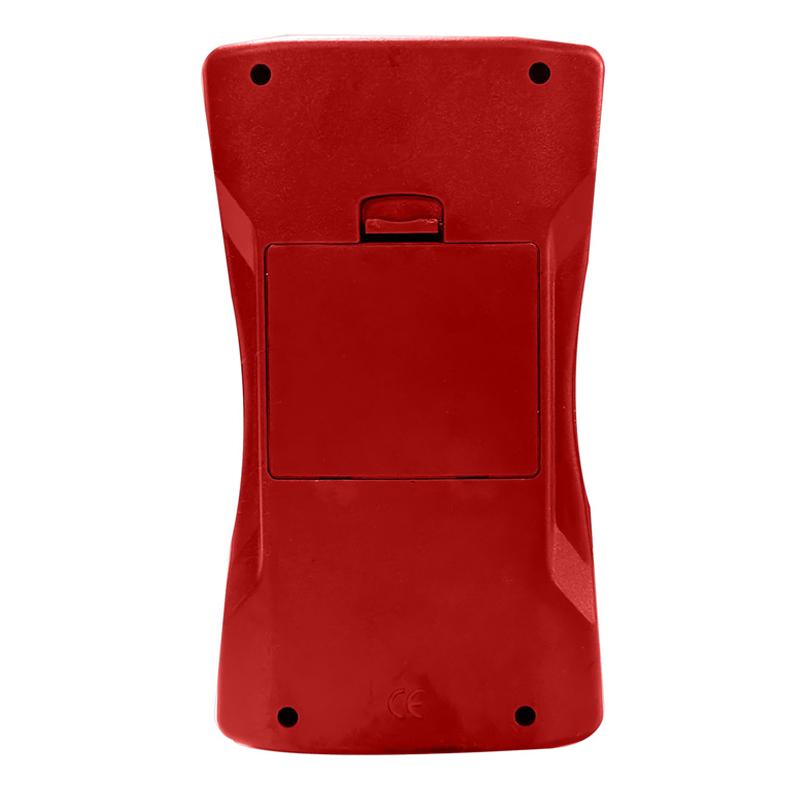

DUBAN DB22-VM260A08 Vibrator, displacement D 0.001~ 8.0mm Picture

Introduction

DB22-VM260A series vibrometers are used in periodic motion measurements to detect imbalances and deviations in moving machinery. Designed for on-site measurement of a wide range of mechanical vibrations to provide data for quality control, uptime and prior equipment maintenance. Choose a high-performance accelerometer for accurate, reproducible measurements.

Features

  • Compliant with international standards ISO2954 for periodic motion measurement to detect imbalances and deviations in moving machinery.

  • Designed for on-site measurement of a wide range of mechanical vibrations to provide data for quality control, uptime and prior equipment maintenance.

  • Wide frequency range, in acceleration mode, the frequency can reach 5-10KHz.

  • Piezoelectric accelerometers are used to convert them into vibration signals.

  • It has the function of bearing condition measurement.

  • With AC signal output, it is convenient for auscultation and recording.

  • An optional headset can be used as a stethoscope.

  • It uses "USB cable output" to communicate with the PC.

Serial models

ModelDB22-VM260ADB22-VM260A8DB22-VM260A12DB22-VM260A16DB22-VM260A20
Measuring rangeDisplacement D: 0.001~4.0mm (peak-peak P-P)Displacement D: 0.001~8.0mm (P-P)Displacement D: 0.001~12.0mm (peak-peak P-P)Displacement D: 0.001~16.0mm (peak-peak P-P)Displacement D: 0.001~20.0mm (peak-peak P-P)
Speed V: 0.01~400.0mm/s (RMS)Speed V: 0.01~800.0mm/s (RMS)Speed V: 0.01~1200.0mm/s (RMS)Speed V: 0.01~1600.0mm/s (RMS)Speed V: 0.01~2000.0mm/s (RMS)
Acceleration A: 0.1~400m/s² (peak P)Acceleration A: 0.1~800m/s² (peak P)Acceleration A: 0.1~1200m/s2 (peak P)Acceleration A: 0.1~1600m/s² (peak P)Acceleration A: 0.1~2000m/s² (peak P)
Frequency: 1~20,000Hz
Frequency rangeDisplacement D: 5Hz~1KHz
Speed V: 5Hz~1KHz
Acceleration A: 5Hz~10KHz
Operating conditionsTemperature: 0~50°C
Humidity: <90%
output2.0V AC load resistance 10K
size140x77x32mm
power supply4x1.5v AAA7 battery
sensorPiezoelectric vibration sensors


FAQ
QThe fan equipment in our factory needs to be tested for vibration. Which vibrator should be selected?
A The DB22-VM260A08 Vibration Meter is recommended. It is designed for on-site mechanical vibration measurement and meets ISO 2954 standards to accurately detect fan imbalance and deviation. The wide frequency range is suitable for vibration analysis of swirl/spin equipment such as fans.
QCan this vibrator be used for bearing condition monitoring?
A Yes, the DB22-VM260A08 has a dedicated bearing condition measurement function, and with the 5-10KHz Acceleration Frequency range, it can effectively capture early bearing failure signals and provide reliable data for equipment preventive maintenance.
