DUBAN DB10-VC260 Vibrator calibrator Acceleration 10m/s ² (RMS) +/- 3%
SEFrequency 159.2Hz +/- 0.5%, Acceleration output 10m/s ² (RMS) +/- 3%, Speed output 10mm/s (RMS) +/- 3%, Alternative output 10um (RMS) +/- 3%, Transverse output < 5%, Deformation < 3%, Maximum load 150g, Heating time < 3 seconds, Operating Conditions Temperature: -10~40 ℃ Humidity: < 85% RH.
$677.00/set
PromotionLoading...
Coupon
Model：
DB10-VC260
Duban DB10-VC260 Vibrator calibratorSPEC
Duban DB10-VC260 Vibrator calibratorDetails
Duban DB10-VC260 Vibrator calibratorPacking list
- SKU
- NB047434
- Frequency
- 159.2Hz±0.5%
- Acceleration output
- 10m/s²(RMS)±3%
- Speed output
- 10mm/s(RMS)±3%
- alternate output
- 10um(RMS)±3%
- lateral output
- <5%
- deformation
- <3%
- Maximum load
- 150g
- Heating time
- < 3 seconds
- Operating Conditions
- Temperature: -10~40 ℃ Humidity: < 85% RH
- Power Supply
- 1 9V battery
- Dimensions (diameter x height)
- 56x200mm
- Weight
- 900G (including battery)
DB10-VC260
Vibrator calibrator
Frequency 159.2Hz +/- 0.5%, Acceleration output 10m/s ² (RMS) +/- 3%, Speed output 10mm/s (RMS) +/- 3%, Alternative output 10um (RMS) +/- 3%, Transverse output < 5%, Deformation < 3%, Maximum load 150g, Heating time < 3 seconds, Operating Conditions Temperature: -10~40 ℃ Humidity: < 85% RH.

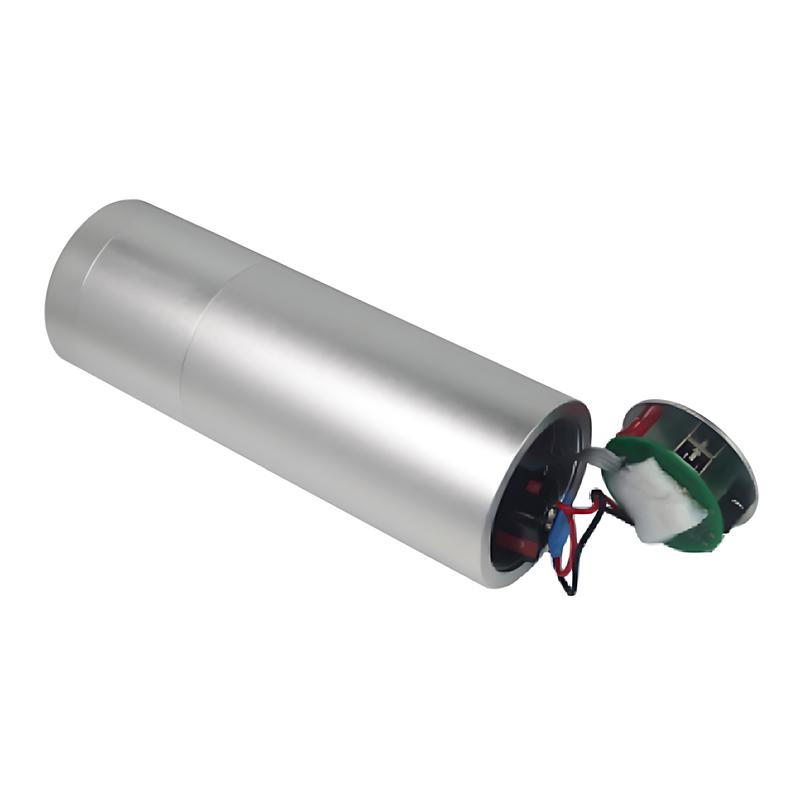

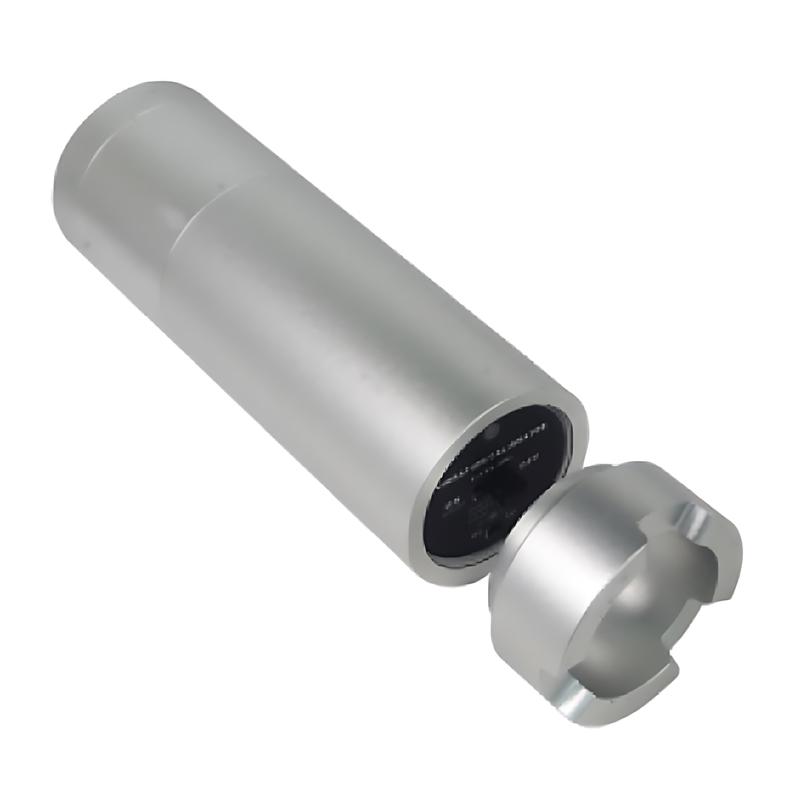

Introduction
The DB10-VC260 Vibration Meter Calibrator is a small, self-contained, hand-held shaker designed for quick and easy inspection of accelerometers, vibration monitoring systems, and recording systems. A known and controllable rms vibration accelerometer weighing up to 150g is provided for verification.
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
