JINGRUI SX2-4-13G Box-Type Resistance Furnace 1300 ℃ design temperature Heating power 4KW

JINGRUI SX2-4-13G Box-Type Resistance Furnace, also known as muffle furnace, is a Heating power of 4KW, design temperature of 1300 ℃ high temperature heater, SX2-4-13G Box-Type Resistance Furnace is the use of silicon carbon rod heating element.
Model：
Certificate
Contact
Details SPEC
Similar products

JingRui SX2-4-13G Box FurnaceSPEC

JingRui SX2-4-13G Box FurnaceDetails

JingRui SX2-4-13G Box FurnacePacking list

SKU
NB004744
maximum temperature
1300℃
Temperature range
≤1200℃
Heating Elements
silicon carbide rod
Furnace Volume
3.7L
Heating power
4KW
Temperature control Accuracy
±1℃
Heating rate
≤15℃/min
Temperature control instrument
Ordinary temperature Controller
Thermocouple
S-type Thermocouple
Furnace size
250*150*100mm
Power supply Voltage
AC220V 50Hz
Dimension
670*580*710mm
SX2-4-13G
Box Furnace

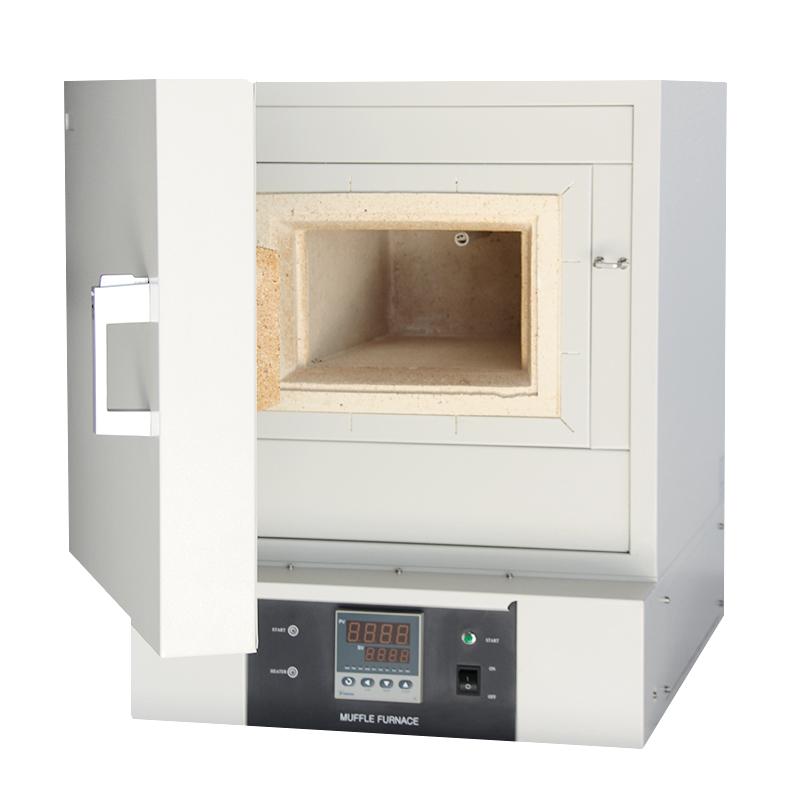

JINGRUI SX2-4-13G Box-Type Resistance Furnace 1300 ℃ design temperature Heating power 4KW Picture

Box-type Resistance FurnaceIntroduction

Elite SX2-4-13G box-type Resistance Furnace, also known as muffle furnace, is a box-type Resistance Furnace with a heating power of 4KW and a design temperature of 1300°C. The door structure of the elite chamber Resistance Furnace makes it technically and fully sealed.

Advantages

1、SX2-4-13G box-type Resistance FurnaceIt adopts an integrated ordinary furnace, which is economical and beautiful.

2. The Resistance Furnace adopts a comprehensive closed furnace door type, which can avoid the loss of temperature in the furnace and maintain a constant temperature.

3. Safety design in place. When the furnace door is opened, the furnace door safety switch system will automatically cut off the power to ensure the safety of users.

4. The PID intelligent thermostat not only has high accuracy, but also has the functions of fault self-diagnosis and self-tuning.

5. 60-stage programmed heating and single-point heating mode, the heating rate can be freely controlled by the real-time display of the heating curve.

6、SX2-4-13G box-type Resistance FurnaceThe design temperature is 1300°C.

Product display diagram

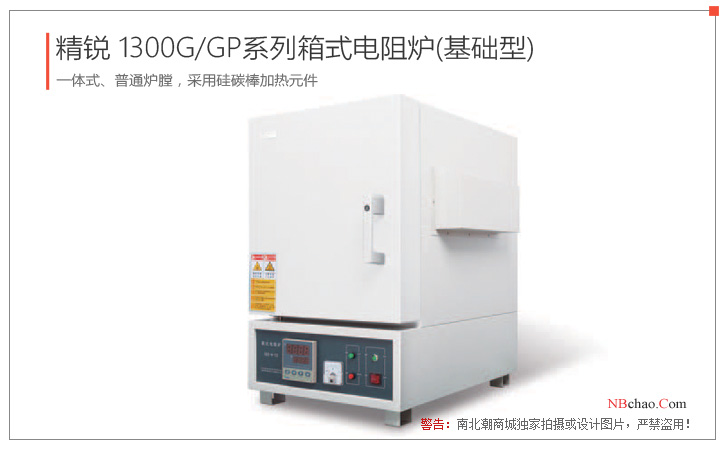

Overall diagram of SX2-4-13G box-type Resistance Furnace

Box Resistance Furnace SX2-4-13G/Overall view of SX2-6-13GP

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
