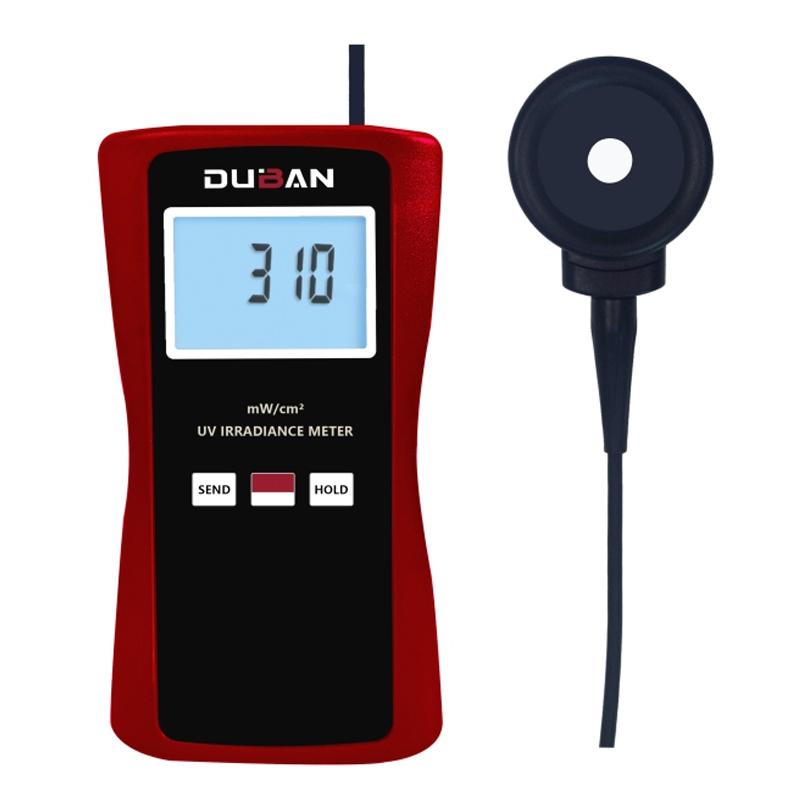

DUBAN DB22-UVV420 UV Irradiometer, Peak 420nm
SE
DB22-UVV420
Duban DB22-UVV420 UV IrradiometerSPEC
Duban DB22-UVV420 UV IrradiometerDetails
Duban DB22-UVV420 UV IrradiometerPacking list
- SKU
- NB047471
- peak
- 420Nm (bottom width 395-445)
- display
- LCD screen
- Power Measurement range
- 2.000mW/20.00mW/200.0mW/cm²
- Measurement Accuracy
- ±5 %
- resolution
- 0.1 mW/cm²
- Standard line
- The line length is 1 meter, and the extension must be customized.
- Sampling time
- About 0.5 seconds
- temperature
- 0-50℃ 32-122F)
- Humidity
- Less than 80% RH
- Weight
- About 200g (including battery)
- size
- Host: 140x77x32 mm Sensors: 59x φ 58mm
- Power Supply
- 4 AA batteries
- Standard
- Host instruction manual portable box
- optional
- Bluetooth adapter and software, RS-232
Introduction
DB22-UV series ultraviolet irradiator has undergone strict correction of spectral and angular characteristics, with stable performance and strong applicability. The instrument is suitable for ultraviolet irradiance measurement in the fields of sterilization, photolithography, ultraviolet germicidal lamp, mosquito killer lamp water treatment, mosquito killer lamp, shoe factory, leather goods factory, medical treatment, breeding and other fields.
Features
The spectral and angular characteristics are strictly corrected and have good stability;
Using microcomputer technology, low power consumption and high precision;
Digital LCD screen display, backlit operation;
The number has a hold function, Hold key, lock data, easy to record and compare* The instrument comes with a USB cable that can be directly connected to the computer USB port (optional).
Serial models
| Model | peak | use |
| DB22-UVA | 365±5nm (315 - 400 bottom width) | Sun, insect trap, UVALED curing, mercury lamp |
| DB22-UVB | 297±5nm (280 - 315 bottom width) | Sun, anti-smack, breeding, plants, mites, UVCLED germicidal lamp |
| DB22-UVC | 254±5nm (200 - 280 bottom width) | Hospital disinfection lamps, water treatment sterilization mercury lamps |
| DB22-UVA340(UVA+UVB) | 340(290-390) | The sun, anti-squeezing, mosquito trapping |
| DB22-UVV395(UVA+UVV) | 395(340-420) | UVALED curing |
| DB22-UVV420 | 420(395-445) | UVALED curing, halogen lamp, gallium lamp, black light |
| DB22-UVFull | 365(200-400) | general |
| DB22-UVA/B/C/UVV | (315-400)(280-315) Ultraviolet multi-band (200-280) (340-420) | general |
