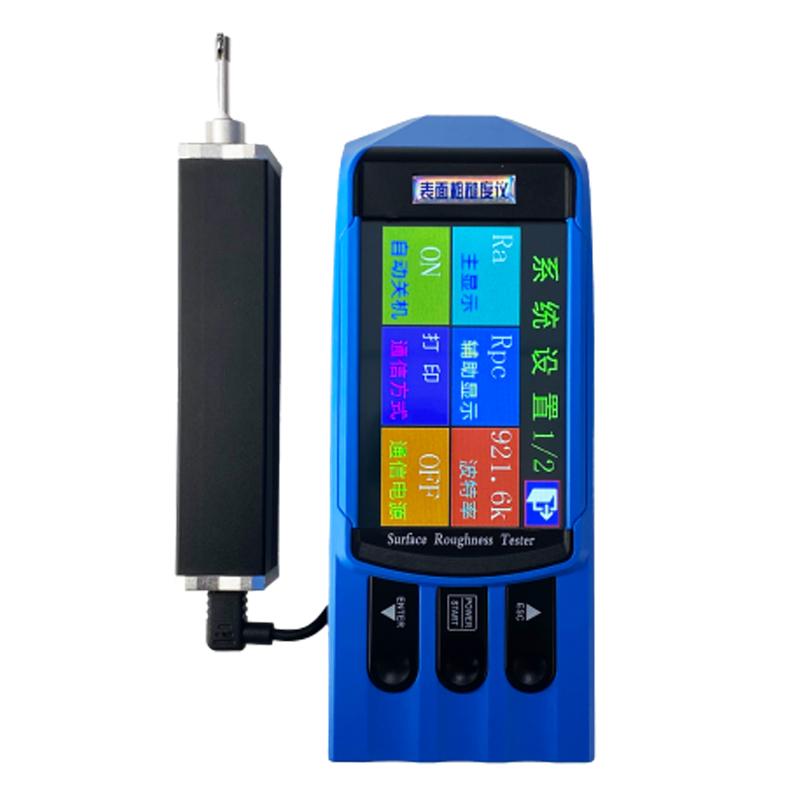

KAIRDA NDT161 surface roughness Tester, contact asperity Tester

SE
Measurement range Z-axis (vertical): 320μm (-160μm~ 160μm)/Ra (0.005-32um) Rz (0.02-320); X-axis (horizontal): 17.5mm (0.69inch), Sensors Measurement principle: displacement type differential electrical stylus: diamond, 90 taper angle, 5μm tip radius force: stylus force: 4mN; guide force: < 400mN guide: carbide.
$1159.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con

KairDa NDT161 Surface roughness meterSPEC

KairDa NDT161 Surface roughness meterDetails

KairDa NDT161 Surface roughness meterPacking list

SKU
NB047487
Measurement range
Z axis (vertical): 320μm (-160μm~ 160μm)/Ra (0.005-32um) Rz (0.02-320); X axis (horizontal): 17.5mm (0.69inch)
Resolution Z axis (vertical)
0.002μm/±20μm；0.004μm/±40μm；0.008μm/±80μm；0.02μm/±160μm
Measurement parameter
Ra、Rz、Rq、Rt、Rc、Rp、Rv、R3z、R3y、Rz(JIS)、Ry、Rs、Rsk、Rku、Rmax、Rsm、Rmr、Rpc、Rk、Rpk、Rvk、Mr1、Mr2
standard
IS04287 international standard; ANSIB46.1 American standard; DIN4768 German standard; JISB601 Japanese standard
graphics
Linear dispersion, asperity original profile, filtered waveform
filter
RC,PC-RC,Gauss,D-P
Sampling length (h)
0.25,0.8,2.5mm
Rating Length (In)
Ln=Ir×n，n=1~5
Sensors
Measurement principle: displacement type differential electric stylus: diamond, 90 taper angle, 5μm tip radius force measurement: stylus force measurement: 4mN; guide head force measurement: < 400mN guide head: carbide, sliding direction radius 40mm sliding speed: Ir = 0.25, Vt = 0.135mm/s; Ir = 0.8, Vt = 0.5mm/s; Ir = 2.5, Vt = 1mm/s; return Vt = 1mm/s
Indication Accuracy
0.001μm
Power Supply
Built-in lithium-ion rechargeable battery, charged with DC5V, 800mA charger
Dimension
Host: 64 * 53 * 160mm Driver: 23 * 27 * 115mm
Weight (host)
About 380g
Operating Environment
Temperature: -20 ℃~ 40 ℃ Humidity: < 90% RH
Storage and transportation environment
Temperature: -40 ℃~ 60 ℃ Humidity: < 90% RH
NDT161
Surface roughness meter
Measurement range Z-axis (vertical): 320μm (-160μm~ 160μm)/Ra (0.005-32um) Rz (0.02-320); X-axis (horizontal): 17.5mm (0.69inch), Sensors Measurement principle: displacement type differential electrical stylus: diamond, 90 taper angle, 5μm tip radius force: stylus force: 4mN; guide force: < 400mN guide: carbide.
KAIRDA NDT161 surface roughness Tester, contact asperity Tester Picture

NDT161 surface roughness Tester has a large touch screen, which meets ISO, DIN, ANSI, JIS and other standards; Large color display, DSP control and data processing, Bluetooth interconnection APP, wireless connection to printers, hundreds of sets of data storage, anti-motor death software/hardware design.

Features

  • The small surface roughness Detector is as simple as a hand tool, with a split design, consisting of a main unit, a driver, and a sensor, which can measure the roughness of the inner wall of the pipe with an inner diameter greater than 40mm, and the extension cable can be increased from 1 meter to 3 meters.

  • It is equipped with a 3.5-inch high-resolution color touchscreen display with a backlight. Dual operation of touch screen and buttons, suitable for various application environments, WIN10 style, simple and clear.

  • In addition to the calculation results, the evaluation curve and other curve display functions can also display the calculation results of each interval, such as the evaluation curve, the load curve, and the amplitude distribution curve.

  • USB high-speed communication, Bluetooth APP operation, external Bluetooth printer, SD card, large-capacity data storage function.

  • The trench sensor is equipped as standard, which meets more than 90% of the measurement needs.

FAQ
QI want to measure the asperity of the inner wall of the pipe, is there any recommended instrument?
A KAIRDA NDT161 surface roughness instrument is recommended, it adopts split design, Sensors can extend into the inner wall of the pipeline with an inner diameter greater than 40mm for measurement, and the standard 1-meter extension cable can be extended to 3 meters, which is suitable for the detection scene of the inner wall of the pipeline.
QIs there a Roughness Gauge with Data storage and wireless printing?
A Recommended NDT161, built-in hundreds of data storage, support USB and Bluetooth connection, can directly wirelessly connect the printer to output reports, but also through the mobile app operation, efficient data management.
