China

JINGKELIAN DBJ electric cupping instrument, digital touch screen accuracy 0.01mm

SE
Test plate size 75mm × 150mm × 0.03mm-3mm, indentation diameter 20mm, indentation maximum 18mm, indentation accuracy 0.01mm, digital Graduation 0.01mm, punch maximum stroke 18mm, indentation speed 0.1-0 mm/s adjustable.
$3771.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

JingKeLian DBJ Electric cupping deviceSPEC

JingKeLian DBJ Electric cupping deviceDetails

JingKeLian DBJ Electric cupping devicePacking list

SKU
NB047503
Test board specification
75mm×150mm×0.03mm-3mm
indentation diameter
20mm
indentation maximum
18mm
Sinking Accuracy
0.01mm
Punch maximum stroke
18mm
indentation rate
0.1-0 mm/s adjustable
DBJ
Electric cupping device
Test plate size 75mm × 150mm × 0.03mm-3mm, indentation diameter 20mm, indentation maximum 18mm, indentation accuracy 0.01mm, digital Graduation 0.01mm, punch maximum stroke 18mm, indentation speed 0.1-0 mm/s adjustable.

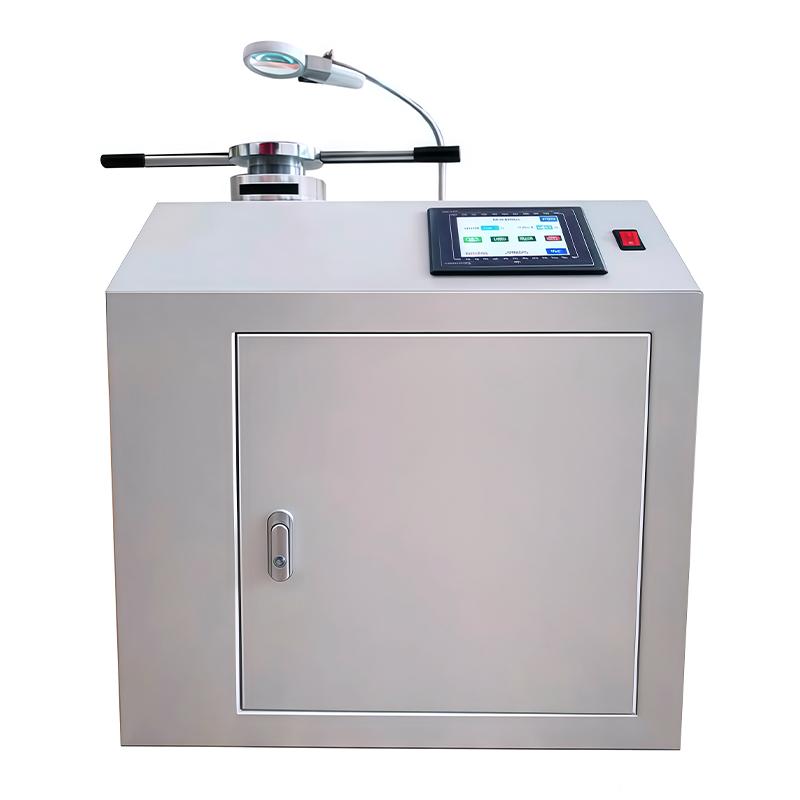

JINGKELIAN DBJ electric cupping instrument, digital touch screen accuracy 0.01mm Picture


Introduction

DBJ electric cupping instrument is mainly composed of four parts: film pressing parts, variable speed parts, frame parts and depression value digital display parts.Using high-torque stepper motor, automatic reset to zero, no cumulative error, touch screen control display depression depth value.

The QBJ cupping Tester designed according to the international standard ISO1520 and the national standard GB/T9753-88 is suitable for evaluating the performance of the coating (single layer or supporting system coating) of pigment paint, varnish and related products after it is gradually deformed under standard conditions, and its resistance to cracking or separation from metal substrate. The test can be carried out according to the specified indentation depth to evaluate whether the coating passes or fails. The depth of indentation can also be gradually increased to determine the minimum depth at which the coating has just cracked or begun to detach from the substrate.


FAQ
QWhat materials is this cupping machine suitable for testing?
A It is suitable for coating testing of Paints, varnishes and related products, including single-layer or supporting coating systems, which can test metal panels with Film thickness 0.03-3 mm, and evaluate whether the coating cracks or breaks off the substrate by simulating deformation.
QWhy choose this electric cupping machine instead of a manual one?
A Because the DBJ is driven by a stepper motor, the indentation speed is adjustable, and there is no error in automatic zeroing. Touchscreen directly displays the depth value, and the operation is more accurate and convenient. It is suitable for scenarios that require repeability testing and quality control.
QWhat instrument should be used to test the cracking performance of coatings during deformation?
A It is recommended that you use the DBJ cupping instrument. It is designed according to the international standard ISO1520 and the national standard GB/T9753-88, and is specially used to evaluate the cracking resistance of coatings under gradual deformation or the separation performance from the substrate. The indentation depth test can accurately determine whether the coating is qualified or the minimum depth of failure.
QWhat common application scenarios is this cupping machine suitable for?
A The JINGKELIAN DBJ electric cupping machine is commonly used for mass testing of coatings for Paints, varnishes and related products, such as coatings in the automotive, home appliance or construction industries. It simulates the deformation of coatings in actual use, helping you quickly assess the durability and adhesion of coatings to ensure that products meet industry standards.
