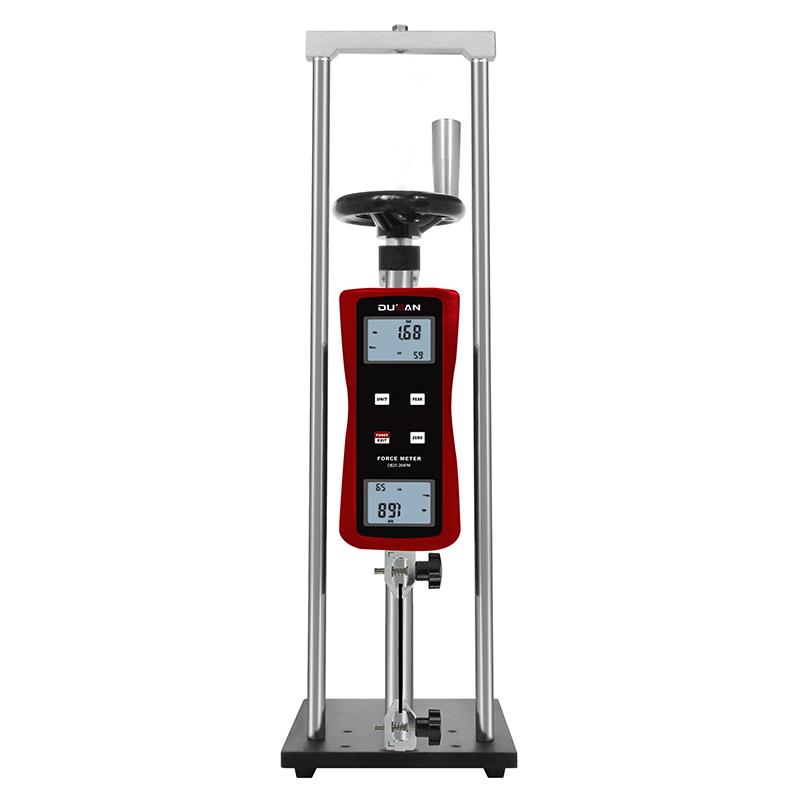

DUBAN UTTM4-DB25-204FM-2N Universal Tensile Tester Range +/- 4.9N

UTTM4-DB25-204FM-5N

Tensile Tester

Measurement range +/- 4.9N, 0.5 Precision, accuracy +/- 0.5% FS (range) +/- 1 digital peak, with N (Newton), kg (kg), lb (lb), g (g) four measurement units.

Introduction

Universal Tensile Testing Machine is a small, simple, multi-functional and high-precision thrust and tensile testing instrument, which is widely used in electronic appliances, building hardware, light industry textiles, auto parts, lighters and other ignition devices, fire-fighting equipment, pen-making, lock-making, fishing gear, chemical industry, power machinery, scientific research institutions and other industries of push-pull load, plugging and pulling force testing, destructive testing, etc.

Features

• High precision and high resolution. Digital display, no parallax.

• N (Newton), kg (kilogram), lb (pound), g (gram) four units of measurement can be selected and converted to each other.

• Peak hold function. Hold the peak display until it is manually cleared.

• It can be set to automatically shut down for 10 minutes without operation; It is also possible to shut down manually.

• Can be powered by alkaline batteries; It can also be connected to a 5V DC power supply.

Product structure diagram

Operation buttons

4-13 UNIT KEY: IT IS A UNIT CONVERSION KEY AND IS USED FOR UNIT CONVERSION OPERATIONS.

4-14 POWER/EXIT: It is the power on/off key, the return button in data browsing mode, or the operation button to bring up the auto-shutdown setting.

4-15 Peak Button (PEAK): It is the key to convert the peak hold mode to the real-time measurement mode.

4-16 Zero Calibration Button (ZERO): The operation button for instrument zero calibration.

Selectable measuring ranges

2N、5N、10N、20N、50N、100N、200N、500N、1KN

Scope of use

Terminals, wires,Rope, plastic, film, rubber,Fabrics, fishing lines, masks, etc

Packing list：Host X1, portable case X1, instruction manual X1, Force Gauge bracket X1, fixture X2

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
