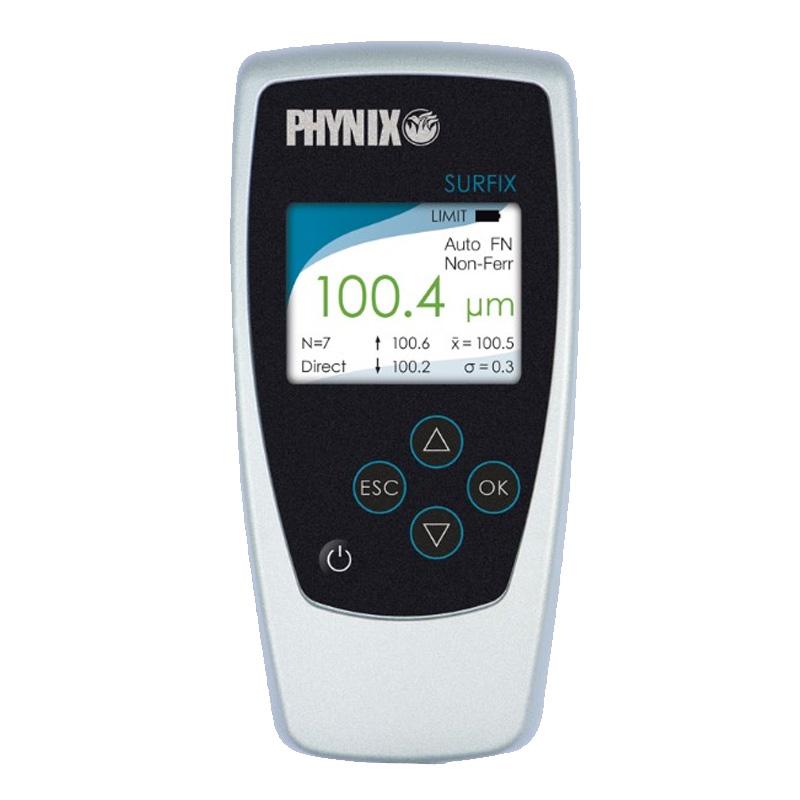

PHYNIX Surfix SX-N1.5A split probe Coating Thickness Gauge Measurement range 0-1500a

Sophia Surfix SX-N1.5A

Split type probe Coating Thickness Gauge

Measurement range 0-1500um, Accuracy +/- (1um + 1%), minimum headroom height 85mm, minimum sample diameter 6mm, Calibration method factory calibrated, zero calibrated, memory 1000, data transfer USB2.0, statistical functions n, x, s, min., max, Kvar, cp, cpk.

Sophies Surfix SX-N1.5A Split Micro Transducer Coating Thickness Gauge is a coating Thickness Gauge produced in Phoenix, Germany, external separation probe, eddy current measurement principle, suitable for testing non-magnetic metal substrates, with automatic identification function.

All measuring probes of the Sophis Surfix SX-N1.5A Split Micro Transducer Coating Thickness Gauge are made of tungsten carbide, which means it has a high service life. The front end is designed with a V-groove for measuring cylindrical or curved coatings, and is equipped with a probe cap to stabilize the coating on the measuring plane. Whether for users who need to measure coating thickness in an easy way or for statistical evaluation, the Surfx® Easy Series is a reliable instrument, a wear-free measurement and a high-quality product "Made in Germany".

Features

• Calibration-free measurements;

• Online statistics (n, x, s, min, max);

• Large contact surface to ensure accurate positioning;

• Sound signals are emitted during measurement;

• Switchable μm/mils ;

• Manufacturer's factory test certificate;

• The measuring probe is small and the measurement is stable;

• No calibration is required, and statistical parameters such as measured values and average values can be realistic;

• It is suitable for high-speed rail, powder coating, paint workshop, automobile, shipbuilding, building materials industry and other fields;

• The probes are made of cemented carbide and are wear-resistant.

Application

It is mainly used for final inspection and quality control of production processes such as paint shops, paint and powder coating processes, automobile evaluation and automobile repair shops, aluminum oxide layers, and laboratory and field tests such as conformal coating for circuit boards. Measure the thickness of all non-conductive layers on non-ferromagnetic metal substrates such as copper, aluminum, stainless steel, etc., such as: paints, powders, various anti-corrosion coatings, plastics, rubber, synthetic materials, phosphate layers, oxide layers, etc.

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
