TQC SP1700 Single Cross Hatch Cutter Set CC2000 Series

SP1700

Single Cross Hatch Cutter

11 teeth, cutter tooth spacing 1.5mm, instrument material vacuum hardened stainless steel, aluminum, rubber, application standard ASTM D3359-2009, suitable for film thickness environment 50~125μm

Introduction

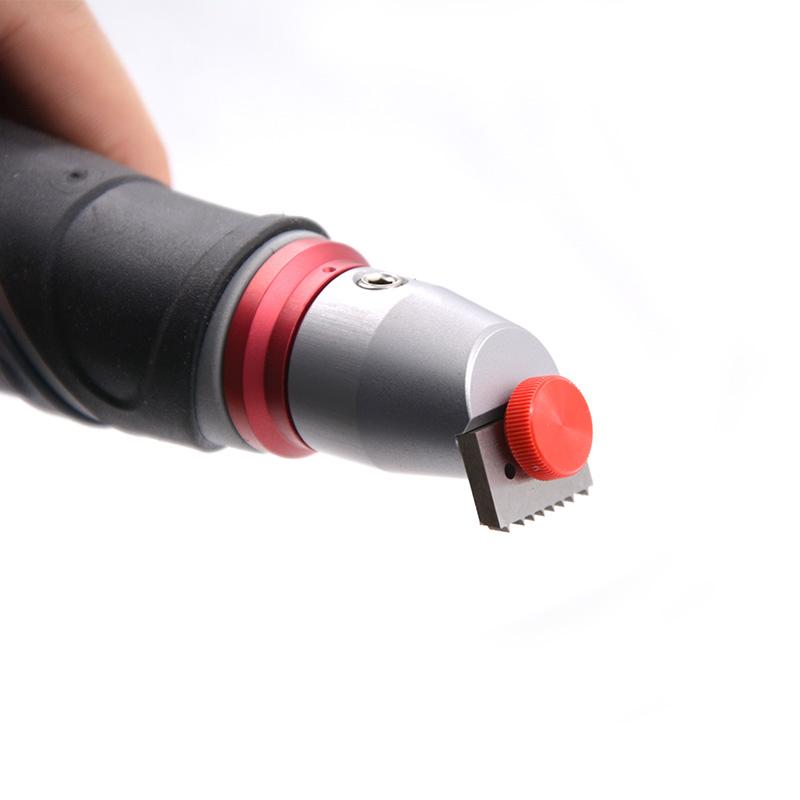

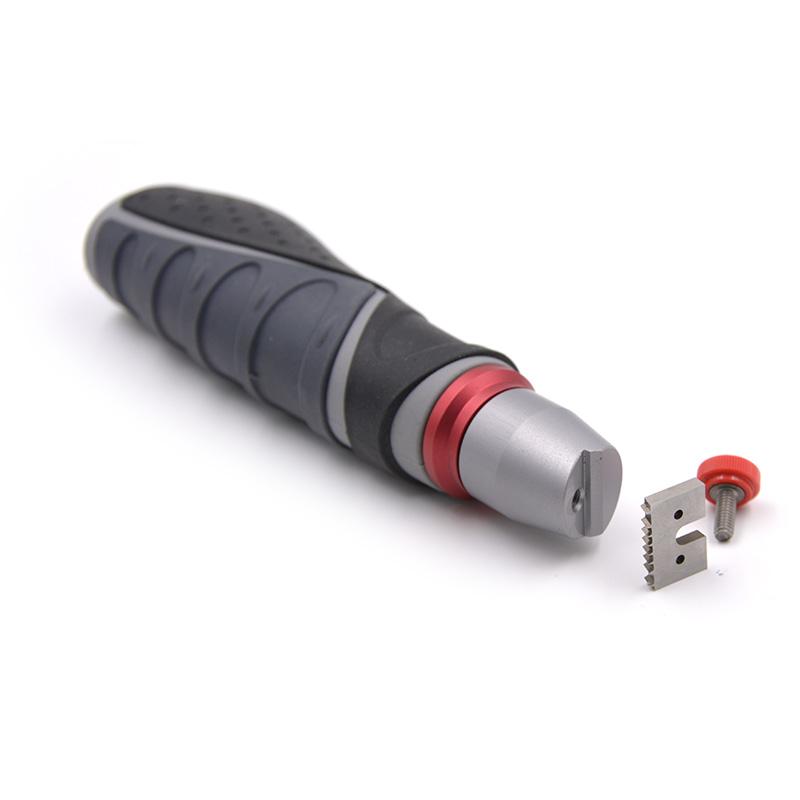

    The TQC CC2000 single cross-hatch adhesion Tester series includes five models: SP1690, SP1691, SP1692, SP1699, and SP1700. It has a holder design that can automatically adjust the blade and a rotating handle to balance the pressure on the blade without requiring additional The tool can be changed into a cutter. TQC's single scratcher is imported from the Netherlands and has tools that can be used to detect different coating film thicknesses and substrate adhesion according to standards. Each set of paint film adhesion Tester is composed of a lightweight and comfortable handle and a tough knife, and the specifications are easy to carry. Also includes brushes, small magnifying glass, and tape.

Related supporting products [need to be purchased separately]

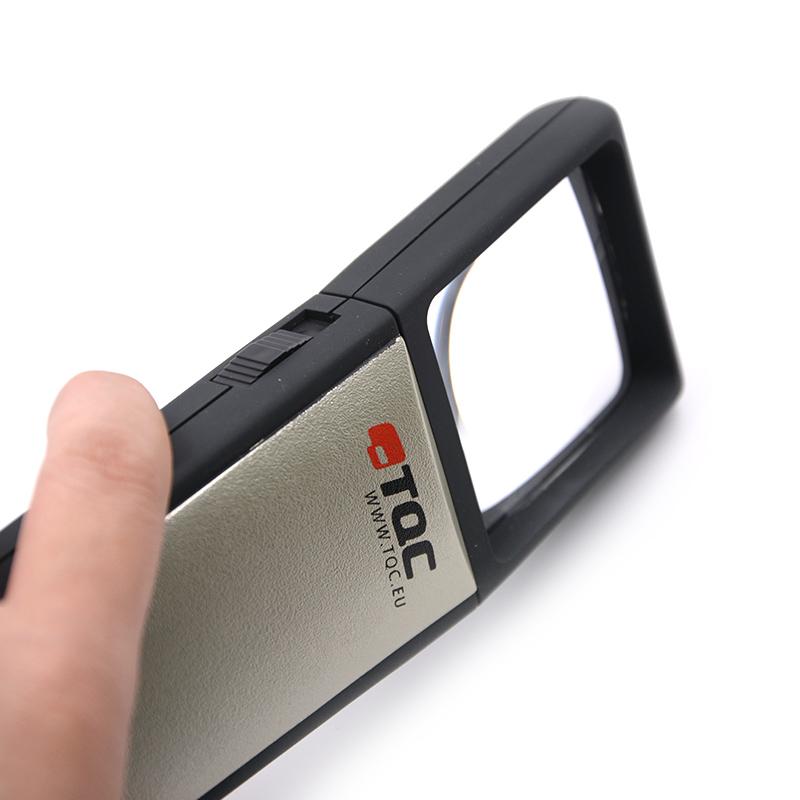

SP9700 illuminated magnifying glass 2.5x

SP1710 nylon brush for adhesion testing

SP3010 tape, three rolls, adhesion 4.3 N/cm

SP3020 tape, one roll, adhesion 7.6 N/cm

SP3007 tape, one roll, adhesion 4.3 N/cm

Principle of cross-hatch experiment

The TQC brand paint adhesion Tester uses the cross-hatch method - the internationally recognized most simple and effective test method for testing adhesion. The adhesion of a sample can be quickly measured by simply making a series of different cuts on the dry coated paint on the substrate.

Simply put, the cross-hatch method is to use a row of 6/11 blades between the two outer conductors of the adhesion Tester to cut out two perpendicularly intersecting parallel lines to obtain 25 or 100 squares, and then in the area where the parallel lines intersect Use followed by a short treatment with a stiff brush or tape treatment on hard substrates to assess adhesion.

Product details

Comparison table of full range of adhesion Tester models

Take you into the Dutch TQC

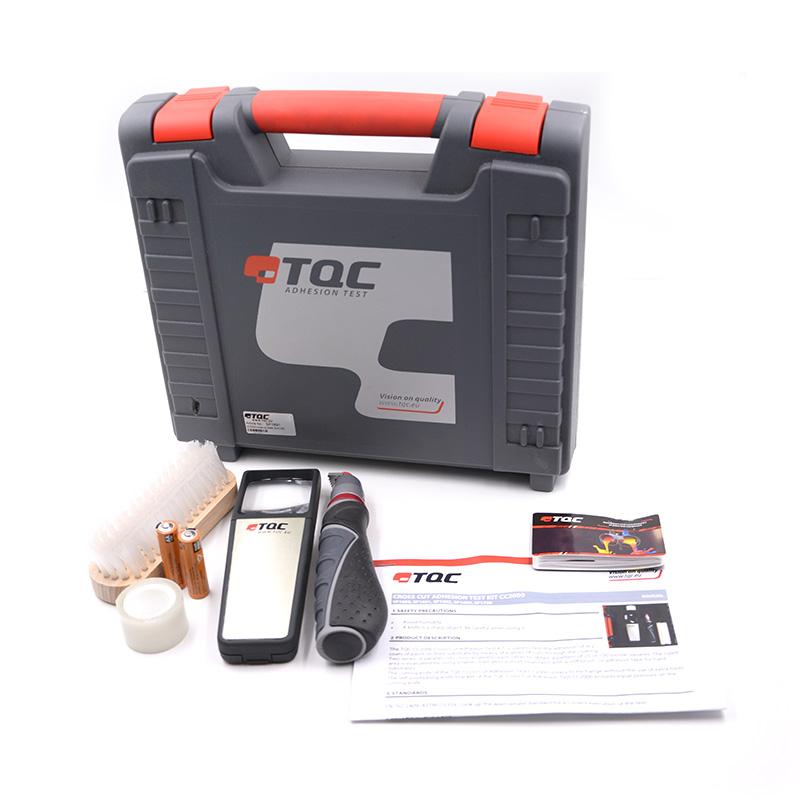

Packing list：Cross Hatch Cutter (including steel knife, handle) x1, magnifying glass x1, tape x1, brush x1, manual x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
