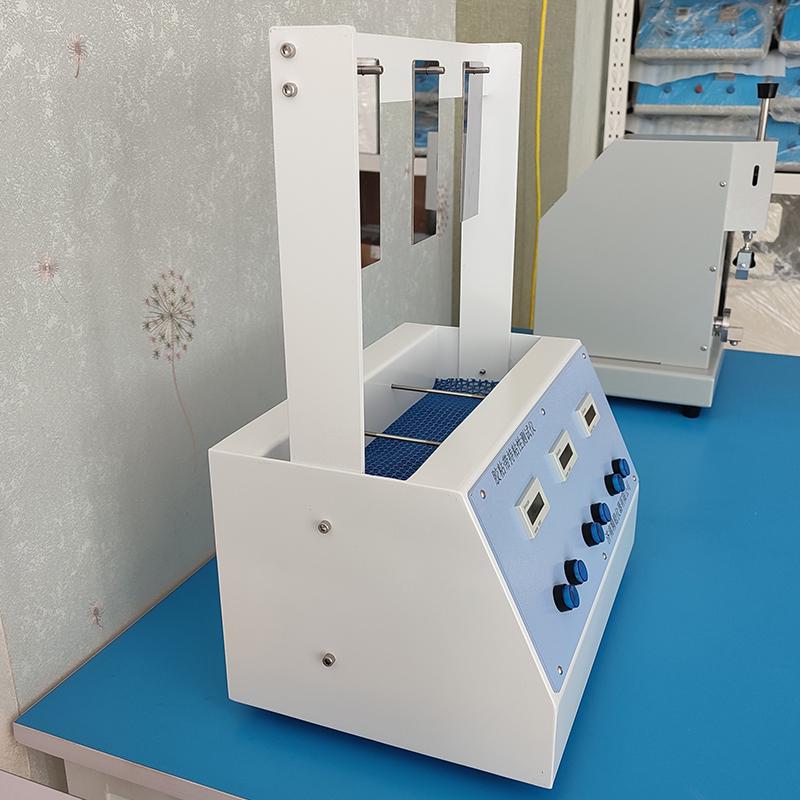

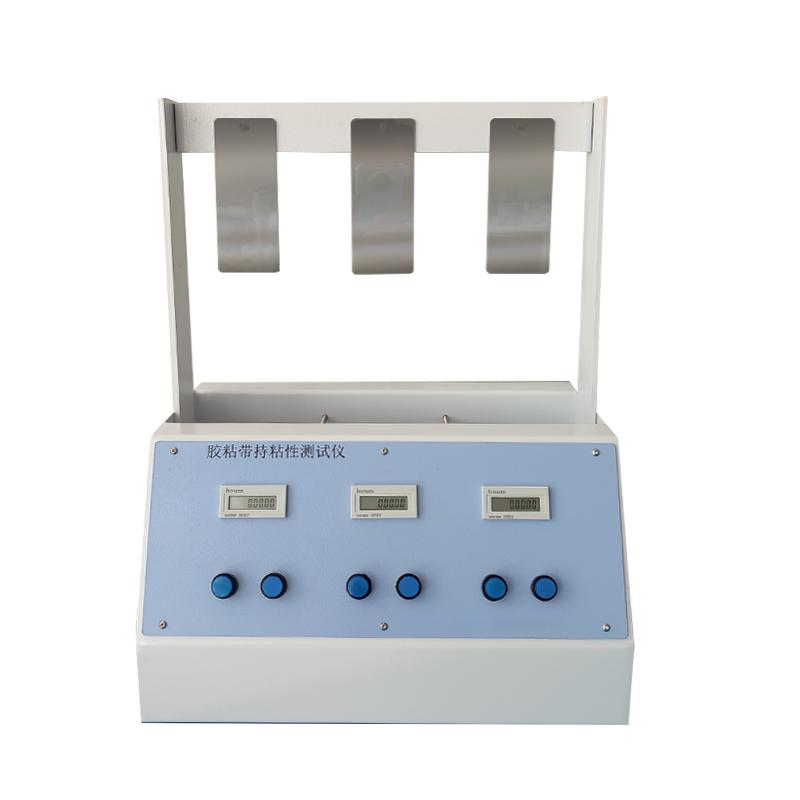

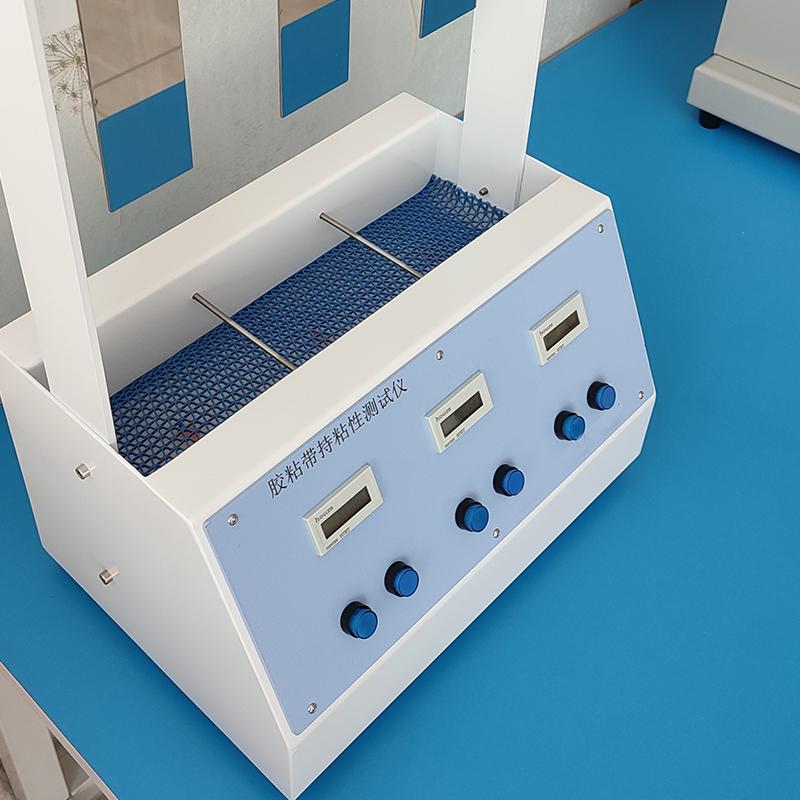

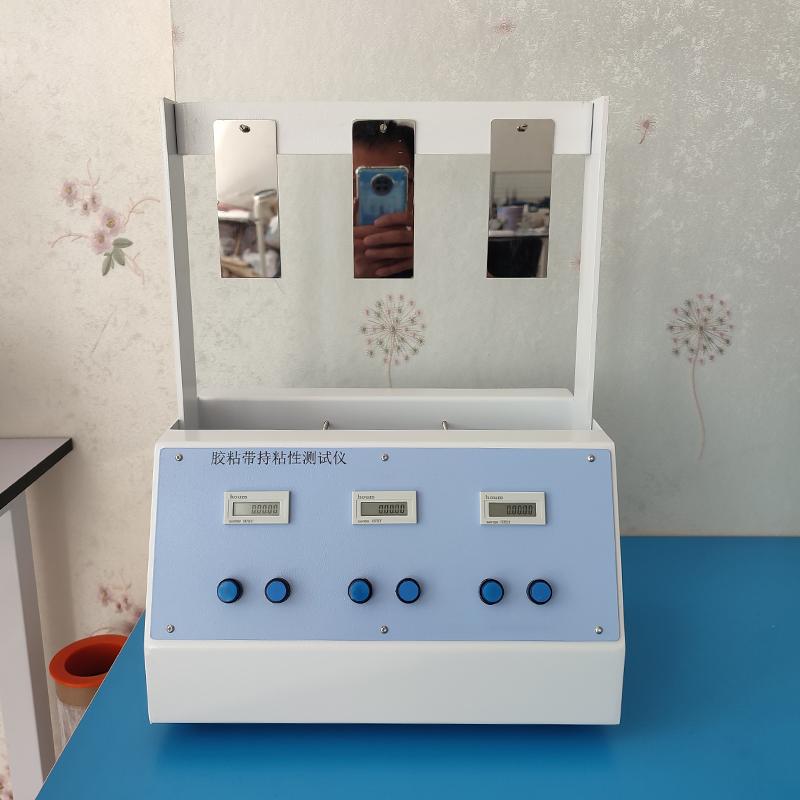

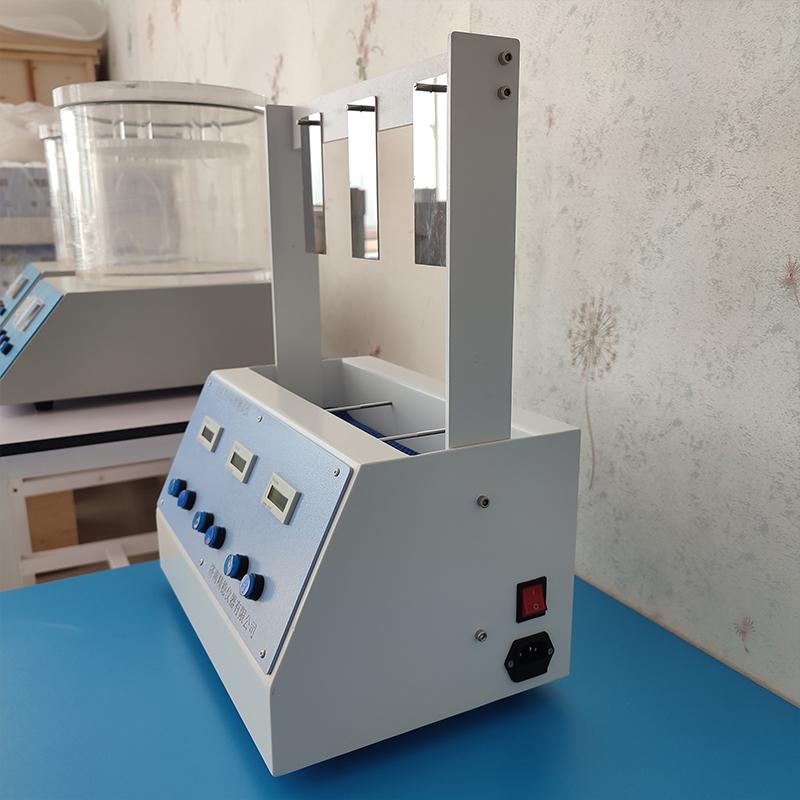

JINGWEN JW207A-3p tape holding force testing machine, tape holding tack tester 3 stations

JW207A-3p

Tape holding force testing machine

The three test stations can simultaneously conduct multiple sets of test items, suitable for the tack testing of various adhesive products, automatically timed, and in line with the provisions of the national standard GB/T 4851-2014.

Application

This product is manufactured in accordance with the provisions of Law A in the national standard GB/T4851-2014, and is suitable for the adhesion test of various adhesive products, such as pressure-sensitive tapes, medical patches, self-adhesive labels, protective films, adhesives, medical tapes, sealing tapes, labels, plasters and other products.

How it works

The test plate with the specimen is hung vertically on the test frame, and the weight of the specified weight is hung at the lower end, and the displacement of the specimen sticking off after a certain period of time, or the time when the specimen is completely detached is used to characterize the ability of the adhesive tape to resist pulling.

Features

• The modular time unit is adopted, the timing time is long, the timing is accurate, and the error is small.

• Ultra-long timekeeping, 9999h59min59s.

• High-end proximity switch, wear-resistant and anti-smashing, high sensitivity, longer service life.

• In strict accordance with the standard design of the test board and test weights, the test board is laser cutting process, the edge is neat and smooth, no burrs, no curling, to ensure the accuracy of the detection data.

• 3 test stations can be used to carry out multiple sets of test items at the same time.

• Automatic timing, locking, and other functions further ensure high accuracy of test results.

According to the standard

GB/T485-2014

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
