JINGWEN JW207A-6p Tape Retention Testing Machine, Tape Lasting Adhesive Tester 6 Stations
SE
JW207A-6p
jingwen JW207A-6p Tape holding force testing machine SPEC
jingwen JW207A-6p Tape holding force testing machine Details
jingwen JW207A-6p Tape holding force testing machine Packing list
- SKU
- NB047541

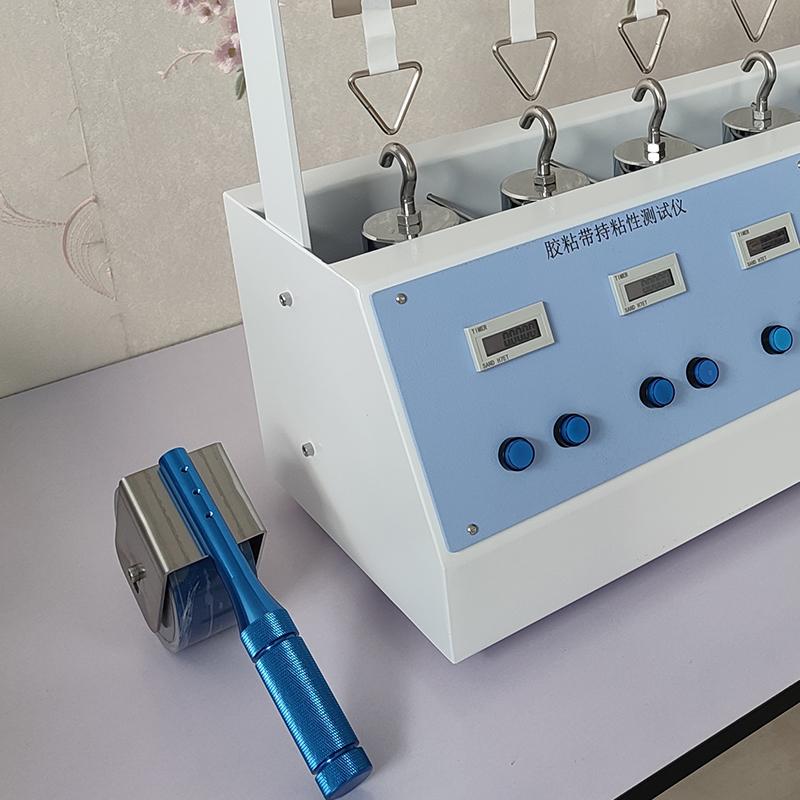

- Standard press roller
- 2000g±50 g
- weight
- 1000 +/- 1g (200g optional)
- Test board
- New national standard 125 (L) × 50 (B) × 1.5 (D) mm
- Timing range
- Optional 9999h59min59s
- Dimension
- 620*240*510mm
- Control mode
- Timing module unit, button switch control, single station can be switched separately
- Display mode
- liquid crystal display
- Net weight
- 12kg
- power supply
- AC 220V 50Hz
Application
This product is manufactured in accordance with the provisions of Law A in the national standard GB/T4851-2014, and is suitable for the adhesion test of various adhesive products, such as pressure-sensitive tapes, medical patches, self-adhesive labels, protective films, adhesives, medical tapes, sealing tapes, labels, plasters and other products.
How it works

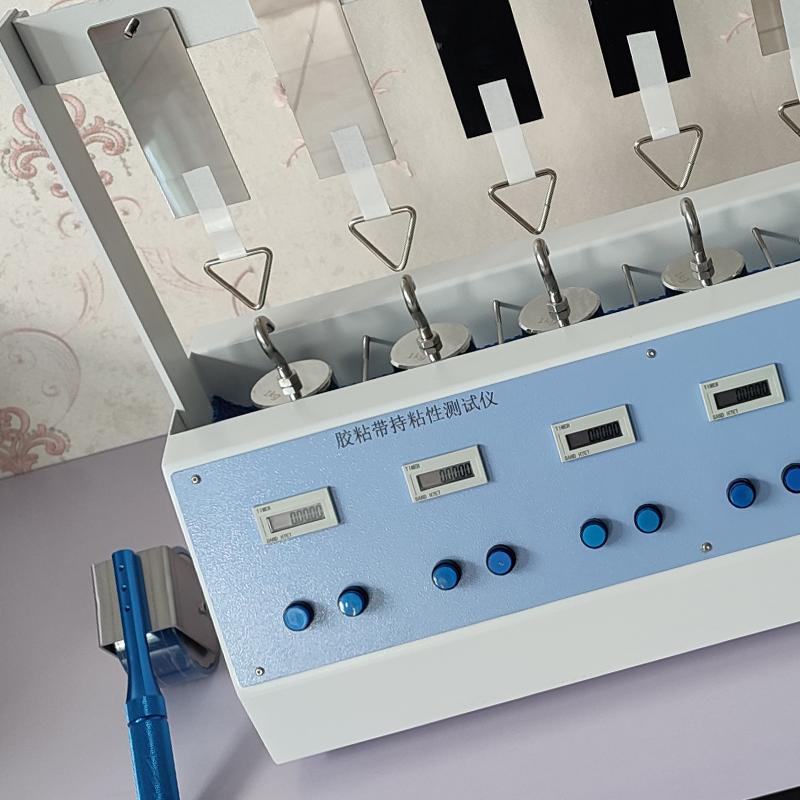

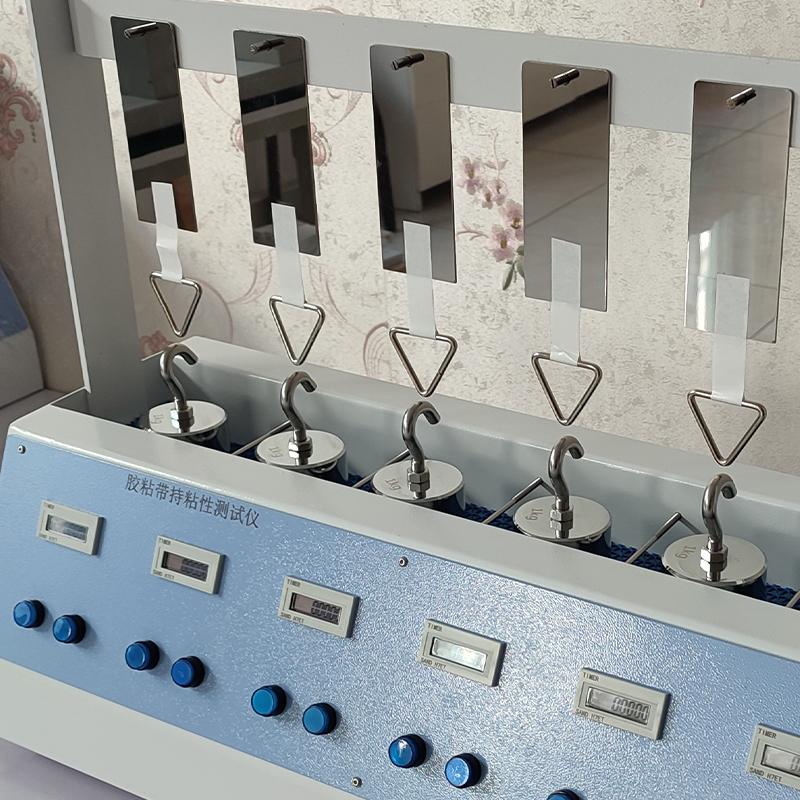

The test plate with the specimen is hung vertically on the test frame, and the weight of the specified weight is hung at the lower end, and the displacement of the specimen sticking off after a certain period of time, or the time when the specimen is completely detached is used to characterize the ability of the adhesive tape to resist pulling.
Features
The modular time unit is adopted, the timing time is long, the timing is accurate, and the error is small.
Ultra-long timekeeping, optional 9999h59min59s.
High-end proximity switch, wear-resistant and anti-smashing, high sensitivity, longer service life.
In strict accordance with the standard design of the test board and test weights, the test board is laser cutting process, the edge is neat and smooth, no burrs, no curling, to ensure the accuracy of the detection data.

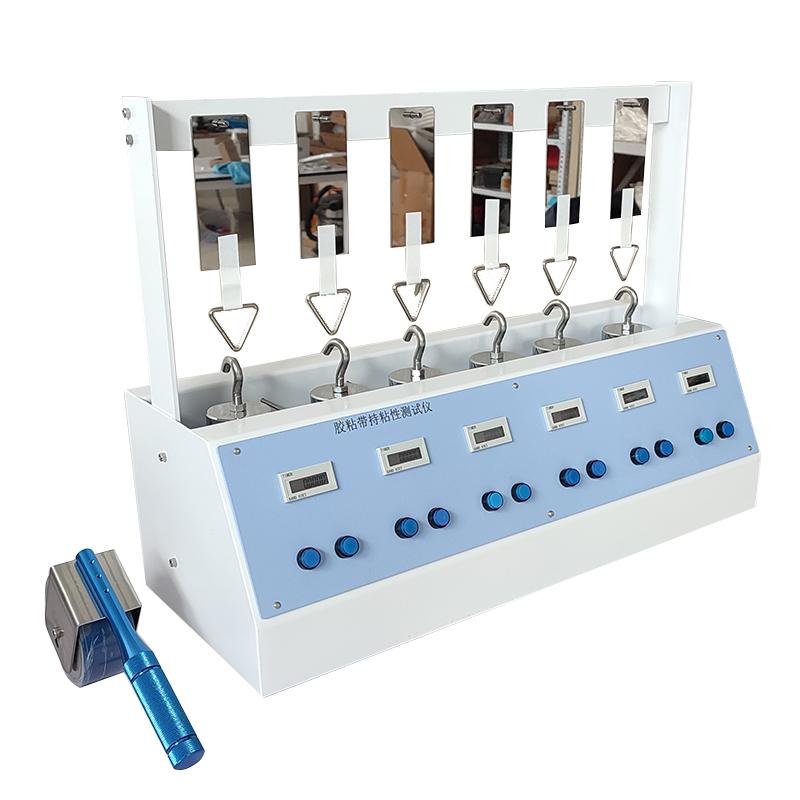

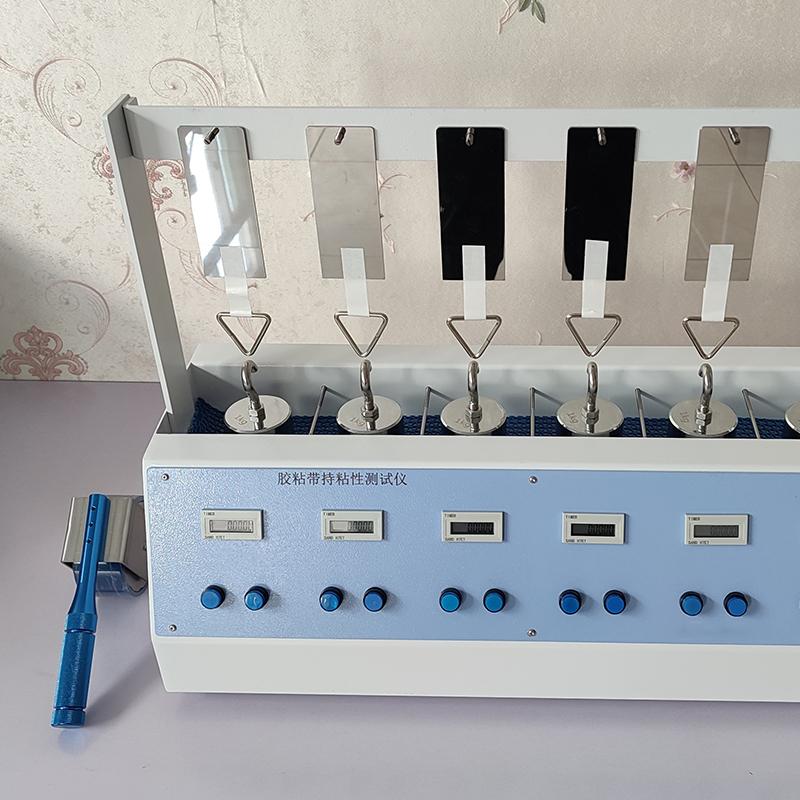

6 test stations can be used for multiple sets of test items at the same time.
Automatic timing, locking, and other functions further ensure high accuracy of test results.
According to the standard
GB/T485-2014
