Specifications
| production speed | 0-5M/min |
| Coating size | Max.600mm |
| Coil diameter | 3 inches. |
| Power | 1.4KW |
| Power Supply | Three-phase 220V |
| unroll | With tension control |
| control | Touch screen (Kunlun Tongtai) |
| inflated shaft | 2 |

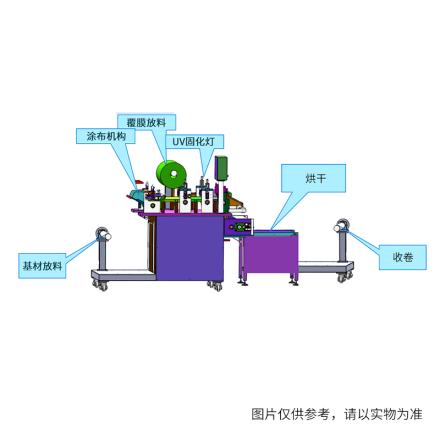

| Painting process | Unwinding, scraping, film laminating, UV curing, drying, winding |
| Coating method | scraping |
| Drying channel length | 1m |
| UV curing area | 600*500mm |
| UV light main peak wave | 365nm |
| UV light curing wavelength | 350-450nm |
| switch | Aviation plug/separate switch |
Packing list
Host x1, Spreader head x1, UV curing device x1, drying device x1, manual x1, Encasement list x1, certificate of conformity x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/47550/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
