HUINUO SNB-2 digital display Rotational Viscometer 6 million CP

SE
Digital display, Measurement range 12~ 6000000mPa · s, Rotor specifications L1 #, L2 #, L3 #, L4 #, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S, Power supply Voltage dedicated power adapter (input 100~240V 50~60Hz), Rotor speed 0.1~ 99.9rpm.
$1061.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

HuiNuo SNB-2 Digital Rotational ViscometerSPEC

HuiNuo SNB-2 Digital Rotational ViscometerDetails

HuiNuo SNB-2 Digital Rotational ViscometerPacking list

SKU
NB047556
Display mode
digital display
Measurement range
12~6000000mPa·s
Rotor specification
L1#、L2#、L3#、L4#
reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power supply Voltage
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~99.9rpm
Display information
Viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
Rotation speed Control mode
CVT
SNB-2
Digital Rotational Viscometer
Digital display, Measurement range 12~ 6000000mPa · s, Rotor specifications L1 #, L2 #, L3 #, L4 #, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S, Power supply Voltage dedicated power adapter (input 100~240V 50~60Hz), Rotor speed 0.1~ 99.9rpm.

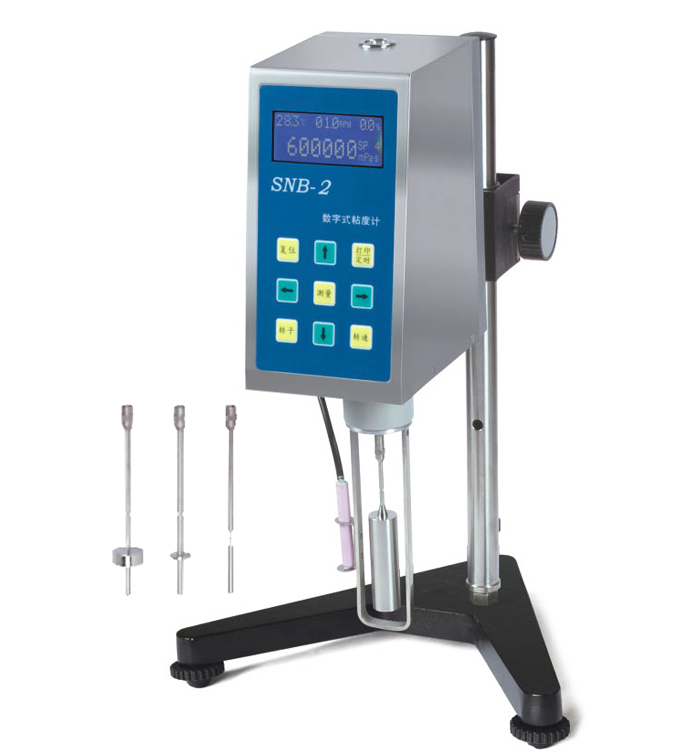

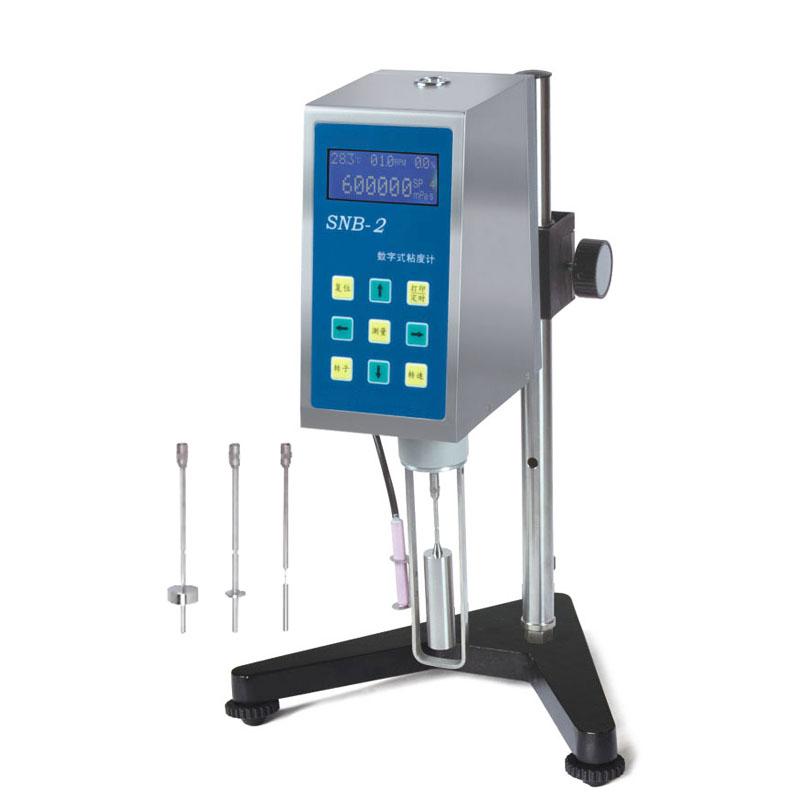

HUINUO SNB-2 digital display Rotational Viscometer 6 million CP Picture

Introduction

The LCD screen of the SNB-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentmeter torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor. It is a digital rotary viscometer with a range of 12~6,000,000 mPa · seconds.



FAQ
QCan SNB-2 test solder paste viscosity?
A SNB-3 is recommended for solder paste, but snb-2 is not suitable. For example, when the No. 4 rotor is 25RPM, the solder paste viscosity is about 200,000, and the maximum range of SNB-2 is 24,000 when the No. 4 rotor is 25RPM, which is far beyond the range, so snb-3 is used.
Standard
