HUINUO SNB-AI digital display Rotational Viscometer 10 million CP

SE
Measurement range 50~10000000mPa · s, rotor specifications 21 #, 27 #, 28 #, 29 #, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S, Power supply Voltage dedicated power adapter (input 100~240V 50~60Hz), Rotor speed 0.1~ 200rpm.
$1260.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

HuiNuo SNB-AI Digital Rotational ViscometerSPEC

HuiNuo SNB-AI Digital Rotational ViscometerDetails

HuiNuo SNB-AI Digital Rotational ViscometerPacking list

SKU
NB047558
Measurement range
50~10000000mPa·s
Rotor specification
21#、 27#、28#、29#
reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power supply Voltage
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~200rpm
Display information
Viscosity, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
Measurement mode
Manual measurement, automatic measurement
Rotation speed Control mode
CVT
SNB-AI
Digital Rotational Viscometer
Measurement range 50~10000000mPa · s, rotor specifications 21 #, 27 #, 28 #, 29 #, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S, Power supply Voltage dedicated power adapter (input 100~240V 50~60Hz), Rotor speed 0.1~ 200rpm.

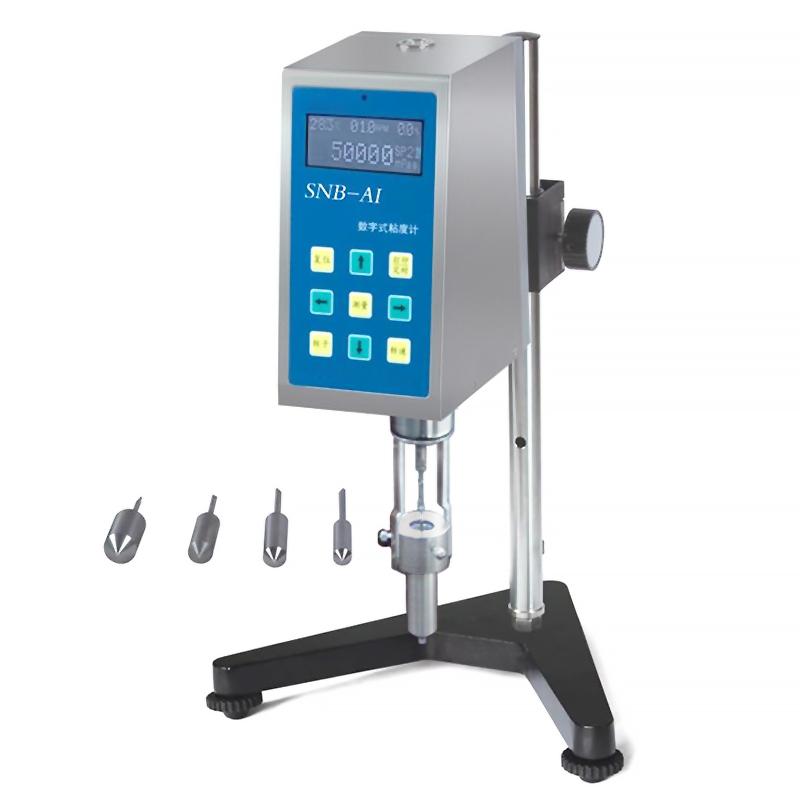

HUINUO SNB-AI digital display Rotational Viscometer 10 million CP Picture

Introduction

SNB-AI intelligent digital viscometer adopts 16-bit microcomputer processor core control circuit, gearless driven, with intelligent automatic measurement and manual measurement methods. The blue screen LCD digital display directly displays the viscosity, speed, temperature, percent torque, rotor number and the maximum measurable viscosity value of the selected rotor at the current speed. The sample size is small, only 10-20 ml is required. The optional "Data Acquisition and Drawing Software" can be used for a number of mathematical statistical analysis tasks such as data collection, data storage and historical data comparison. The circuit adopts SMD technology, with compact structure and reasonable layout. The measurement performance and function of this series of products are close to the professional level of similar foreign products.

The instrument measures the viscous resistance of a liquid and the dynamic viscosity of a liquid. It is widely used in viscosity measurement of various fluids such as grease, paint, food, papermaking, cosmetics, chemicals, coatings, capsules, etc. Equipped with a special temperature-controlled heater, it can be used to measure the apparent viscosity of asphalt, hot melt, paraffin, high polymer and other fluids.

Principle

As shown in the figure, the high-subdivision drive stepper motor drives the sensor pointer and the rotor rotates through the hairspring and shaft. If the rotor is not resisted by the liquid, the hairspring sensor pointer is in the same position as the sensor pointer of the stepper motor. Conversely, if the rotor is subjected to viscous resistance by the liquid, the hairspring generates torque to counteract the viscous resistance and finally reaches equilibrium. At this time, the output signal is sent to the 16-bit microcomputer processor through the photoelectric sensor for data processing, and the viscosity value of the liquid (mPa ·) is displayed on the LCD screen.

Detail Figure 1 of the SNB-AI Digital Display Rotary Viscometer


Instrument structure

Detail Figure 2 of SNB-AI Digital Display Rotary Viscometer

Structural diagram on the back

Detail Figure 3 of SNB-AI Digital Display Rotary Viscometer

Frontal structure drawing

Technical performance

Detail Figure 4 of the SNB-AI Digital Display Rotary Viscometer

Rotor kit

Rotor numberNumber 0Number 21Number 27Number 28Number 29
Measuring range (mPa ·)3～60K50～500K250～2.5M500～5M1K～10M
Rotation speed (rpm)0.1~200 (CVT)
Rotor specifications21, 27, 28, 29 (No. 0 to optional)
Measurement methodManual measurement, automatic measurement
Measurement accuracy±1%（FS）
Reproducibility±0.5%
ElectricityDedicated power adapter (input 100~240V, 50~60Hz)

Note: K=1,000 M=1,000,000

FAQ
QOur laboratory mainly measures the viscosity of paints and coatings. Which Viscometer should I choose?
A SNB-AI digital display swirl/spin Viscometer is recommended. This instrument is specially suitable for viscosity measurement of paints, coatings and other fluids. It adopts a stepless variable speed design and a speed range of 0.1-200 rpm. It can accurately measure the viscosity range of 50-10 million mPa · s to meet the testing requirements of paints.
QDo cosmetics research and development need to measure different viscosity products, is this instrument suitable?
A Suitable. SNB-AI Viscometer comes standard with 4 rotors, and the measurement range covers 50-10 million mPa · s. Whether it is a low viscosity emulsion or a high viscosity cream, it can be accurately measured. And the sample volume is only 10-20ml, which is suitable for small batch testing of cosmetic research and development.
QWe want to measure the high temperature viscosity of asphalt, what accessories do we need?
A It is recommended to choose a dedicated temperature-controlled heater. SNB-AI Viscometer itself supports continuously variable speed and automatic measurement. With the heater, the temperature can be precisely controlled. It is specially used to measure the apparent viscosity of high temperature fluids such as asphalt and hot glue to ensure the measurement accuracy under high temperature conditions.
QOur laboratory mainly measures the viscosity of paints and coatings. Which Viscometer should I choose?
A SNB-AI digital display swirl/spin Viscometer is recommended. This instrument is specially suitable for viscosity measurement of paints, coatings and other fluids. It adopts a stepless speed change design and has a speed range of 0.1-200 rpm. It can accurately measure the viscosity range of 50-10 million mPa · s, fully meeting the testing requirements of paints.
QDo cosmetics research and development need to measure different viscosity products, is this instrument suitable?
A Yes. The SNB-AI Viscometer is equipped with a variety of rotors with a measurement range from 50 to 10 million mPa · s, covering the full viscosity range of cosmetics from thin emulsions to thick creams. The sample size is only 10-20ml, which is suitable for small batch testing in the R & D stage.
QWe need to measure the high temperature viscosity of asphalt. Can this instrument be equipped with a temperature control device?
A Yes. The SNB-AI Viscometer can be equipped with a special temperature-controlled heater, which is specially used for the measurement of asphalt apparent viscosity, hot glue and other high temperature fluids. The instrument itself supports stepless speed change and automatic measurement, and the temperature control device can accurately obtain the viscosity data of asphalt at different temperatures.
