HUINUO NDJ-5S Digital Rotational Viscometer Viscosimeter with L0 rotor

SE
With ultra-low viscosity adapter, low viscosity can be measured, Measurement accuracy is +/- 1%, Measurement range 1~ 100000mPa · s.
$556.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

HuiNuo NDJ-5S+L0 Digital Rotational ViscometerSPEC

HuiNuo NDJ-5S+L0 Digital Rotational ViscometerDetails

HuiNuo NDJ-5S+L0 Digital Rotational ViscometerPacking list

SKU
NB047584
Measurement range
1~100000mPa·s
Rotor specification
L0#、L1#、L2#、L3#、L4#
reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power supply Voltage
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
6/12/30/60rpm
Display information
Viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
Rotation speed Control mode
Rotation speed
NDJ-5S+L0
Digital Rotational Viscometer
With ultra-low viscosity adapter, low viscosity can be measured, Measurement accuracy is +/- 1%, Measurement range 1~ 100000mPa · s.

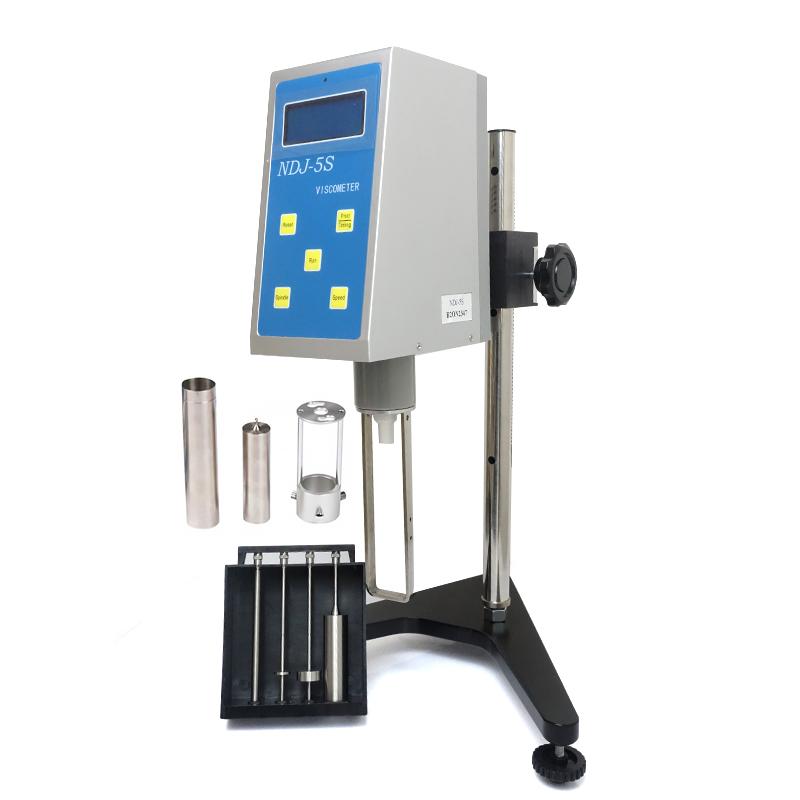

HUINUO NDJ-5S Digital Rotational Viscometer Viscosimeter with L0 rotor Picture

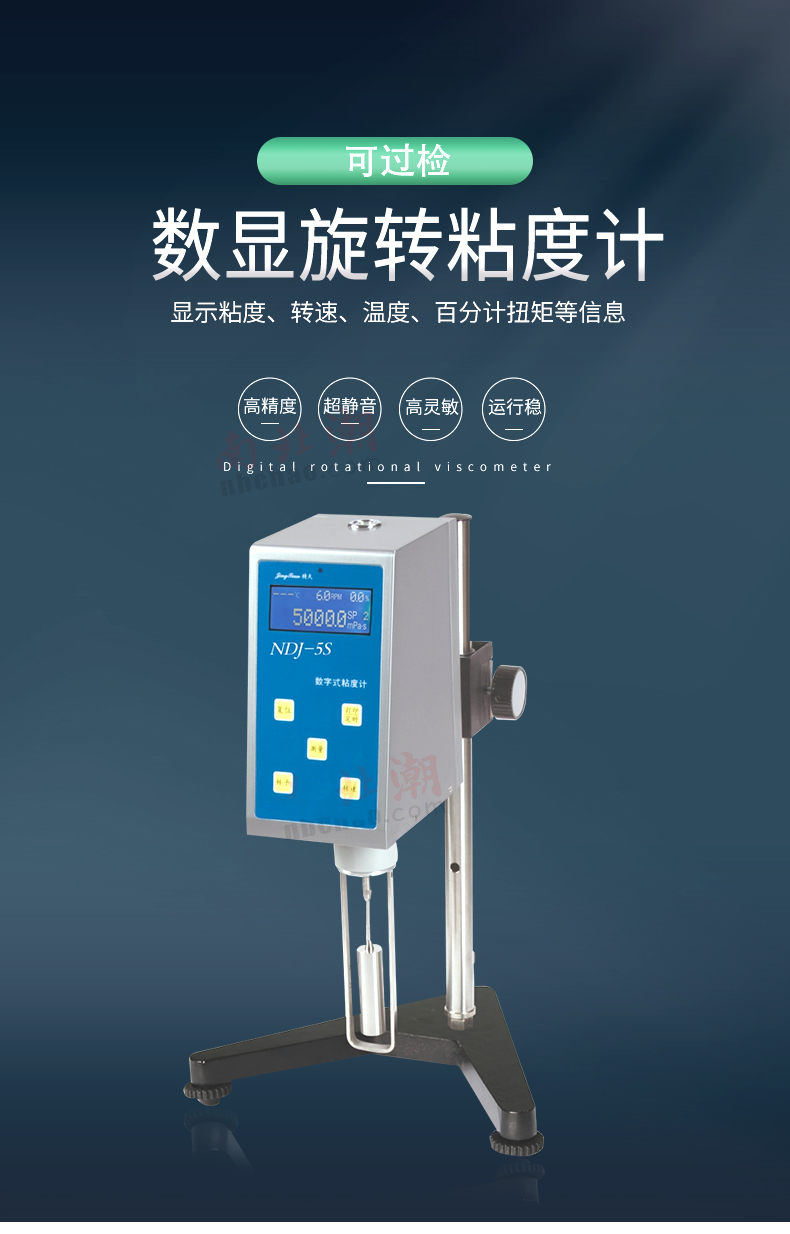

Detail Figure 1 of NDJ-5S+L0 Digital Display Rotary Viscometer

Detail Figure 2 of NDJ-5S+L0 Digital Display Rotary Viscometer

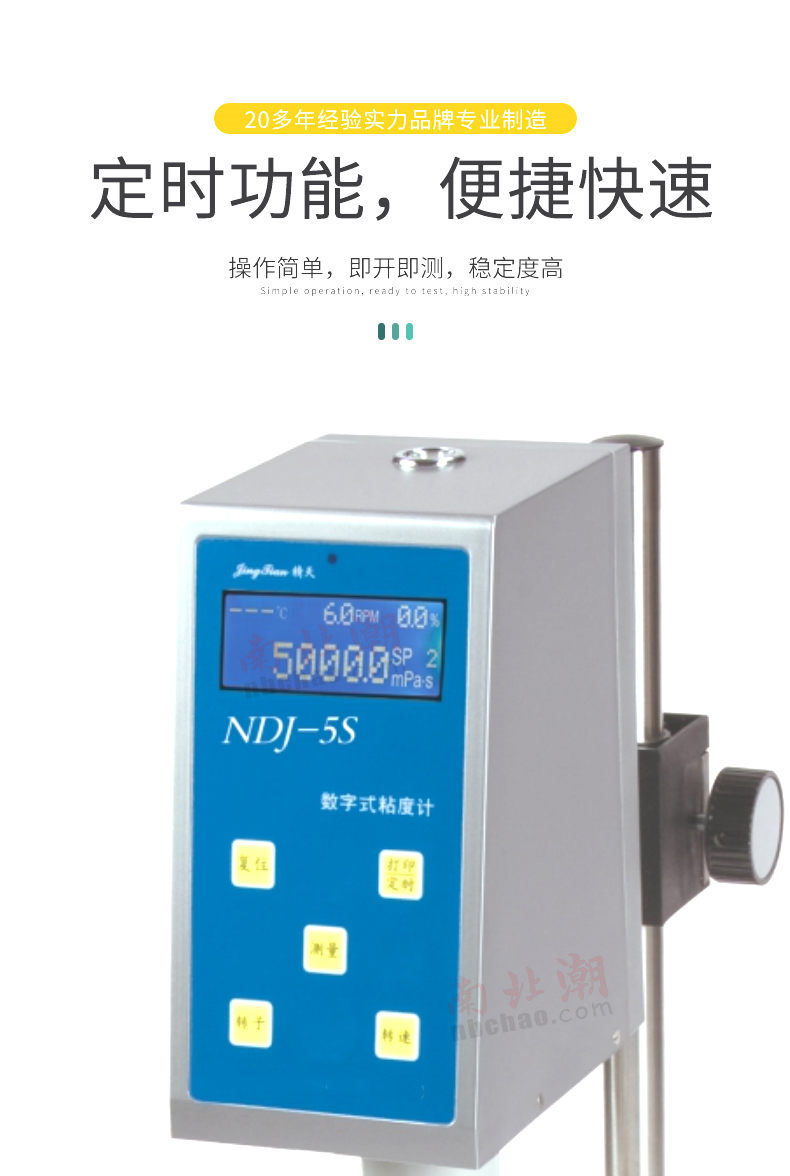

HUINUO NDJ-5S+L0 Digital Display Rotary Viscometer Details Figure 3

Detail Figure 4 of NDJ-5S+L0 Digital Display Rotary Viscometer

Details of NDJ-5S+L0 Digital Display Rotary Viscometer Figure 5

Detail Figure 6 of NDJ-5S+L0 Digital Display Rotary Viscometer

Detail Figure 7 of NDJ-5S+L0 Digital Display Rotary Viscometer

Detail Figure 8 of NDJ-5S+L0 Digital Display Rotary Viscometer

Detail Figure 9 of NDJ-5S+L0 Digital Display Rotary Viscometer

Detail Figure 10 of NDJ-5S+L0 Digital Display Rotary Viscometer

Detail Figure 11 of NDJ-5S+L0 Digital Display Rotary Viscometer

Detail Figure 12 of NDJ-5S+L0 Digital Display Rotary Viscometer

Detail Figure 13 of NDJ-5S+L0 Digital Display Rotary Viscometer

Introduction

The LCD screen of NDJ-5S digital display rotary viscometer can display viscosity, rotational speed, temperature, percentmeter torque, rotor number and the maximum viscosity value that can be measured by the selected rotor at the current speed. It is a range of 20~100,000Millipascal · second digital rotary viscometer.

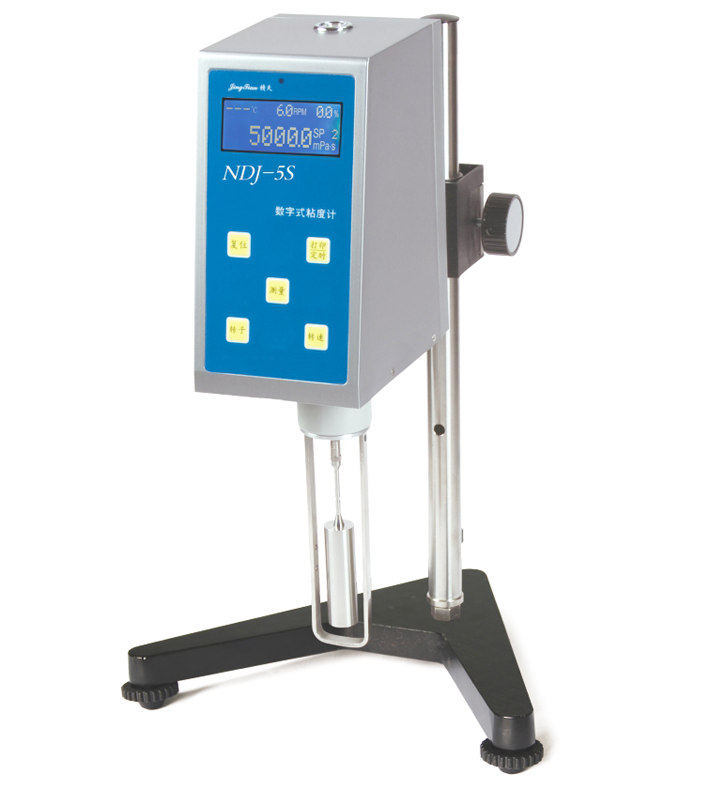

Detail Figure 14 of NDJ-5S+L0 Digital Display Rotary Viscometer

Introduction

Accurate measurement of ultra-low viscosity samples

The sample volume is only 25~30mL

It can measure lower viscosity and can be used with different types of viscometers

Detail Figure 15 of NDJ-5S+L0 Digital Display Rotary Viscometer

FAQ
QI want to test some low viscosity liquids, such as ink or thin paint, is there a suitable Viscometer recommendation?
A Recommended HuiNuo NDJ-5S + L0 digital display swirl/spin Viscometer, it is specially designed for low viscosity samples, the minimum can be measured 1mPa · s, with L0 rotor can accurately measure ink such flowability liquid, and the sample volume is only 25-30mL, saving material.
QIs this Viscometer easy to operate? Are the measurements accurate?
A The operation is very simple, the digital display screen directly displays key parameters such as viscosity, speed, torque, etc., and also prompts the maximum measurable value to avoid exceeding the range. The accuracy reaches +/- 1%, the reproducibility is +/- 0.5%, and the measurement is stable and reliable. It is suitable for daily use in Quality control and R & D departments.
