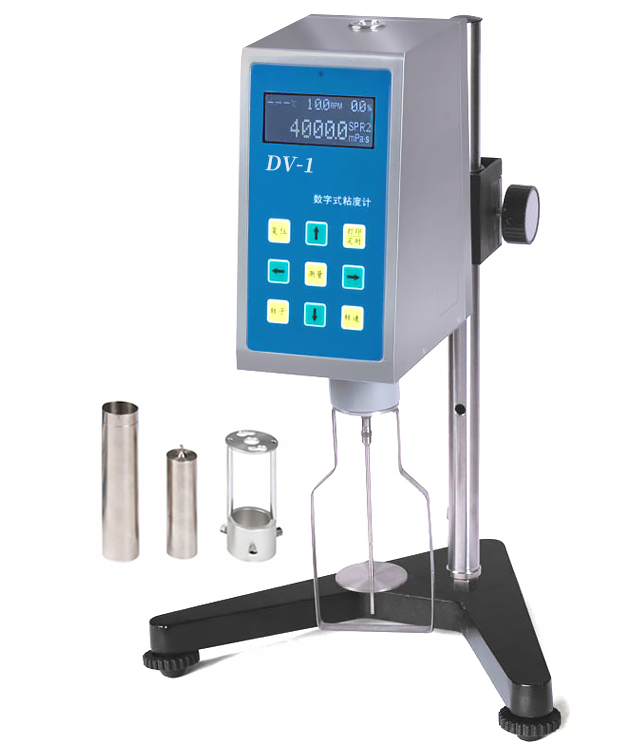

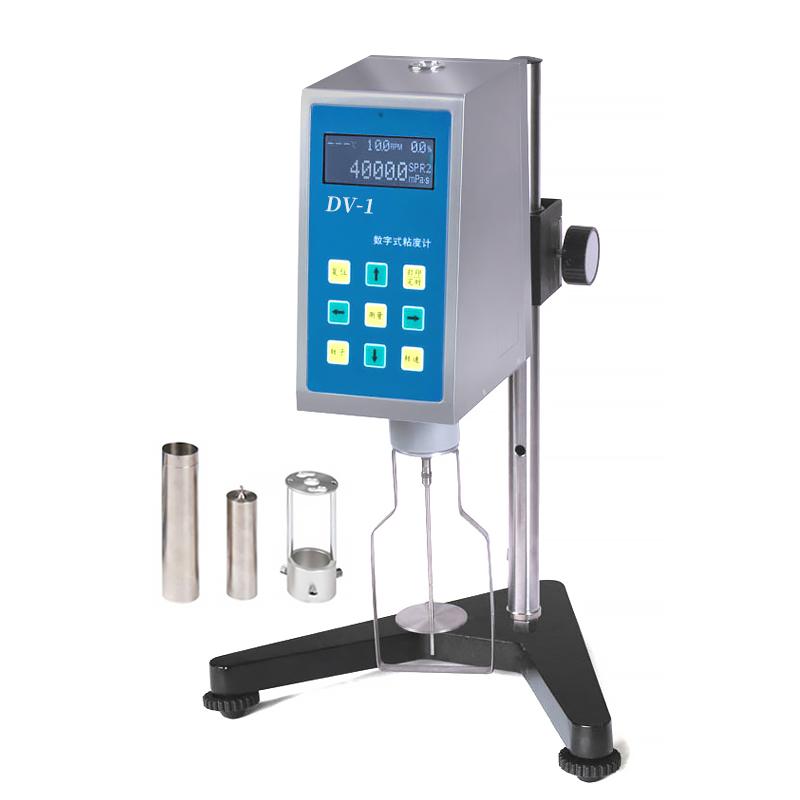

HUINUO HBDV-1 Digital Rotational Viscometer Viscosity meter with L0 rotor

HBDV-1+L0

Digital Rotational Viscometer

Measurement range 50~320000000mPa · s, rotor specifications L0, R2, R3, R4, R5, R6, R7 rotors each, reproducibility +/- 0.5% F. S, Measurement accuracy +/- 1% F. S, Power supply Voltage dedicated power adapter (input 100~240V 50~60Hz), Rotor speed 0.1~ 99.9rpm, display information viscosity, Rotation speed, temperature, percentimeter torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, Rotation speed Control mode stepless speed change.

Introduction

The LCD screen of the HBDV-1 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentmeter torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor. It is a measuring range of 640~320,000,000 mPa · secondstargetDigital rotary viscometer。

Introduction

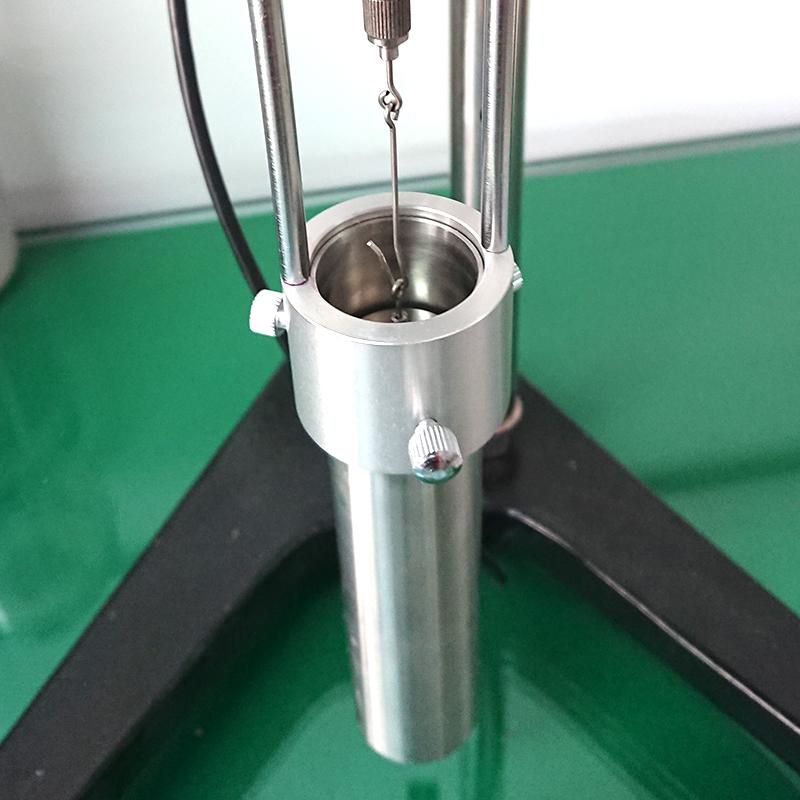

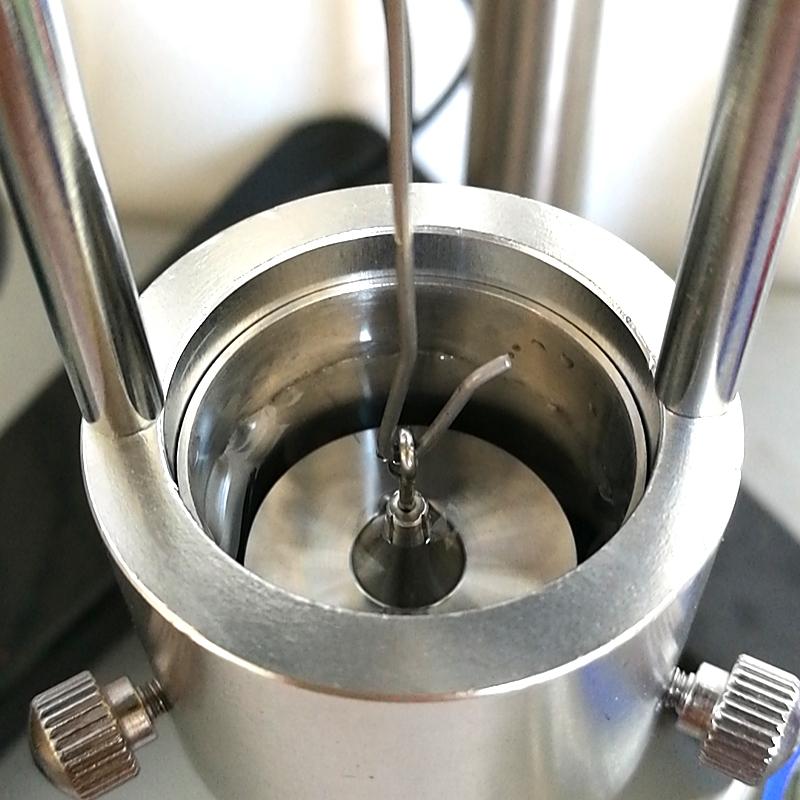

Accurate measurement of ultra-low viscosity samples

The sample volume is only 25~30mL

It can measure lower viscosity and can be used with different types of viscometers

Packing list：Host X1, protection frame X1, rotor X1 (sleeve), L0 rotor, base and level adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature sensor X1, RS232 standard output interface X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
