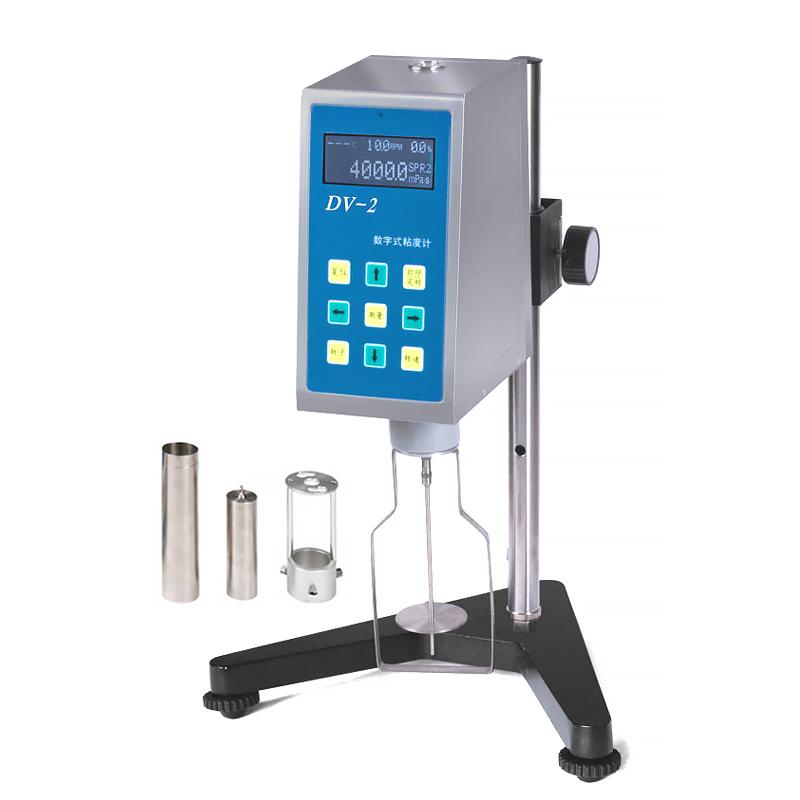

HUINUO RVDV-2 digital Rotational Viscometer with L0 rotor

SE
Measurement range 3~ 40000000mPa · s, rotor specifications L0, R2, R3, R4, R5, R6, R7 rotors each, reproducibility +/- 0.5% F. S, Measurement accuracy +/- 1% F. S, continuously variable speed.
$1765.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

HuiNuo RVDV-2+L0 Digital Rotational ViscometerSPEC

HuiNuo RVDV-2+L0 Digital Rotational ViscometerDetails

HuiNuo RVDV-2+L0 Digital Rotational ViscometerPacking list

SKU
NB047594
Measurement range
3~40000000mPa·s
Rotor specification
1 each of rotors L0, R2, R3, R4, R5, R6 and R7
reproducibility
±0.5%F.S
Measurement Accuracy
±1%F.S
Power supply Voltage
Dedicated power adapter (input 100~240V 50~60Hz)
Rotor speed
0.1~200rpm
Display information
Viscosity, shear rate, shear stress, Rotation speed, temperature, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed
Rotation speed Control mode
CVT
RVDV-2+L0
Digital Rotational Viscometer
Measurement range 3~ 40000000mPa · s, rotor specifications L0, R2, R3, R4, R5, R6, R7 rotors each, reproducibility +/- 0.5% F. S, Measurement accuracy +/- 1% F. S, continuously variable speed.

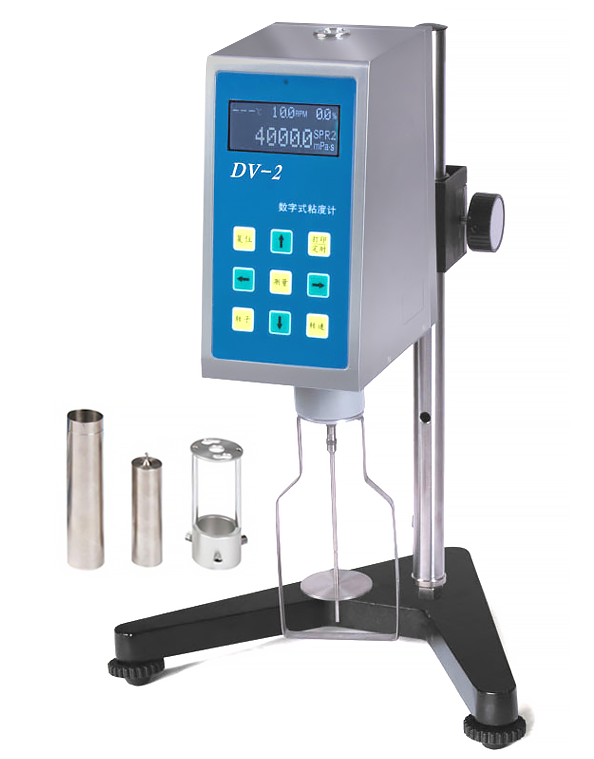

HUINUO RVDV-2 digital Rotational Viscometer with L0 rotor Picture

Introduction

HUINUO RVDV-2 Digital Display Rotary Viscometer is a liquid crystal display viscometer The LCD screen can display viscosity, shear rate, shear stress, rotational speed, temperature, percentmeter torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor. It is a digital rotary viscometer with a range of 40~40,000,000 mPa · seconds.

Introduction

Accurate measurement of ultra-low viscosity samples

The sample volume is only 25~30mL

It can measure lower viscosity and can be used with different types of viscometers

Detail Figure 2 of RVDV-2+L0 Digital Display Rotary Viscometer

FAQ
QThe laboratory needs to measure the viscosity of various samples. Is this instrument suitable?
A Applicable. RVDV-2 + L0 comes standard with an ultra-low viscosity adapter, the sample volume is only 25-30mL, and it can measure various fluids such as grease, Coatings, cosmetics, etc. It supports continuously variable speed and a variety of rotors, with a reproducibility of +/- 0.5%. One instrument can meet the multi-scene needs of daily R & D and Quality control.
QWhat features should I pay attention to when selecting a Viscometer?
A It is recommended to pay attention to three points: first, the range should cover your sample (this one is up to 40 million mPa · s); second, the accuracy and reproducibility (this accuracy +/- 1%); third, the extended function - RVDV-2 can display shear stress, connect to computer analysis data, suitable for quality control links that require data traceability.
QWhat special configuration is required to measure asphalt viscosity?
A The RVDV-2 Viscometer can measure the apparent viscosity of asphalt with a special temperature-controlled heating device. It supports 0.1-200 rpm stepless speed regulation, can simulate the flow characteristics of asphalt at different temperatures, and has a reproducibility of +/- 0.5%. It is especially suitable for samples such as asphalt and hot-melt adhesive that require temperature control measurement.
QHow to measure ultra-low viscosity liquids? Such as some thin solvents
A This instrument comes standard with an ultra-low viscosity adapter, which can measure a minimum of 3mPa · s and only needs 25-30mL sample volume. When used with the R2/R3 small rotor, it can accurately capture the subtle changes of low viscosity solvents, and the accuracy +/- 1% fully meets the laboratory requirements.
Standard
