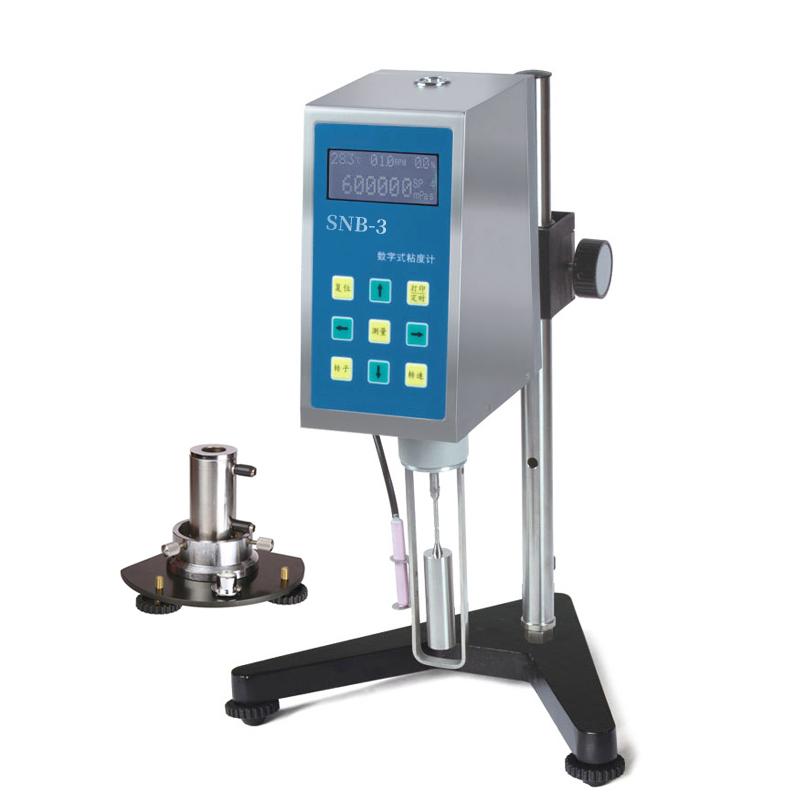

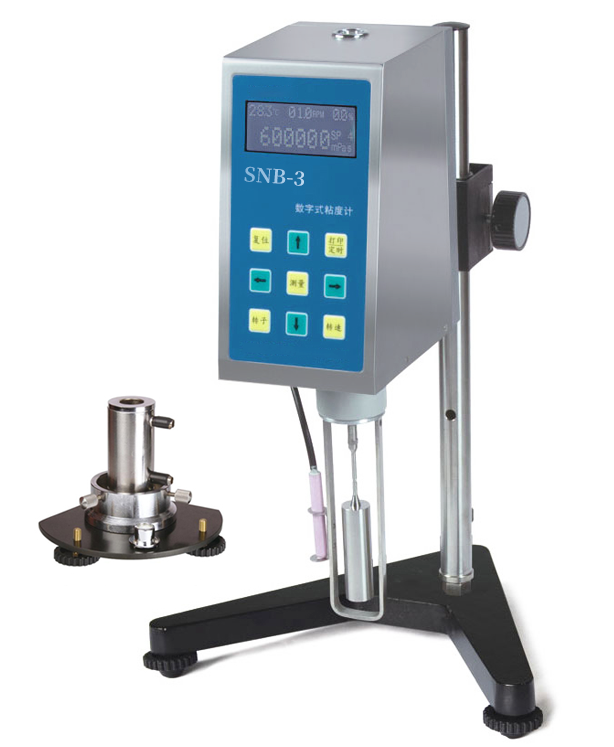

HUINUO SNB-3 digital display Rotational Viscometer with a small number of sample adapters

SNB-3+SSA

Digital Rotational Viscometer

Measurement range 160~80000000mPa · s (with 0 #rotor viscosity can reach 1mPa · s), rotor specifications L1, L2, L3, L4, 21 #, 27 #, 28 #, 29 #rotor each 1 piece, reproducibility +/- 0.5% F. S, Measurement accuracy +/- 1% F. S, Power supply Voltage dedicated power adapter (input 100~240V 50~60Hz), Rotor speed 0.1~ 99.9rpm.

Introduction

The LCD screen of the SNB-3 digital display rotary viscometer can display viscosity, shear rate, shear stress, speed, temperature, dial torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor. It is a measuring range of 160~80,000,000 mPa · secondstargetDigital rotary viscometer。

Introduction to small sample adapters

• It is equipped with 21, 27, 28 and 29 rotors

• The sample volume is small, only 10~20mL, especially suitable for valuable sample testing

• A thermostat connected to an external circulation function controls the temperature of the sample to be measured

• Easy to disassemble and easy to clean

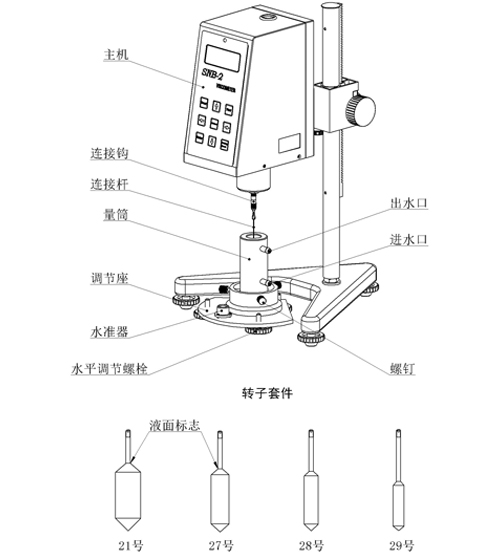

Viscometer structure diagram

Packing list：Host X1, protective frame X1, rotor X1 (set), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, a small number of sample adapters X1 (set)

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
