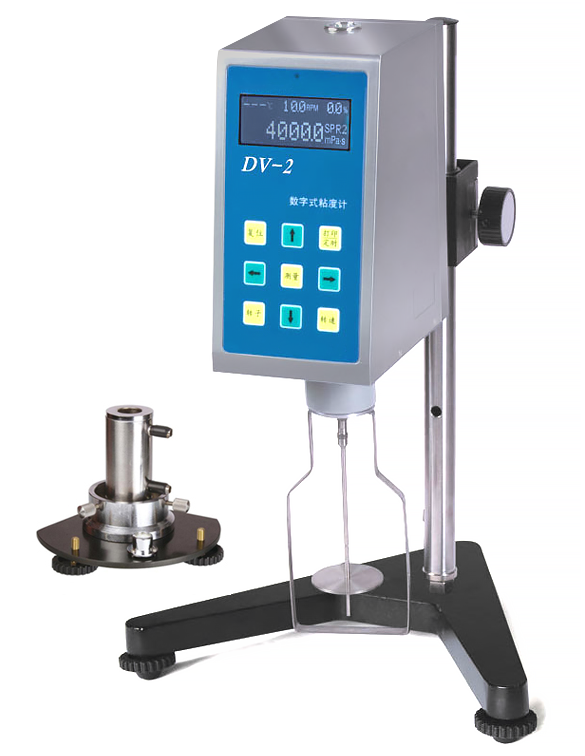

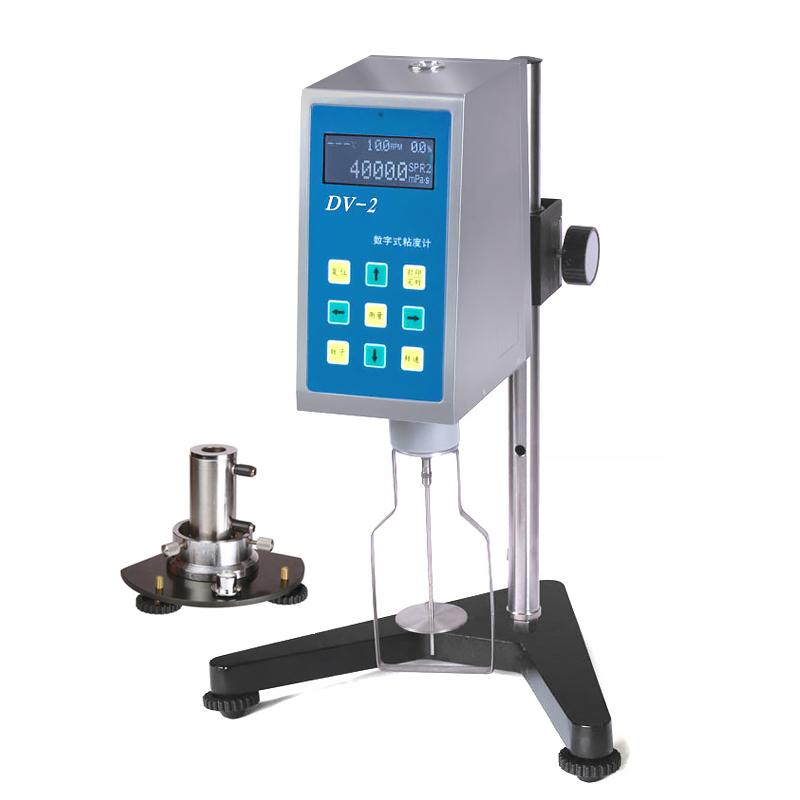

HUINUO LVDV-2 digital display Rotational Viscometer Viscosimeter 600,000 CP with a small number of sample adapters

LVDV-2+SSA

Digital Rotational Viscometer

Measurement range 6~ 6000000mPa · s, rotor specifications L1, L2, L3, L4, 21 #, 27 #, 28 #, 29 #rotors each, reproducibility +/- 0.5% F.S, Measurement accuracy +/- 1% F.S

Introduction

The LCD screen of the LVDV-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotational speed, temperature, percentmeter torque, rotor number and the maximum viscosity value that can be measured at the current speed of the selected rotor. It is a digital rotary viscometer with a range of 60~60,000,000 mPa · seconds.

Introduction to small sample adapters

• It is equipped with 21, 27, 28 and 29 rotors

• The sample volume is small, only 10~20mL, especially suitable for valuable sample testing

• A thermostat connected to an external circulation function controls the temperature of the sample to be measured

• Easy to disassemble and easy to clean

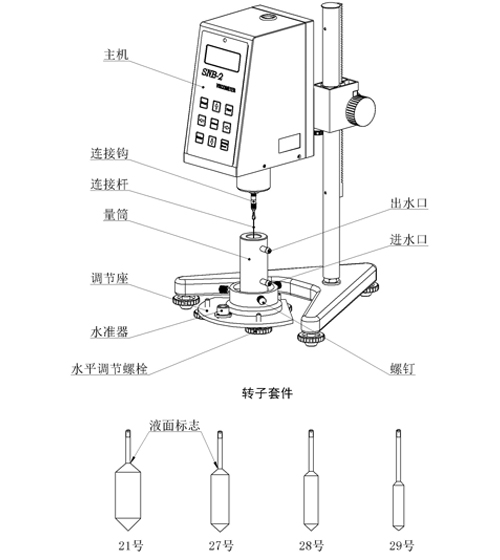

Viscometer structure diagram

Packing list：Host X1, protective frame X1, rotor X1 (set), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1 Small sample adapter X1 (set)

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
