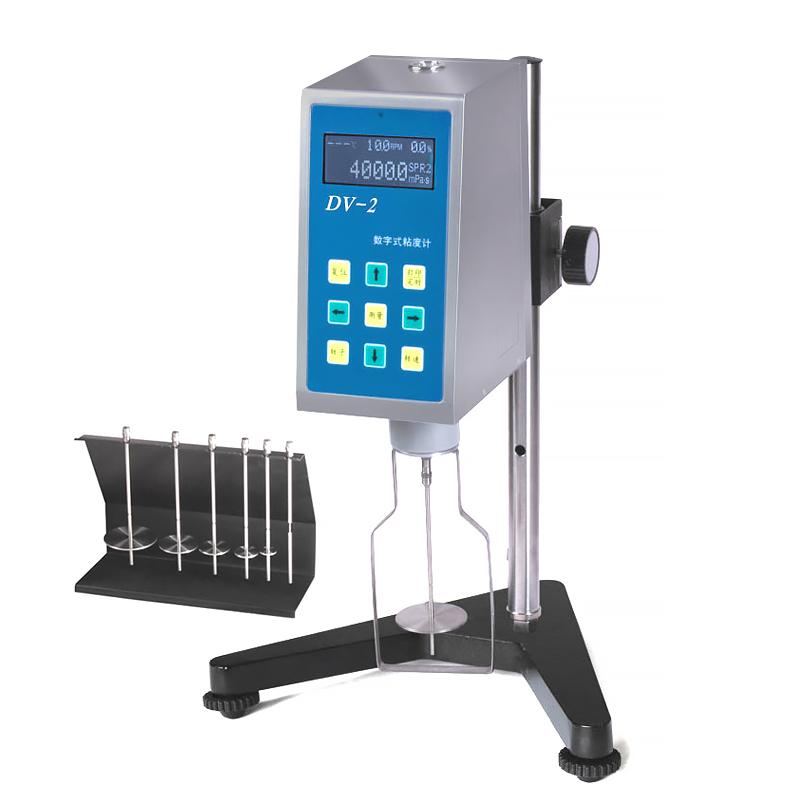

HUINUO HBDV-2 digital display Rotational Viscometer 32 million CP with a small number of sample adapters

HBDV-2+SSA

Digital Rotational Viscometer

Measurement range 320~320000000mPa · s, rotor specifications R2, R3, R4, R5, R6, R7, 21 #, 27 #, 28 #, 29 #, reproducibility +/- 0.5% F. S, Measurement accuracy +/- 1% F. S, capacity 10~20mL, Rotation speed Control mode continuously variable.

Introduction

The LCD screen of the HBDV-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, speed, temperature, percentage meter torque, rotor number and the maximum viscosity value that can be measured by the selected rotor at the current speed. It is a digital rotary viscometer with a range of 320~320,000,000 mPa · seconds.

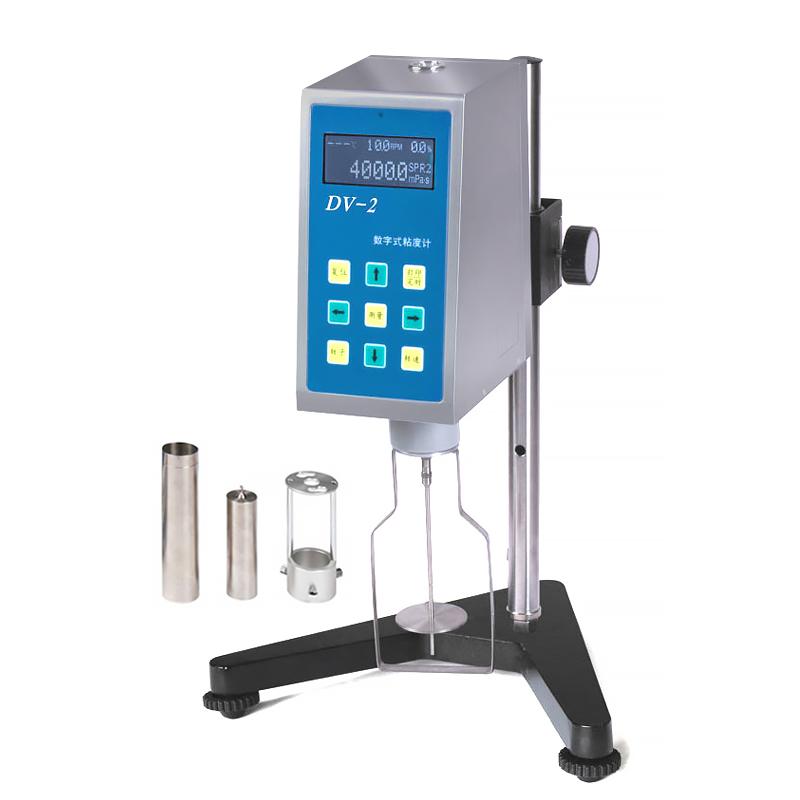

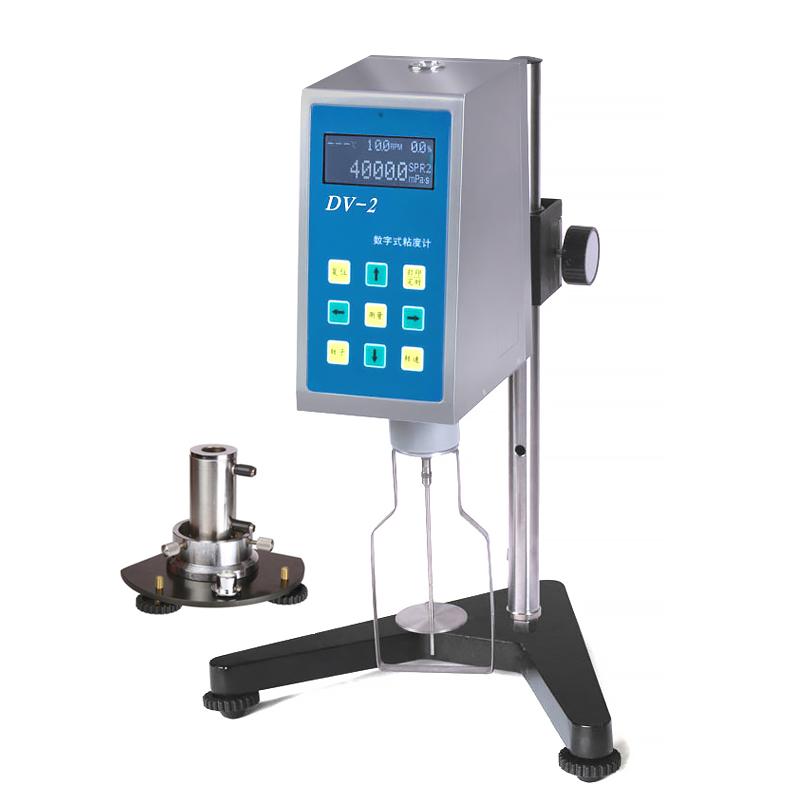

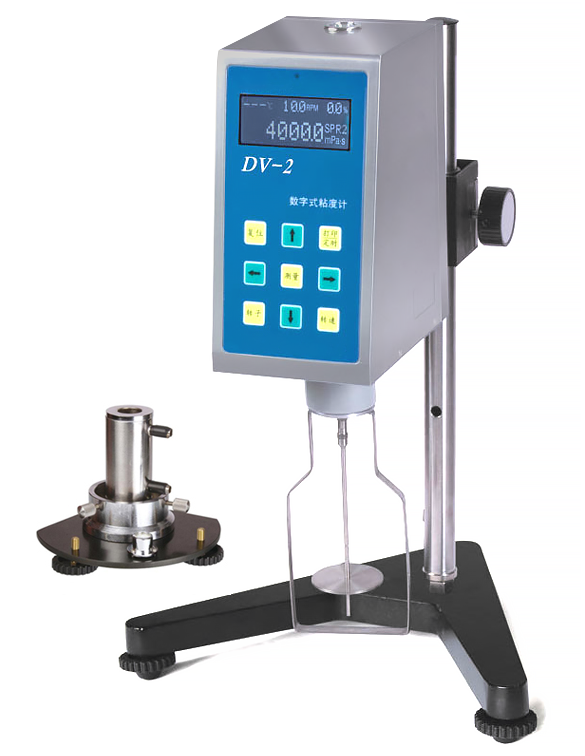

Introduction to small sample adapters

• It is equipped with 21, 27, 28 and 29 rotors

• The sample volume is small, only 10~20mL, especially suitable for valuable sample testing

• A thermostat connected to an external circulation function controls the temperature of the sample to be measured

• Easy to disassemble and easy to clean

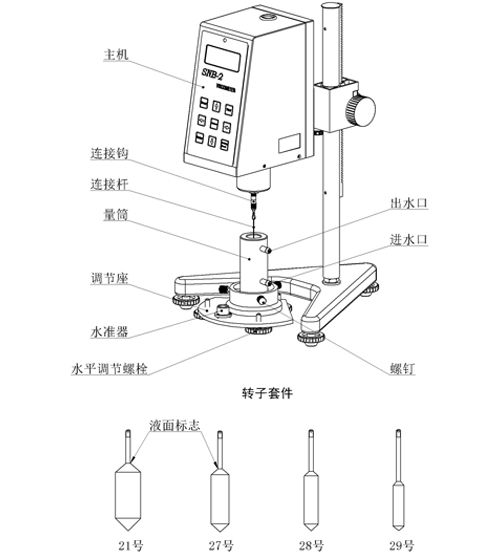

Viscometer structure diagram

Packing list：Host X1, protective frame X1, rotor X1 (set), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, a small number of sample adapters X1 (set)

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
