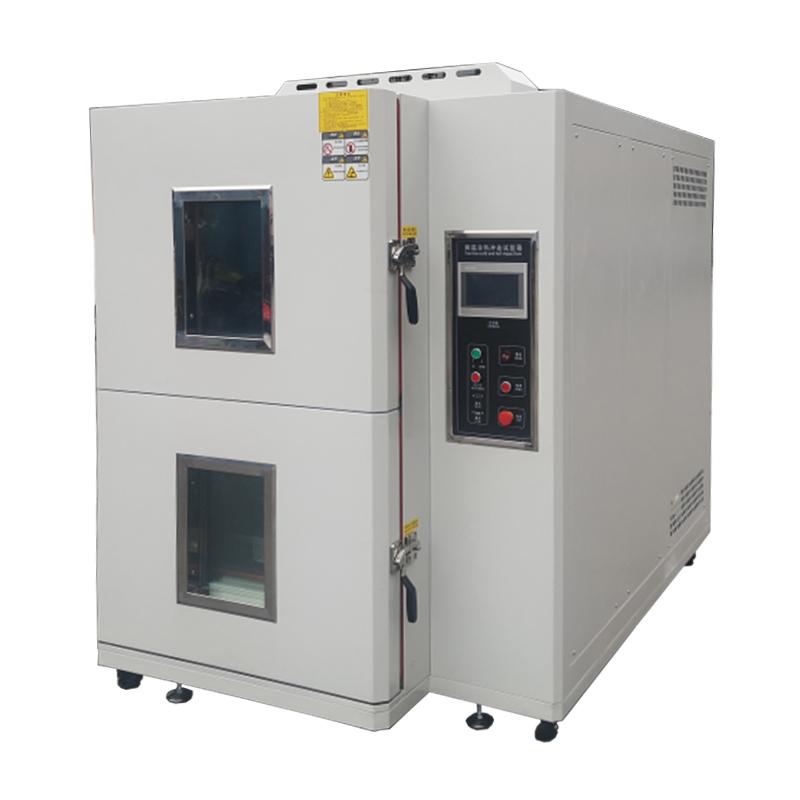

AISRY NBC-150B Thermal Shock Test Chamber
SE
NBC-150B
AISRY NBC-150B Thermal Shock Test ChamberSPEC
AISRY NBC-150B Thermal Shock Test ChamberDetails
AISRY NBC-150B Thermal Shock Test ChamberPacking list
- SKU
- NB047631
- Test Chamber Temperature Impact Range
- High-temperature chamber: + 50 ℃~ 180 ℃; low-temperature chamber: 0 ℃~ -55 ℃
- Temperature Fluctuation
- ±2℃;
- temperature error
- ±2℃;
- Cooling rate
- From room temperature~ -55 ℃ ≤ 60min;
- Power Supply
- 380V±38V50Hz±1Hz
- Power
- About 18Kw
- Hanging basket load-bearing
- Within 20Kg.
- Volume L
- 150L
- Temperature and Humidity Control Instrument
- Programmable platform Controller, touch screen input, Chinese and English switching. Different temperature points can be arbitrarily set according to customer requirements
- Box structure
- This equipment is divided into: high temperature zone, low temperature zone
- Test area size
- 600 * 600 * 420 (width * depth * height) * 2
- Exterior size approx.
- Width 1390x Depth 2120x Height 1820mm
- Test Temperature Impact Range
- -40 ℃~ + 150 ℃ (optional programming setting)
- High-temperature chamber Temperature range
- + 60 ℃~ + 180 ℃ (optional programming setting)
- Low-temperature chamber Temperature range
- 0 ℃~ -55 ℃ (programmable arbitrary setting) Temperature range -40---150 degrees
- Temperature transition time
- 10 seconds (time can be specified)
- Controller control Accuracy
- ±0.2℃
- shell material
- Sheet metal paint
- Inner box material
- SUS #304 Thickened heat-resistant and cold-resistant stainless steel plate, first-class light panel
- Thermal Insulation
- High density Glass cotton and high strength PU foam insulation materials have good thermal insulation effect
- box uniformity
- ±2
- Air supply circulation system
- Japanese multi-wing centrifugal Circulating Fan, Japanese motor whole group
- heater
- U-shaped fin type 304 #seamless steel high-speed heating electric heater.
- Refrigeration compressor
- Adopt imported Compressor unit
- Refrigeration accessories
- Table bending center force evaporator, Mar fan, etc
- Refrigeration method
- Adopt water-cooled heat dissipation (water towers, pipes, the buyer installs them by himself)
- Sample holder
- Hanging Basket
- Electrical accessories
- Domestic well-known brand electrical components
- wiring method
- The company's electronic control wiring method is implemented in accordance with international electrical standards
- Protection device
- Compressor overheating, overtemperature, overload, high Voltage, low pressure, oil pressure, overcurrent, under-phase, power failure standby and other alarm warnings.,
- Power Supply
- AC380V 50~60Hz 18KW
- Meet the standard
- GB2423 [1] .02 High temperature test method, GB2423 [1] .01 Low temperature test method.
The NBC-150B Thermal Shock Test Chamber is mainly used to test the resistance of materials to extremely high or low temperatures, which is similar to the situation of discontinuous high or low temperatures, and the thermal shock test can make various items complete the test in the shortest time. The changes or physical injuries caused by thermal shocks are caused by changes in thermal expansion and contraction or other physical values, and all kinds of products can be fully trusted by using the PID system. The effects of thermal shock include electrochemical changes caused by cracking or breaking layers and displacement of the finished product, and the full digital automatic control of the PID system will make it easy for you to operate.
The thermal shock testing machine is the testing equipment required by the metal, plastic, rubber, electronic and other material industries, which is used to test the material structure or composite materials, which can withstand the degree of extreme high temperature and extremely low temperature continuous environment in an instant, so as to detect the chemical changes or physical injuries caused by thermal expansion and contraction of the test sample in the shortest time. It is divided into two-box and Three-Chamber, the difference is that the test method and internal structure are different, and the product meets the requirements of the standard for: GB/T2423.1-2008 test A, GB/T2423.2-2008 test B, GB-T10592-2008, GJB150.3-198, GJB360A-96 method 107 temperature shock test.
Application
Thermal shock Test Chambers are widely used in electronic and electrical components, automation parts, communication components, auto parts, metals, chemical materials, plastics and other industries, national defense industry, aerospace, military industry, BGA,PCBBase wrench, electronic chipIC, the physical changes of semiconductor ceramics and polymer materials, testing the repeated tensile force of the materials to high-low temperatures and the chemical changes or physical damage of the products in thermal expansion and contraction, can confirm the quality of the products, from precision ICs to heavy mechanical components, can be used as the basis or reference for product improvement.
Meets standards
GB-2423.1-89 (IEC68-2-1) Test A: Low temperature test method
GB-2423.2-89 (IEC68-2-2) Test B: High temperature test method
GJB360.8-87 (MIL-STD-202F) High Temperature Life Test
GBJ150.3 (MIL-STD-810D) High Temperature Test Method
GJB150.4 (MIL-STD-810D) Low Temperature Test Method
National military standard GJB150.3-86
National military standard GJB150.4-86
National military standard GJB150.5-86
