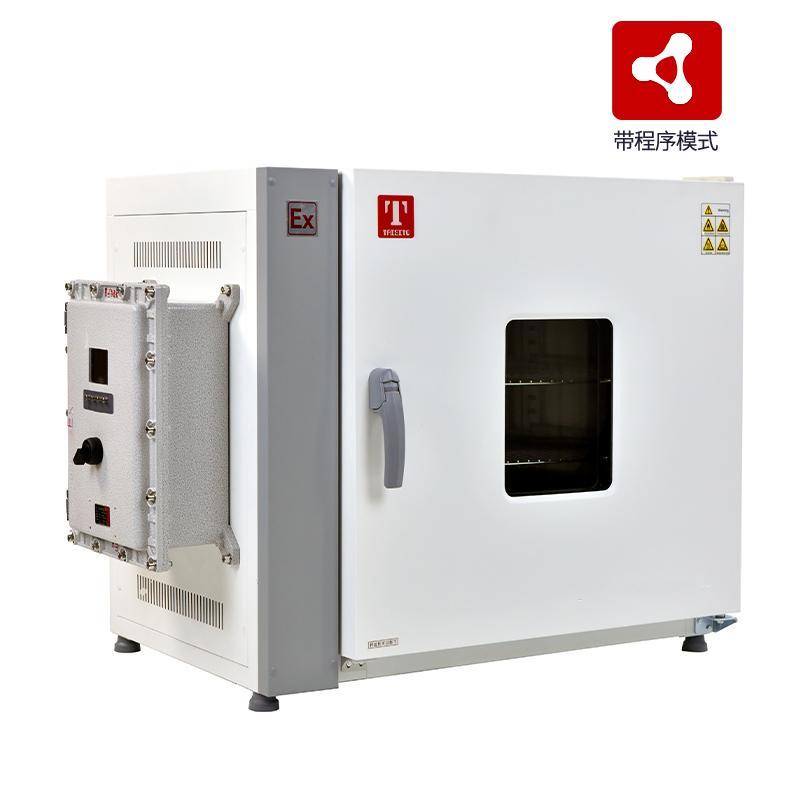

TAISITE TEX-71WG explosion-proof Forced Air Drying Oven 71L/1.6KW
TEX-71WG
TaiSiTe TEX-71WG Explosion-proof Forced Air Drying OvenSPEC
TaiSiTe TEX-71WG Explosion-proof Forced Air Drying OvenDetails
TaiSiTe TEX-71WG Explosion-proof Forced Air Drying OvenPacking list
- SKU
- NB047638
- way
- Forced circulation of crosswind duct
- Temperature range
- RT+10~250℃
- Temperature Resolution
- 0.1℃
- Temperature Fluctuation
- ±1 ℃
- Temperature Uniformity
- ±2.5%
- Interior
- stainless steel plate
- exterior
- Cold rolled steel plate, surface resistant painting
- heat insulation material
- aluminum silicate fiber
- heater
- Stainless steel heating tube (explosion-proof qualification)
- Rated power
- 1.6KW
- Exhaust Port
- Inner diameter 28mm * 1; top test hole
- Temperature Control mode
- LCD dual PID control
- Temperature setting method
- Tap the explosion-proof four-button setting.
- Temperature representation
- Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display
- timer
- 0~9999 minutes (or hours), Timer function can be selected (none, thermostatic Timer, running Timer)
- Operational Features
- Fixed-value operation, regular operation, automatic stop, scheduled start
- Program Mode
- optional
- External connection protection
- Explosion-proof armored PT100 (explosion-proof qualification)
- Sensors
- Adopt explosion-proof flexible connecting pipe set (with explosion-proof qualification)
- Additional features
- Deviation correction, menu button lock, power failure memory, overlift preventer
- Explosion-proof level
- Ex de mb JB T4 Gh
- Inner Dimensions (width "depth * height mm)
- 450*350*450
- Dimensions (width * depth * height mm)
- 855*530*655
- Packing size (width "depth" height mm)
- 1040*642*811
- Internal Volume
- 71L
- Shelf load bearing
- 15kg
- Shelf layer
- The 13th floor.
- Shelf spacing
- 25mm
- Power supply (50/60Hz) rated current
- AC220V/7.3A
- Net Weight/Gross Weight kg
- 46/70
- Shelf
- 2 pieces
- Shelf
- 4 pieces
- Optional Accessories
- Explosion-proof barrier, explosion-proof hinge, explosion-proof pressure relief door, explosion-proof seven-inch touch screen instrument (with Linear dispersion, program function), explosion-proof mouse
Features
The box body adopts flameproof type, the equipment and electrical appliances adopt the overall explosion-proof technology, and the explosion-proof control box is centralized protection to prevent the leakage of unsafe factors such as high temperature and static electricity and sparks.
The inner tank of this equipment is mainly composed of drying box, explosion-proof heating system, explosion-proof electrical control and other parts, and the inner tank is made of brushed stainless steel, and the shell is made of high-quality steel plate, which is beautiful and generous, and the inner tank is easy to clean.
Side air duct air jacket, centrifugal forced air supply, uniform temperature.
Pull-out tray partition for easy sampling and quick connection (225 type is filamentous partition).
LCD multi-data full-screen operation display, power failure memory, power failure compensation.
Convenient operation, fixed value operation, timed operation, automatic stop.
It is heated by explosion-proof 304 stainless steel heating tube.
Explosion-proof flexible connecting pipes are used for exposed connecting wires to isolate electrostatic sparks and temperature leakage to ensure safety.
Overlift alarm, menu lock, overlift prevention.
Application
It is used in petroleum, chemical, medical, pharmaceutical, scientific research, laboratory and other related fields.
Enforce the standard
GB/T30435-2013
Explosion-proof rating
ExdembIIBT4Gb
