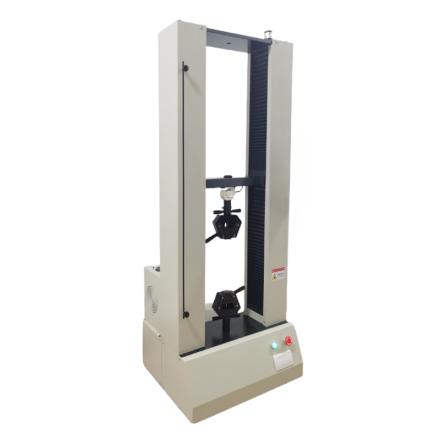

Brand：HBO
Model：LYD-5T
Name：Gantry microcomputer controlled universal testing machine
Specifications
| range | 50KN；5000KG |
| Load Graduation | 1 N 0.1kg 0.1lb |
| Deformation resolution | 0.001mm |
| unit | Force units: gf, Kgf, N, KN, tf, Lbf; Displacement units: mm, cm, in |
| Harvesting Frequency | 50HZ |
| Force error of indication | ≤±0.5% |
| itinerary | 1000mm |
| test width | 350mm |
| Displacement Accuracy | ≤± 0.05mm |
| speed range | 1-200mm/min |
| An indication of speed error | ≤±1% |
| Power system | Stepper motor |
| Power Supply | AC 220V 50HZ |
| size | 620*470*1650mm |
| Weight | 177kg |
Packing list
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/47656/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
