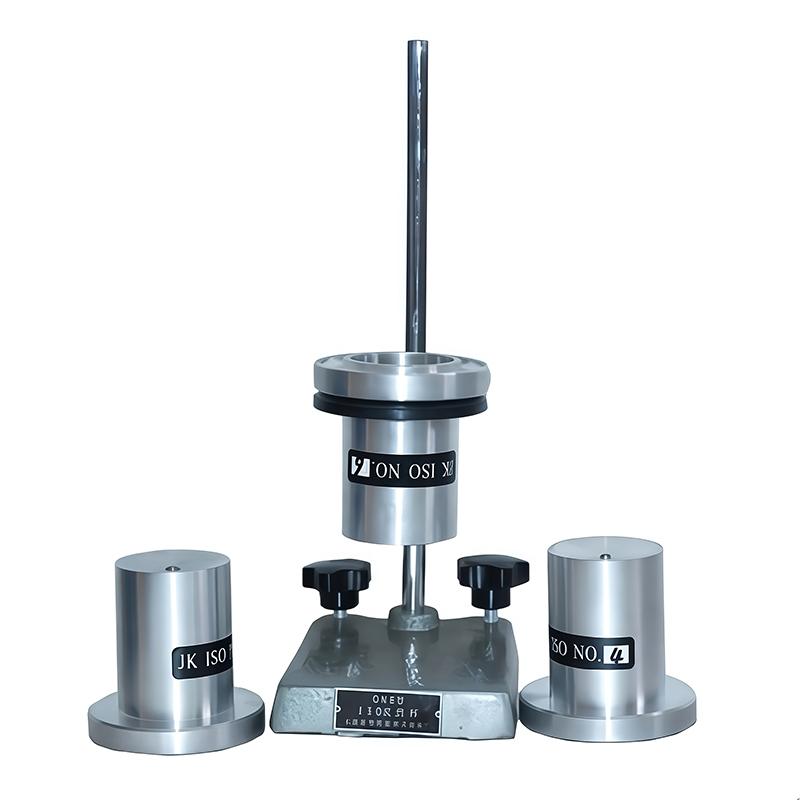

JINGKELIAN QNB No. 6 ISO Flow Cup outflow time 30s ≤ t ≤ 100s diameter 6mm

SE
Viscosity range 134~ 685cSt, outflow time 30~100s, flow hole diameter 6mm, cup body material stainless steel, filter material stainless steel, Applicable standard ISO 2432-1993, GB/T6753.4-86
$138.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con OI
Similar products

JingKeLian QNB 6 ISO Flow CupSPEC

JingKeLian QNB 6 ISO Flow CupDetails

JingKeLian QNB 6 ISO Flow CupPacking list

SKU
NB004767
Viscosity range
134~685cSt
outflow time
30~100s
Flow hole diameter
6mm
Cup body material
stainless steel
Filter material
stainless steel
Applicable standard
ISO 2432-1993、GB/T6753.4-86
Certificate
without
QNB 6
ISO Flow Cup
Viscosity range 134~ 685cSt, outflow time 30~100s, flow hole diameter 6mm, cup body material stainless steel, filter material stainless steel, Applicable standard ISO 2432-1993, GB/T6753.4-86
JINGKELIAN QNB No. 6 ISO Flow Cup outflow time 30s ≤ t ≤ 100s diameter 6mm Picture

Introduction of ISO outFlow Cup

JinKeLian QNB ISO outFlow Cup has three types of outflow Viscosity Cups, QNB No. 3, No. 4 and No. 6. This ISO outFlow Cup is developed by integrating the relevant provisions of the national standard and the international standard. It adopts stainless steel material. QNB No. 3/No. 4/No. 6 ISO outFlow Cup is used to test the outflow time of Newtonian or near-Newtonian liquids, and the applicable test outflow time range is 30s~100s.

application standard

1. International standard ISO2432-1993 "Determination of outflow time with outFlow Cup for paints and varnishes" (fourth edition)

2. National standard GB/T6753.4-86 "Determination of coating flow time - ISO Flow Cup method"

Specifications

modelOutlet diameter (mm)Viscosity range (mm²/s)
QNB No. 33.0± 0.01mm7-40 mm²/s
QNB No. 44.0± 0.01mm35-135 mm²/s
QNB No. 66.0± 0.01mm134-685 mm²/s

Other parameters

Executive standardGB/T6753.4-86, 1ISO243-1993
outflow time30s≤t≤100s

Introduction

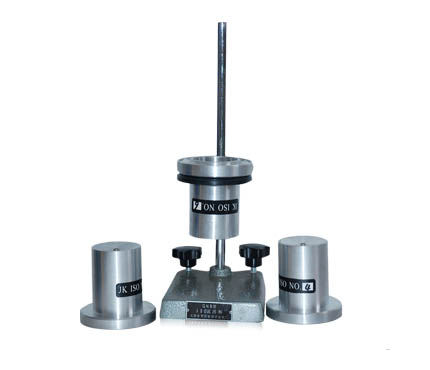

Details of JinKeLian QNB No. 6 ISO outFlow Cup 1

FAQ
QIs the flow cup of this number suitable for the viscosity test of vehicle topcoat Coatings?
A suitable
QDo you have the ISO flow cup involved in ASTMD5125?
A The QNB No. 6 ISO flow cup will do.
QCoating viscosity measured by flow cup method, must be at the specified temperature? If not according to the specified viscosity will have any impact?
A Viscosity cup measurement generally has 3 variables, viscosity, outflow time and temperature. Temperature is specified in many viscosity measurement standards because temperature has a large impact on viscosity, and the change of viscosity with temperature may not be dominant, and any diluted material used to adjust viscosity may also change the rate of this change.
QDoes ISO 6MM refer to the No. 6 cup?
A The No. 6 cup is evolved from the coated-4 cup (4mm), which is actually not rigorous. Different standards such as ISO, GB, ASTM, etc. have the same or similar diameter viscosity cup, depending on the standard you want to meet.
