Brand：HBO
Model：ZYD-200

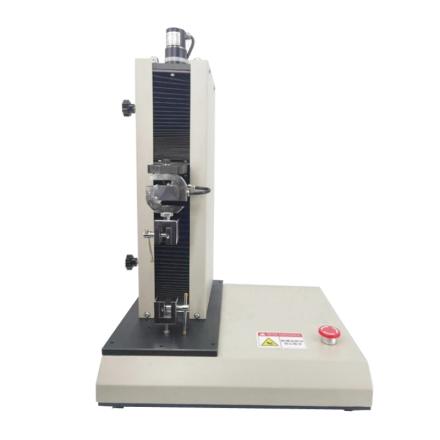

Name：Desktop Microcomputer Controlled Universal Testing Machine
Specifications
| range | 200N；20Kg |
| Load Graduation | 0.1N0.01Kg0.01lb |
| Deformation resolution | 0.001mm |
| Force unit | gf、Kgf、N、KN、tf、Lbf |
| mining frequency | 50HZ |
| Force error of indication | ≤±0.5% |
| itinerary | 170mm |
| test space | 260Mm (without fixture) |
| Displacement Accuracy | ≤± 0.05mm |
| speed range | 1-400mm/min |
| An indication of speed error | ≤±1% |
| Power System | Stepper motor |
| Power Supply | AC 220V 50HZ |
| Dimensions | 450*380*640mm |
| Weight | 48kg |
| displacement unit | mm、cm、in |
Packing list
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/47673/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
