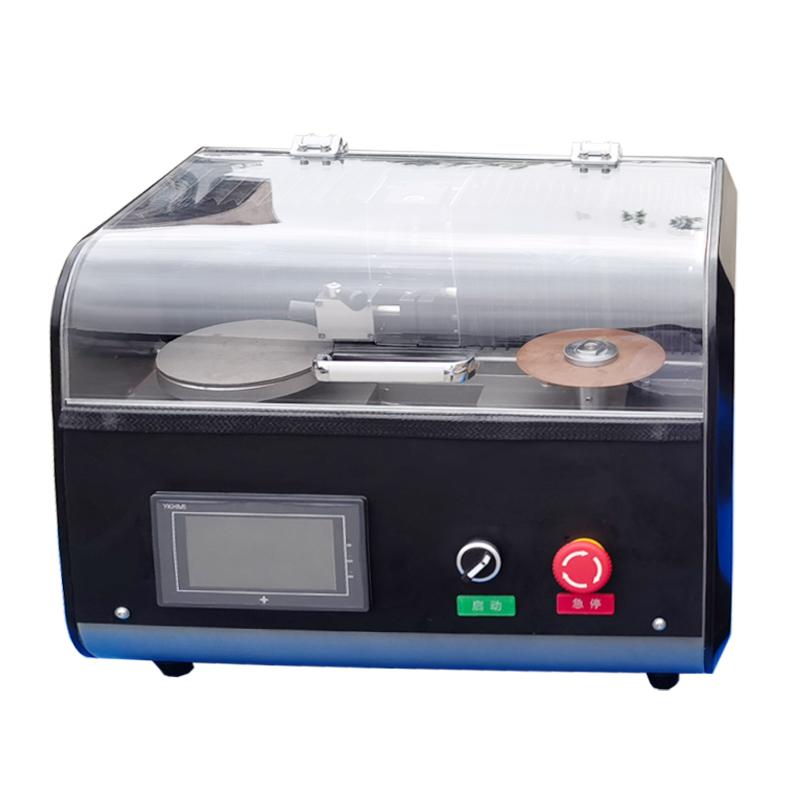

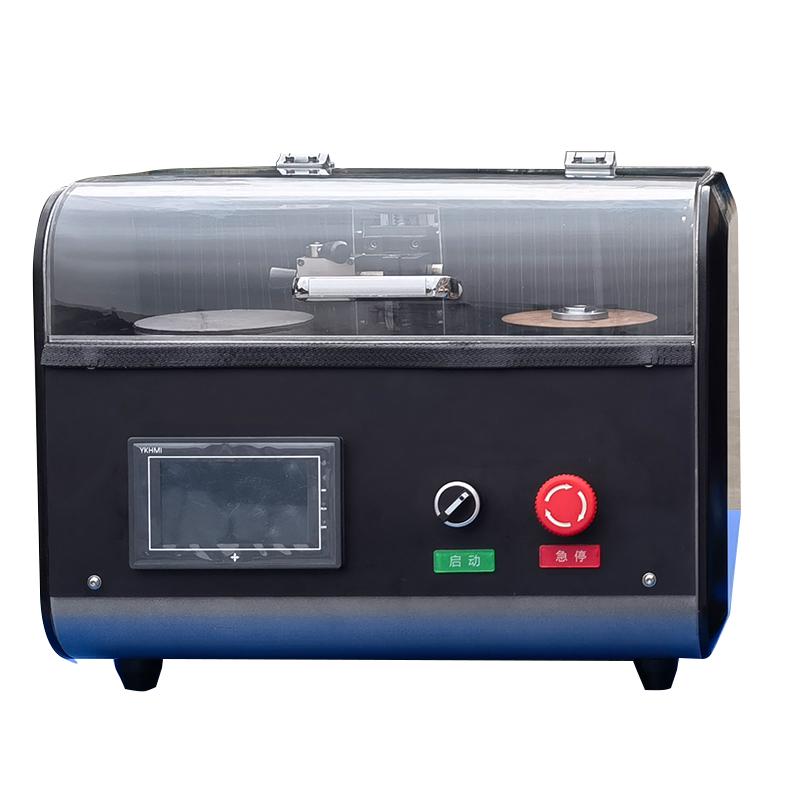

Chinese NBC-7053 Automatic Terminal Section Analyzer, Automatic

NBC-7053

Automatic terminal section analyzer

Cutting range 0.05mm2 to 50.00mm2, speed 2800rpm, power 40W, sanding speed 1400rpm/min, grinding disc diameter 120mm, Z fine-tuning range can be automatically set, magnification 0.7X/1X/1.5X/2.0X/2.5X/3.0X/3.5X/4.0X/4.5X, gear fixed times 0.7~ 4.5.

Introduction

The whole system is composed of terminal cutting, grinding equipment (all-in-one machine), corrosion (special), microscopic imaging system, terminal analysis system, standard identification ruler (0.1mm), LED light source, computer and other units, the terminal microanalysis system can observe the object when the three-dimensional sense is strong, the imaging is clear, with a long working distance, the use of ergonomic design, modular combination, assembly line workflow, so that the operation is more convenient and fast. It saves time and effort, and greatly improves the speed of terminal section quality inspection.

Features

Samples are easy to make and do not need to solidify with resin

It only takes 3~5min for this system to make a sample, which saves you a lot of time and improves work efficiency. The traditional resin solidification method is to cure the sample with resin, cut off the resin, coarse grind, and grind. It takes hours to make a sample and can affect the accuracy of the measurement.

Terminal-specific clamps are available to fit a wide range of terminal sizes

The newly developed clamp can be adapted to a wide range of terminal types. When cutting and grinding, there is no need to worry about the deformation of the bite wire teeth or the flying out of the core. There is no need for special skills, the software operation is accurate and fast, one-click start to complete the calculation of the value and type the corresponding report, the operation is simple and convenient, and the work efficiency is improved.

Packing list：Host X1, fixture X1, cutting abrasive wheels X 5, grinding sandpaper X 5, image reduction cleaning solution X1 (50ml), Microscope X1, computer X1, software X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
