Specifications
| range | 300N、30Kg |
| Load Graduation | 0.01N、0.001Kg、0.001lb |
| Deformation resolution | 0.001mm |
| Force unit | gf、Kgf、N、KN、tf、Lbf |
| Force error of indication | ≤±0.5% |
| speed range | 1-400mm/min |
| An indication of speed error | ≤±1% |
| itinerary | 220mm |
| Test space | 220mm |
| Displacement Accuracy | ≤±0.05mm |
| platen diameter | 50mm/78mm/108mm |
| Power system | Stepper motor |
| Power supply Voltage | AC 220V 50HZ |
| Dimension | 450*380*640mm |
| Weight | 48kg |
| displacement unit | Mm, cm and in |
Packing list

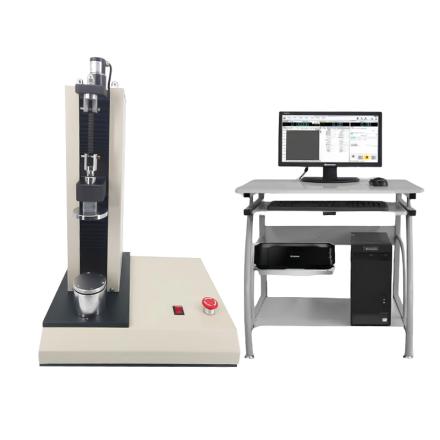

Desktop microcomputer controlled spring testing machine x1, pin x2, remote control x1, data cable x1, wrench x1, foot pads x4, manual x1, inspection certificate x1, warranty card x1, wooden box x1, power cord x1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/47755/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
