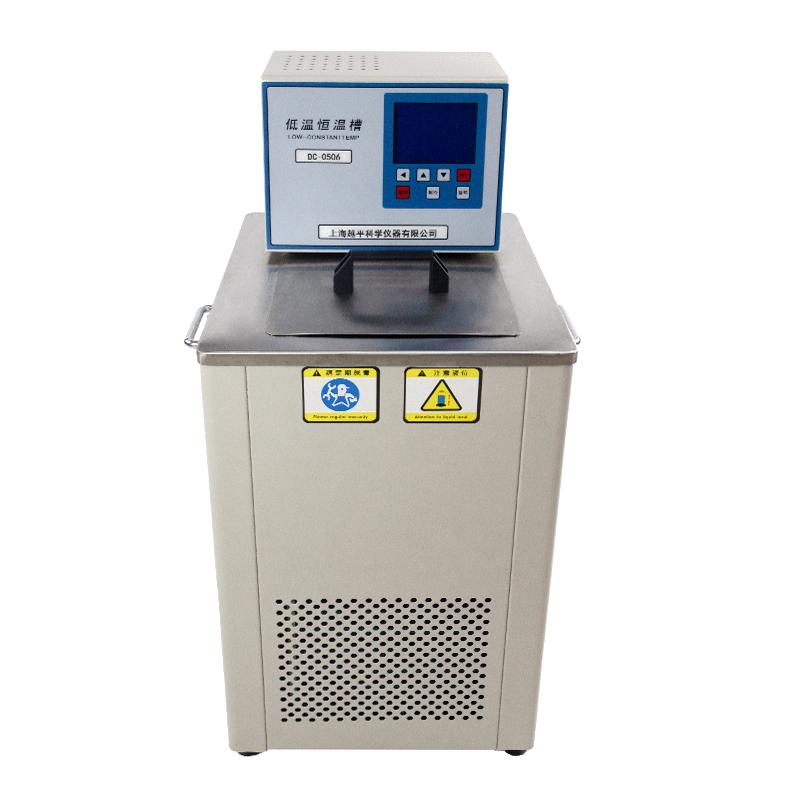

YUEPING DC-1020 Thermostatic Bath volume 20 liters Temperature range -10 ℃~ 100 ℃

DC-1020

Thermostatic Bath

Temperature range -10~100 ℃, Temperature Fluctuation 0.05 ℃, Temperature resolution 0.01 ℃, Working tank volume 20L, slot opening size 235 * 160 * 280mm, Temperature control mode Microcomputer temperature control, PID adjustment, circulation mode Internal/external circulation

Introduction of DC-1020 low temperature constant temperature bath

Yueping DC-1020 low temperature constant temperature bath is a desktop low temperature constant temperature bath with a volume of 20 liters and a temperature control range of -5°C~100°C. The depth of the DC-1020 low temperature constant temperature bath is 280mm and the power is 1.9KW.

Specifications

Features

1. It is widely used in chemical industry, petroleum, medicine, biology, physical chemistry, metrology, colleges and universities, electronic instruments, scientific research institutions and other fields for experiments, testing and enterprise production in a place with controlled cold and heat and uniform temperature. Samples or produced products are subjected to constant temperature trials or tests.

2. The DC-1020 Low Temperature Circulating Bath adopts PID automatic control, LED liquid crystal digital display mode, real-time observation data.

3. The external circulation pump can output the constant temperature liquid in the tank to the outside, and establish a second constant temperature field outside the tank to expand the scope of use.

Optional

♦Optional RS232 or RS485 communication interface to realize data transmission for remote control.

♦Procedural temperature control system can be selected, Features are:

 Large-screen LCD display, software program control, editable time/temperature curve.

 Multi-stage programmable temperature and time programs can control the process of heating, constant temperature and cooling, and the heating speed and cooling speed can be automatically controlled according to user requirements.

 Up to 30 temperature/time periods can be programmed and stored, and each program can be set to run from 0 to 9999 minutes.

 A variety of parameter setting methods: convenient and fast input keys, shift keys and increase and decrease keys, set temperature/time period and other advanced control parameters or directly adjust the stored temperature/time setting program.

Application of DC-1020 low temperature constant temperature bath

Analytical instruments: spectrometer mass spectrometer viscometer polarimeter fermentation device rotary evaporator.

Vacuum acquisition and medical treatment: Molecular pump, diffusion pump, cooling blanket, X-ray machine, nuclear magnetic resonance accelerator.

Industrial equipment and others: laser equipment vacuum coating equipment biopharmaceutical mold machine tool vacuum furnace welding machine reaction kettle.

Packing list：1 host, 1 power cord, 1 rubber tube, 1 cover plate, 1 manual, 1 certificate/warranty card

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
