Specifications
| range | 2N.m、20kgf.cm |
| Torque resolution | 0.001N.m、0.0001kgf.cm |
| unit | N.mm、gf.cm、ozf.in、N.m、kgf.cm、lbf.in |
| Force relative error | ≤±0.5% |
| Swirl/spin range | 1-3000 ° adjustable (up to 5 test points can be set) |
| Angle resolution | 0.1° |
| Speed range | 0.5-60 (RPM) adjustable |
| Rotation speed resolution | 0.1RPM |
| altitude travel | 350Mm adjustable |
| Test space | 210*300*350mm |
| Operating temperature | 0℃-40℃ |
| Storage temperature | -20℃-70℃ |
| Relative Humidity | 15%-80% |
| Operating Environment | No vibration and corrosion medium around |
| Power supply Voltage | AC 220V 50HZ |
| Dimension | 500*300*730mm |
| Net Weight | 40kg |
Packing list

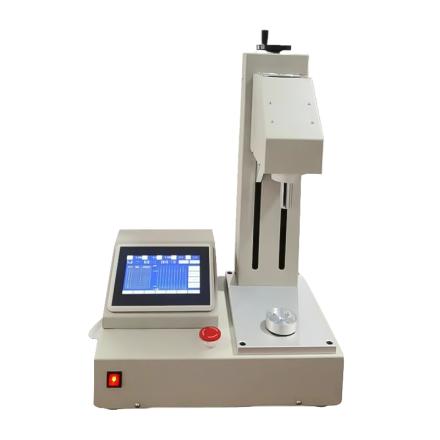

Intelligent Electric Torsion Tester * 1, Wrench x1, Foot x4, Manual x1, Inspection certificate x1, Warranty card x1, Wooden box x1, Power cord x1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/47794/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
