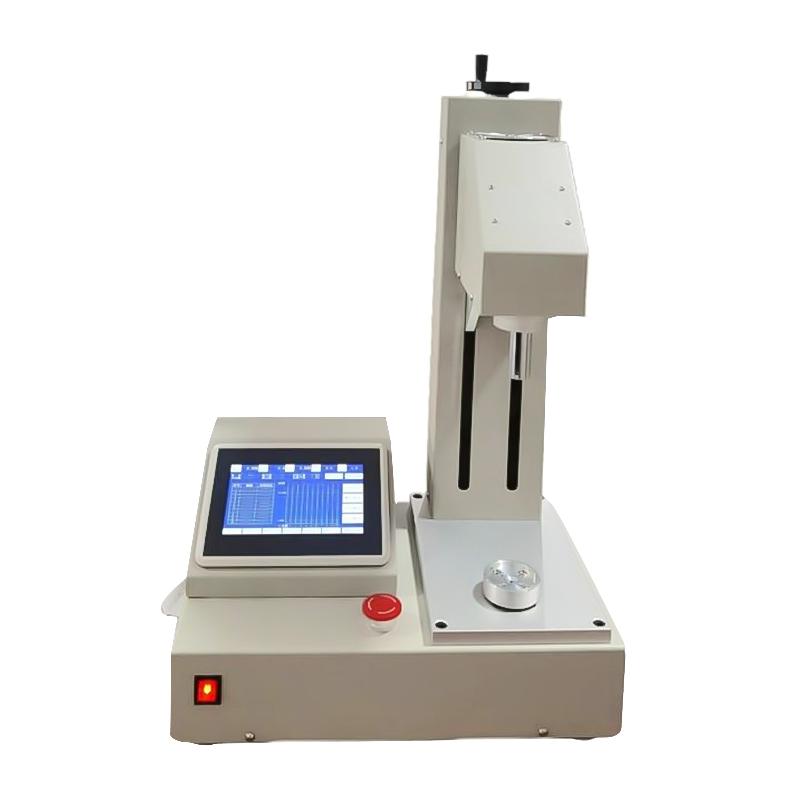

HBO HND-20 Intelligent Electric Torsion Tester Benchtop torque Rotation speed Tester 10N.m

HND-20

Intelligent Electric Torsion Tester

Range 20N.m, torque resolution 0.001N.m, 7-inch touch screen, can set the qualification range judgment, can customize 10 different test items, suitable for torsion springs, cochlear springs, parts, bolts, bottle caps, etc.

Introduction:

This series of electric torsion testing machines is mainly used in the measurement of torsional mechanical properties of materials and finished products, and the performance test of torsional failure. It is suitable for testing torsion angles and torsional moments of torsion springs, worm springs, parts, bolts, caps, elastic elements and friction mechanisms. This machine refers to the "JB/T 9370-1999", "JJG 269-2006" torsion testing machine standards and material test methods. It can be tested and provided according to national standards and ISO, JIS, ASTM, DIN and other international standards, and is a reliable testing equipment for industrial and mining enterprises, technical supervision, commodity inspection and arbitration, scientific research institutes, colleges and universities, quality inspection units and other departments.

Features

• High precision, high resolution, high stability

• 7-inch touch screen, friendly human-computer interface, simple and easy to use

• The six types of units N.mm, gf.cm, ozf.in, N.m, kgf.cm, and lbf.in are interchangeable at will

• Test direction display (counterclockwise, clockwise)

• There are two measurement modes: preset force mode and preset angle mode

• You can customize 10 different test items, set different test points respectively, and after saving for the first time, you can directly load the test in the future and start the test without setting it again

• You can set the qualification interval judgment

• 5 test points can be customized, and the tolerance torque value of the corresponding point can be set, and the test interface can display the deviation degree of the torque value of the test point in real time

• The test interface displays real-time stiffness, segmented stiffness, and overall stiffness

• 10 sets of test data can be saved, and the maximum, minimum, and average value of the torque value of each set point are automatically calculated and printed

• The corresponding torque value can be freely preset according to the needs of the test, and the equipment will automatically stop rotating when it reaches the target value

• The maximum peak test mode can be set to record the maximum value when the DUT slips or breaks

• The gravitational acceleration value is settable

Packing list：Intelligent Electric Torsion Tester X1, Wrench x1, Foot x4, Manual x1, Inspection certificate x1, Warranty card x1, Wooden box x1, Power cord x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
