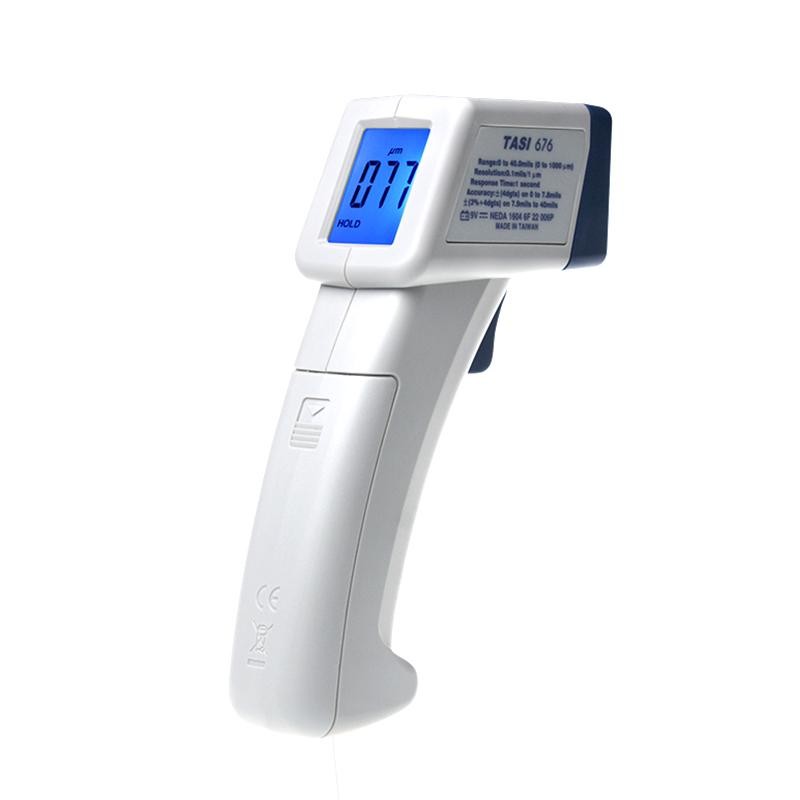

TASI TASI-676 film thickness meter Measurement range: 0~1000μm dual function type

TASI-676

Film thickness meter

Introduction

TASI-676 Gun Film Thickness Gauge is a handheld Film Thickness Gauge, magnetic and non-magnetic dual-function Film Thickness Gauge, which can detect both magnetic and non-magnetic metal substrates at the same time.The TASI-676 pistol Film Thickness Gauge has a built-in sensor that automatically recognizes different substrates for thickness measurement. The membrane Thickness Gauge is very ergonomically designed, the display is facing the surveyor, the buttons are designed in the hand part for easy one-handed operation, and the operation button is designed on the side of the Film Thickness Gauge for easy buttoning.

The TASI-676 Pistol Thickness Gauge not only has a display backlight reading function for reading the display reading in the dark, but also has an automatic reading lock function and an automatic shutdown function to extend battery life.

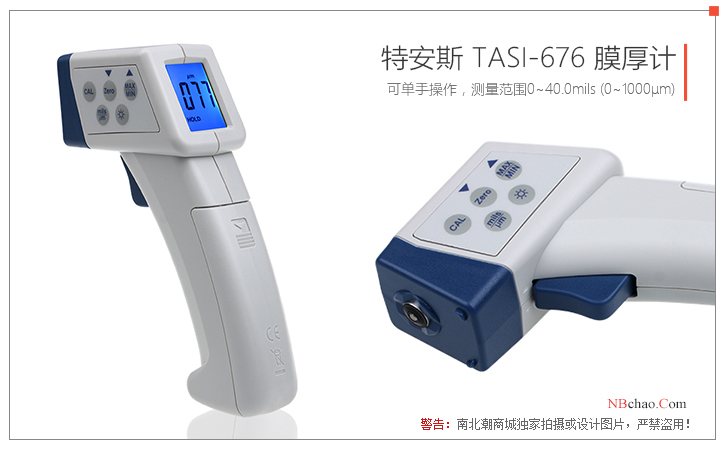

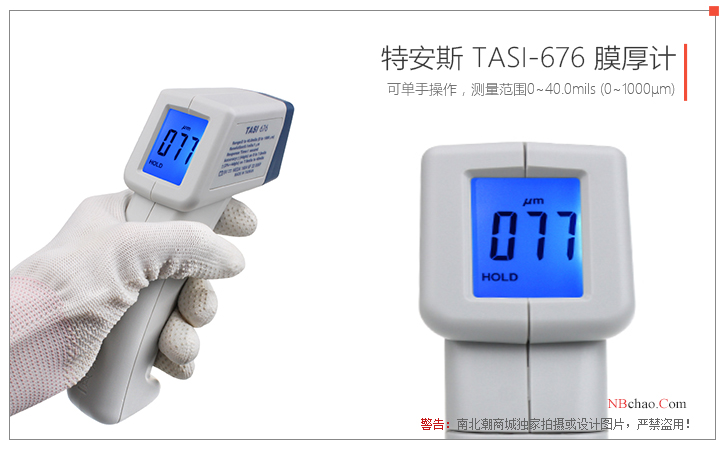

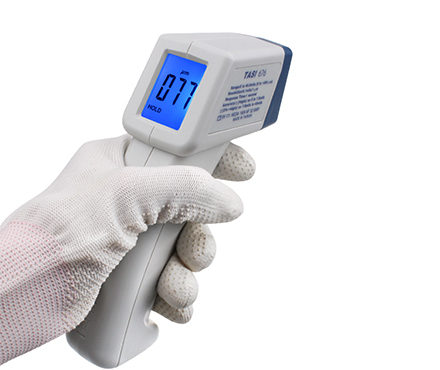

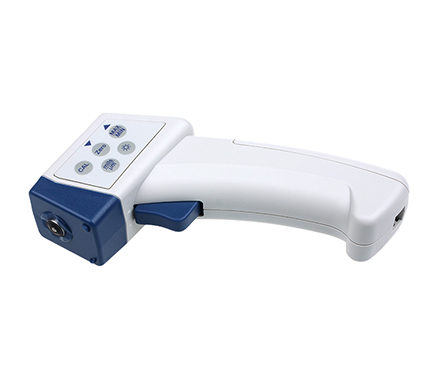

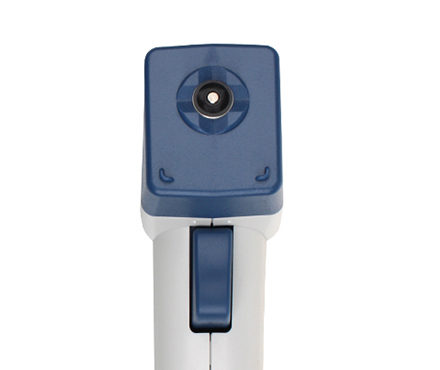

Live shot

Instructions

1. Make sure that the front end of the Film Thickness Gauge sensor is away from any substrate or magnetic field.

2. Press down the trigger until the screen is displayed, then release the trigger, and wait for the screen to display "um" or "mils" and HOLD before the measurement.

3.The front sensor of the TASI-676 pistol Film Thickness Gauge is partially attached to the object to be measured.

4. Gently pull the trigger and release it for measurement, and wait for the Film Thickness Gauge to display the reading.

5. The type of substrate will be displayed with the reading value, and the magnetic conductive substrate will show "Ferr".The magnetic conductive substrate is shown "Non-Ferr".

6. When the thickness to be measured exceeds the range that can be measured by the Film Thickness Gauge, the screen display will remain the same as before. The buzzer will only beep once. If notWhen the substrate type is displayed and the reading value is displayed as "run", that is, when the boot screen is displayed, it representsThe type of substrate is not discerned by a Film Thickness Gauge.

7.Gun typeThe Film Thickness Gauge automatically records each data, and can use the "MAX/MIN" key to switch the maximum value, minimum value, maximum minimum value, average value and total number of transactions.

8. Automatic Power Off (APO): If there is no operation of the Film Thickness Gauge for 15 seconds, the power of the Film Thickness Gauge will be automatically turned off to prolong the battery life.

Precautions for use

1. Before using the Film Thickness Gauge, please read the operation safety instructions and user manual

2. Do not place the Film Thickness Gauge near any device that generates a strong magnetic field or electrostatic field, as this may cause the Film Thickness Gauge to malfunction.

3. Do not use the Film Thickness Gauge when exposed to corrosive or flammable gases. This could disrupt the aftermath or cause an explosion.

4. Do not use the Film Thickness Gauge in an environment that is directly exposed to sunlight or condensation, as this may cause the Film Thickness Gauge to deform or the insulating cup to be damaged, or cause the Film Thickness Gauge characteristics to exceed the specifications.

5. One point correction: This action needs to be performed every time you take a measurement

6. Two-point calibration: It is recommended to perform this action at common test points to increase the accuracy of measurement.

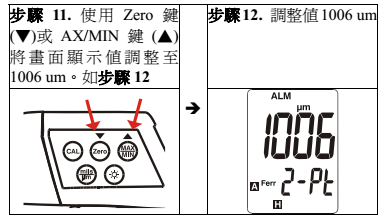

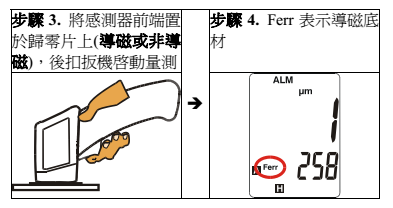

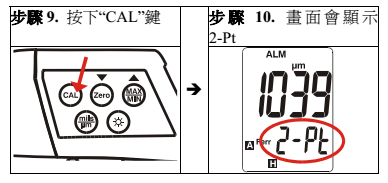

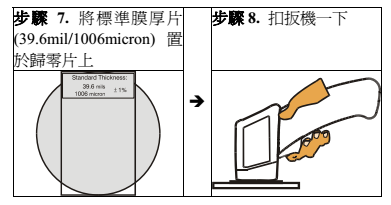

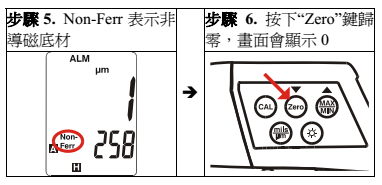

Two-point correction steps

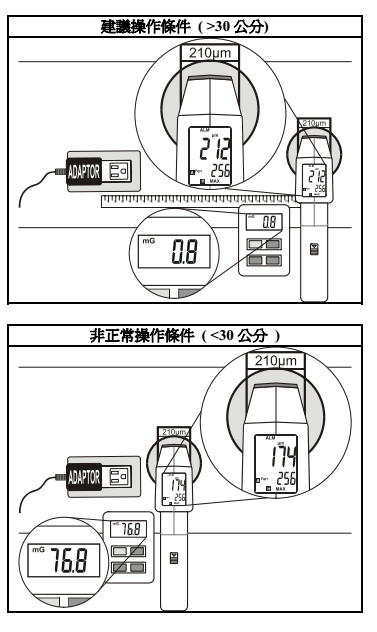

Schematic diagram of the proposed operating conditions

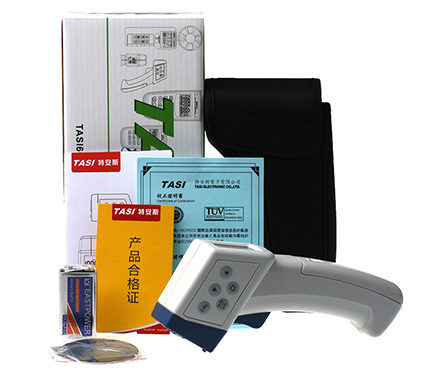

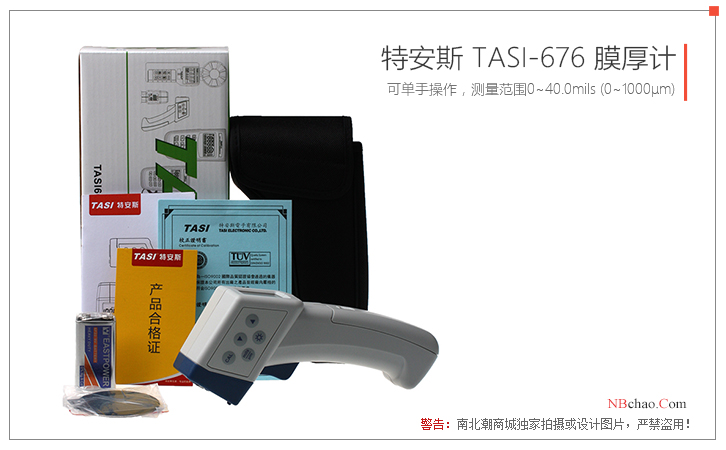

Packing list：Host x1, manual x1, battery x1, leather case x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
