CHINA TBJ-B2-DJ14 metering rod & drawdown blade Floor type automatic feeding Film Applicator Coating size 600 * 1000mm

SE
Wire rod + drawdown blade Coating method, with automatic feeding function, floor structure, effective Spreader area 600 * 1000mm.
$16394.00/set
PromotionLoading...
Coupon
Model：
Contact
Details SPEC Con VIDEO

zy TBJ-B2-DJ14 Automatic Film ApplicatorSPEC

zy TBJ-B2-DJ14 Automatic Film ApplicatorDetails

zy TBJ-B2-DJ14 Automatic Film ApplicatorPacking list

SKU
NB047827
Drawdown blade Accuracy
±0.05mm
Drawdown blade thickness range
0~10Mm drawdown blade can be lifted
Coating speed
5~ 180Mm/s (< 5mm/s can be customized)
Coating size
600*1000mm
Appearance structure
Floor type
Coating rod specification
Determine Spreader Thickness according to Wire Bar Model
Host Power Supply
220V 50Hz
speed control
Infinitely variable speed
Coating table material
aluminum alloy
Spreader Accuracy
±0.05mm
customizable function
Jet system device, UV solid inclusion device
Speed regulation Accuracy
1mm/s
Feeding principle
Air source pressure flows out
Feed Sport Mode
Reciprocating linear motion
Feeding back and forth traverse speed
2-150mm/s
spit Volume
Adjustable (by adjusting the air pressure and the running speed of the discharge port)
Shaft transmission mode
Timer belt
Feeding system air source
0.6Mpa, can be connected to the trachea of φ 8 (self-equipped)
Power Voltage of charging system
220V,50Hz
Tank pressure
Maximum withstand 8Mpa
Material of feeding barrel
304 stainless steel with a wall thickness of 4mm
Feeding bucket configuration
Safety valve, pressure regulating valve, pressure gauge, discharge valve
TBJ-B2-DJ14
Automatic Film Applicator
Wire rod + drawdown blade Coating method, with automatic feeding function, floor structure, effective Spreader area 600 * 1000mm.
CHINA TBJ-B2-DJ14 metering rod & drawdown blade Floor type automatic feeding Film Applicator Coating size 600 * 1000mm Picture

TBJ-B2-DJ14 floor-to-ceiling wire rod doctor blade coating machine is a fully automatic coating machine with an automatic feeding system. It adopts wire rod and doctor blade coating methods, with a coating width of 600 * 1000mm and a floor-to-ceiling structure design. It is suitable for cardboard, glass, plastic film, metal plate and other film proofing.

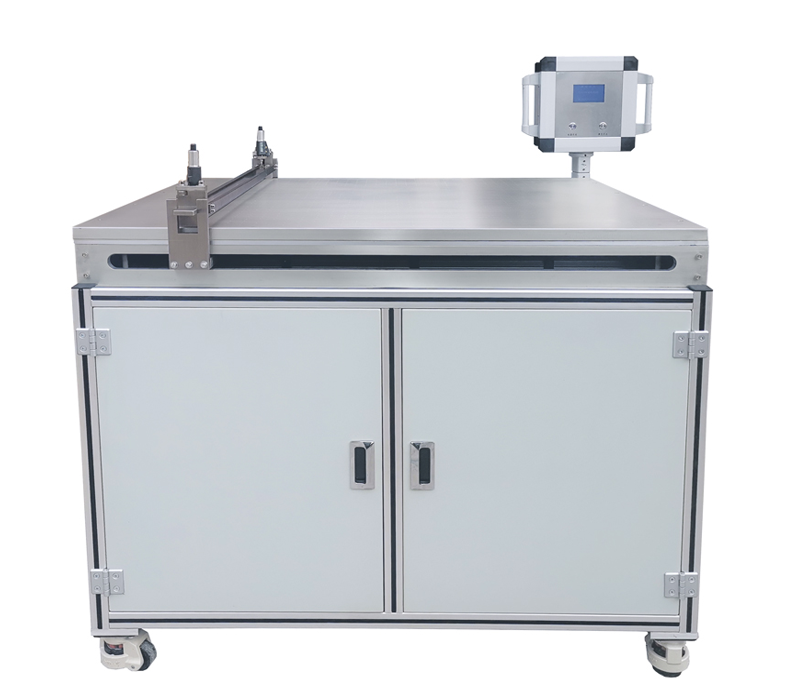

CHINA TBJ-B2-DJ14 metering rod & drawdown blade Floor type automatic feeding Film Applicator Coating size 600 * 1000mm Figure 1

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
