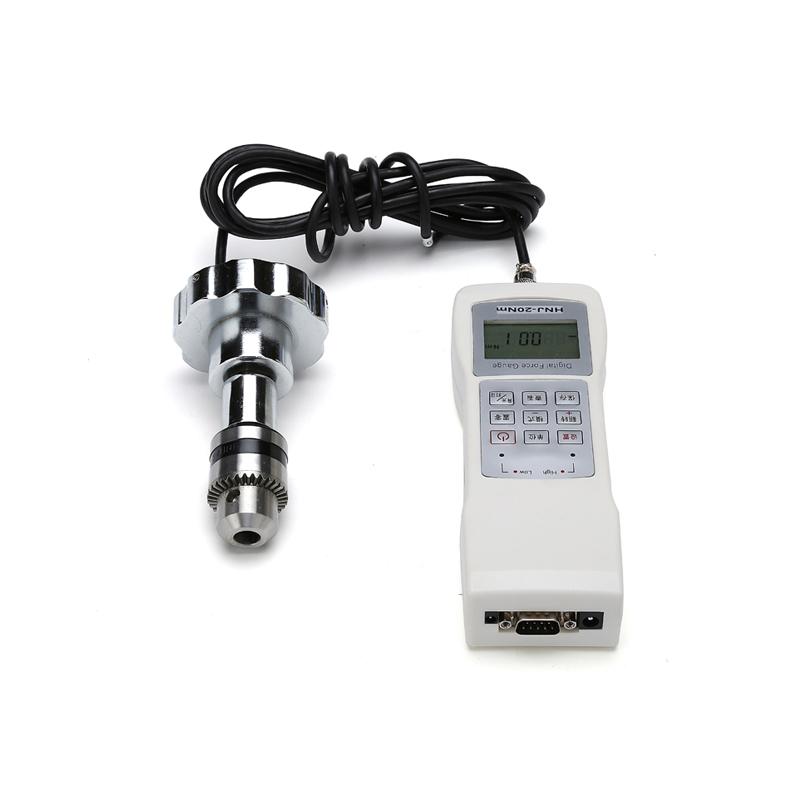

Portable torque Measurement Instrument HNJ-20 Hypertherm, Torque Tester, range 20N.m

HNJ-20

Digital Torque Gauge

Range 20N.m, resolution 0.01N.m, 0.5 Precision, Locking Drill Chuck Design, Segment LCD, Peak Hold Time and Gravity Acceleration Value can be set.

Product Applications

The HNJ series digital torque meter is a handheld torque measuring instrument. Mainly used to test the degree of tightness of the workpiece and the torsional resistance of some components, the locking drill chuck design can clamp a variety of rods or short workpieces. The instrument uses electronic sensor technology, which has the advantages of high accuracy, easy operation, and reliable data.

It is widely used in various quality inspections, physical experiments, engineering tests and other fields, and is equipped with a special upper computer operation software to connect to the computer for data storage, analysis, export, query and printing and other functions.

Features

1. High precision and high resolution, high stability, sampling speed up to 100HZ

2. Special instrument toolbox with EVA shockproof packaging, easy to transport, store and carry

3. Segmented LCD display with green backlit screen

4. The three units of N.m, kgf.cm, and lbf.in are automatically converted

5. Test direction display (counterclockwise +, clockwise -)

6. Three test modes: real-time torque value tracking mode, peak hold mode, first peak mode

7. The upper and lower limits can be set to compare the value to judge whether the data is qualified or not, and there is an audible alarm and level signal output

8. 99 sets of test data are stored, and the average, maximum and minimum values of the stored data are automatically calculated

9. Configurable peak hold time (0~99 seconds set)

10. The gravitational acceleration value is settable

11. Automatic shutdown can be set without operation (time can be set freely for 0~99 minutes)

12. With smart charging, it can be safely charged and prolong battery life

13. HOST COMPUTER SOFTWARE: Chinese WINDOWS INTERFACE

• The test results are displayed in a variety of coordinate curves: real-time torque value-time, peak torque value-times, first peak-times

• Qualified judgment: In addition to the automatic test results, the qualified judgment and batch testing pass rate can be made according to the qualified range of the preset standard value

• Automatic storage: Test data and curves are automatically stored in the computer, and the number of storage is unlimited

• Test data: The test data can be queried and exported in Excel format

• Test report: The test report can be prepared in the format required by the user, and the report can be formed and printed

Upper computer software display

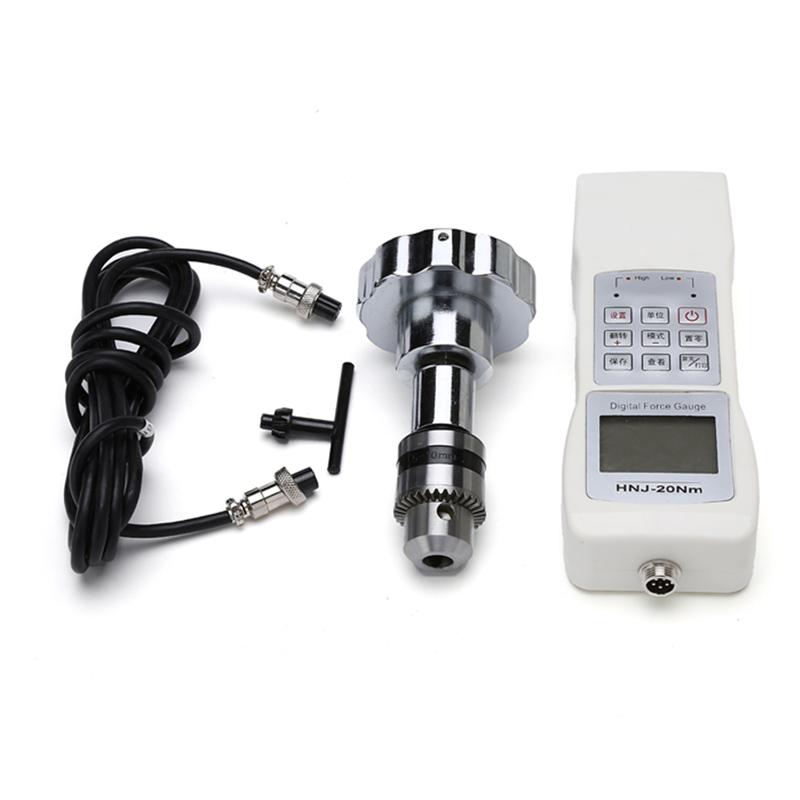

Packing list：Host x1, test head x1 set, charger x1, software x1, communication cable x1, signal cable x1, Encasement box x1, manual x1, certificate of conformity (warranty) x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
