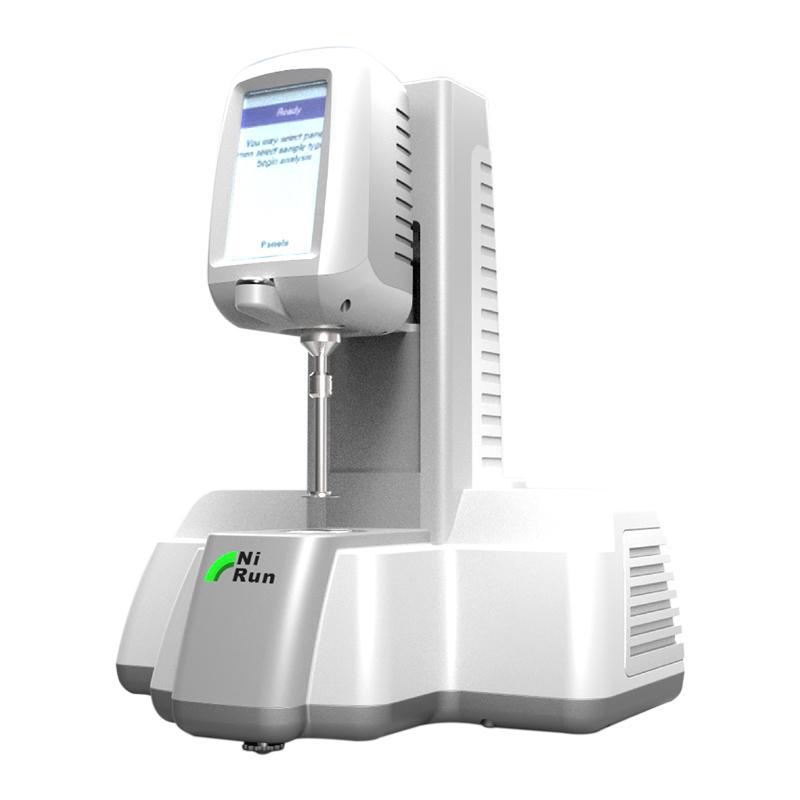

NIRUN NTV-CAP3L Cone Plate Rheometer High Shear Rate Rheology Determination, Rotor Purchase -5 ℃~ 120 ℃
NTV-CAP3L
NiRun NTV-CAP3L Cone Plate RheometerSPEC
NiRun NTV-CAP3L Cone Plate RheometerDetails
NiRun NTV-CAP3L Cone Plate RheometerPacking list
- SKU
- NB047834
- Measurement range
- 20~1500000mPa · s (determined by rotor number)
- Rotor speed
- 5-1000Rpm (Rotation speed adjustable)
- Temperature range
- -5℃~120℃
- Measurement Accuracy
- ±2%（F.S）
- Temperature Accuracy
- ±0.1℃
Features
The 1.7-inch wide touch screen is easy to operate and displays rich information
2. Optional DV data acquisition and program control software can measure rheological characteristics, and the screen can directly display the rheological curve
3. Display shear rate and shear stress indicators
4. Anti-static shell, automatic lifting design
5. Built-in PT100 temperature probe
6. ARM chip processor, faster data processing speed
7. Durable new bearing design
8. Powerful human-computer interaction interface
9. Gigabit network port data communication transmission, fast and reliable data transmission.
10. Support external U disk data storage; Single-point, continuous, and timed storage methods are optional.
11. Password protected temperature and viscosity correction coefficients, allowing users to correct temperature and viscosity correction coefficients by themselves under the premise of reliable and accurate data.
12. Support stepless variable speed measurement viscosity, input any speed, it directly reflects the full scale range under each rotor, which is convenient for users to select test conditions.
13. Automatic conversion of dynamic viscosity and kinematic viscosity
14. Arbitrary interchange of various viscosity units
15. A variety of user-friendly operation style interface interchangeable
16. Comes with powerful operation wizard help
17. The viscosity value shows a continuous change
18. There is an alarm sound prompt when the measurement range is out
19. Computer full-scale linear correction
20. AC power adapter 100V-240V, good anti-interference
Optional
CAP viscosity standards; CAP rotor; DV data acquisition and analysis software
Product Applications
Medium viscosity fluids: hot melt adhesives, coatings, resins, starches, screen printing inks, surface treatments, organic solvents, creams, foods, gels, chewing gum, plastisols, etc
High viscosity fluids: adhesives, gels, sealants, bitumen, printing inks, chocolate, tar, molasses, pastes, synthetic polymers, epoxy polymers, vinyl esters, roofing materials
Rotor parameter comparison table
| Rotor number | Shear rate | Sample size | Viscosity range |
| CAP-01 | 13.3N | 67μL | 20-37500 |
| CAP-02 | 13.3N | 38μL | 37-75000 |
| CAP-03 | 13.3N | 24μL | 75-150000 |
| CAP-04 | 3.3N | 134μL | 150-300000 |
| CAP-05 | 3.3N | 67μL | 300-600000 |
| CAP-06 | 3.3N | 30μL | 750-1500000 |
| CAP-07 | 2.0N | 1700μL | 32-63000 |
| CAP-08 | 2.0N | 400μL | 125-250000 |
| CAP-09 | 2.0N | 100μL | 500-1000000 |
| CAP-10 | 5.0N | 170μL | 50-100000 |
