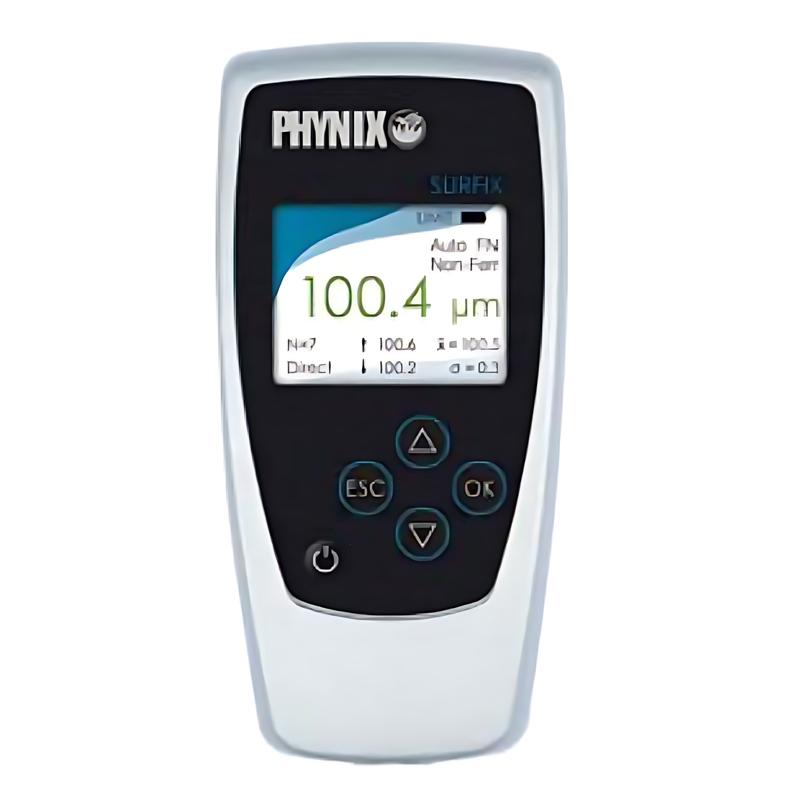

German PHYNIX Surfix SX-N0.5A Split Micro Probe Coating Thickness Gauge

Surfix SX-N0.5A

Split miniature probe Coating Thickness Gauge

Measurement range 0-500μm, Accuracy +/- (0.7um + 1%), minimum headroom height 85mm, minimum sample diameter 3mm, zero calibrated, memory 1000, data transfer USB2.0.

Introduction

Sophie SurfixSX-N0.5A Split Micro Transducer Coating Thickness Gauge is a coating Thickness Gauge produced in Phoenix, Germany, external separation probe, eddy current measurement principle, suitable for testing non-magnetic metal substrates, with automatic identification function. All measuring probes of the Sophies SurfixSX-N0.5A Split Micro Transducer Coated Thickness Gauge are made of carbide, which means it has a high service life. The front end is designed with a V-groove for measuring cylindrical or curved surface coating, and is equipped with a probe cap to stabilize the coating on the measuring plane. Whether for users who need to measure coating thickness in an easy way, or for statistical evaluation, the Surfx® Easy Series is a reliable instrument, a wear-free measurement, and a high-quality product "Made in Germany".

Features

• The measuring probe is small and the measurement is stable.

• No calibration is required, and statistical parameters such as measured values and average values can be realistic.

• It is suitable for high-speed rail, powder coating, paint workshop, automobile, shipbuilding, building materials industry and other fields.

• The probes are made of cemented carbide and are wear-resistant.

• Innovative and user-friendly measuring processes: open and measure.

• It can be measured on horizontal, rough, and curved surfaces.

• Type N is used for non-ferrous metal measurements, calibration-free measurements.

• Online statistics (n, x, s, min, max).

• Large contact surface to ensure accurate positioning.

• An acoustic signal is emitted during the measurement.

• Switchable μm/mils.

• Manufacturer's factory test certificate.

Application

• N-type probeMeasure the thickness of all non-conductive layers on non-ferromagnetic metal substrates such as copper, aluminum, stainless steel, etc., such as: paints, powders, various anti-corrosion coatings, plastics, rubber, synthetic materials, phosphate layers, oxide layers, etc.

• Paint shop.

• Paint and powder coating processes.

• Car appraisal and car repair shop.

• Steel structures, automobile manufacturing and shipbuilding.

• aluminum oxide layer, etc.

• Production process.

• Final inspection and quality control.

• Laboratory and field tests such as conformal coating for circuit boards.

Packing list：Host X1, rubber protective cover X1, calibrated film X2, zero standard sheet (aluminum) X1, AA battery X2, software X1, user manual X1, manufacturer's certificate X1, Encasement box X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
