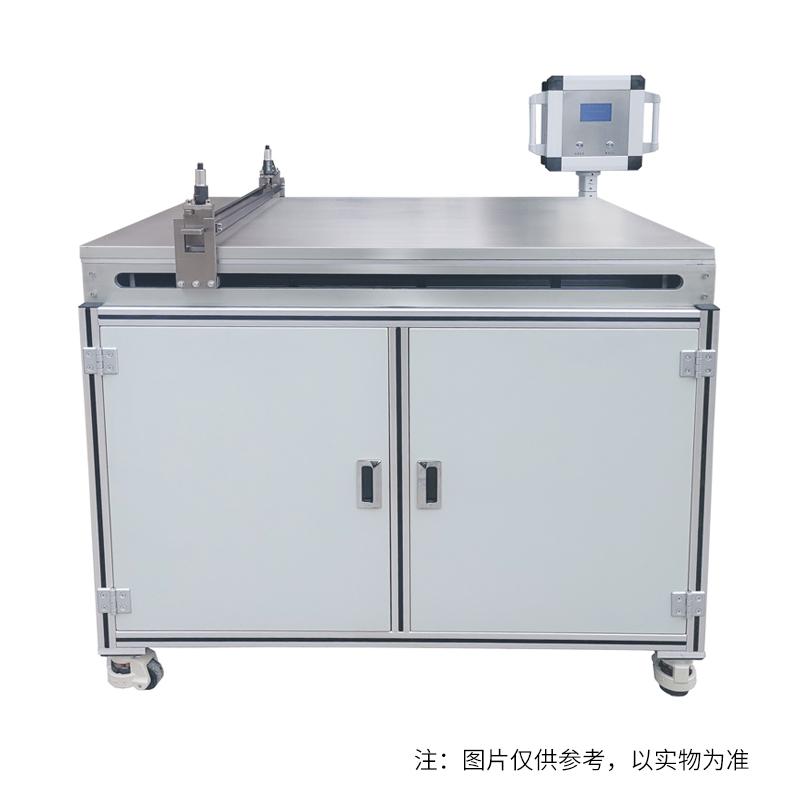

CHINA TBJ-X5-DJ9 Floor Type Automatic Film Applicator Automatic Feeding drawdown blade coater
SEWith automatic feeding system, integrated adjustable drawdown blade, with heating and vacuum adsorption function, Coating size 600 * 700mm, automatic feeding barrel volume 1L, baseplate heating temperature up to 180 degrees Celsius.
$12818.00/set
PromotionLoading...
Coupon
Model：
TBJ-X5-DJ9
zy
Manufacturer authorization
Similar products
-
CHINA TBJ-X5-DJ8 Experimental Automatic Film Applicator Automatic Feeding, Coating Size 600 * 700mm$ 10642.00SE -
China TBJ-X2-DJ6 Drawdown blade Vacuum chuck Film Applicator with automatic inking system$ 7688.00SE -
China TBJ-X1-DJ2 Experimental Drawdown blade coater automatic feeding + Vacuum chuck + Drawdown blade Multifunctional Film Applicator$ 5045.00SE -
HuiNuo TM 2300/03 drawdown blade Vacuum chuck Automatic Film Applicator Effective area 650x400mm$ 6133.00SE
zy TBJ-X5-DJ9 Automatic Film ApplicatorSPEC
zy TBJ-X5-DJ9 Automatic Film ApplicatorDetails
zy TBJ-X5-DJ9 Automatic Film ApplicatorPacking list
- SKU
- NB047853
- Coating method
- Wire rod + adjustable drawdown blade + automatic feeding system
- Drawdown blade type
- Integrated drawdown blade
- Drawdown blade Accuracy
- ±0.003mm
- Drawdown blade film thickness
- 0.001-10Mm drawdown blade can be lifted
- Coating speed
- 5-200Mm/s (< 5mm/s can be customized)
- Coating size
- 600 * 700Mm (Miscellaneous size can be customized)
- Spreader distance control
- The number can be set arbitrarily within the range of 1-700mm
- Vacuum Area
- 600 * 700Mm (can be customized)
- vacuum aperture
- Φ1.2mm
- Vacuum hole spacing
- 20*20mm
- Vacuum pump size
- 380*180*280mm
- Substrate clamping method
- Vacuum adsorption
- Control mode
- Touch screen control
- Host Power Supply
- 220V 50Hz
- Net Weight
- Subject to the actual product
- speed control
- Infinitely variable speed
- Coating table material
- aluminum alloy
- customization function
- Automatic feeding system
- Dimension
- Subject to the actual product
- Feeding principle
- Air source pressure flows out
- Feed Sport Mode
- Reciprocating linear motion
- Feeding back and forth traverse speed
- 2-150mm/s
- spit Volume
- Adjustable (by adjusting the air pressure and the running speed of the discharge port)
- Shaft transmission mode
- Timer belt
- Feeding system air source
- 0.6Mpa, can be connected to the trachea of φ 8 (self-equipped)
- Power Voltage of charging system
- 220V,50Hz
- Tank pressure
- Maximum withstand 8Mpa
- Material of feeding barrel
- 304 stainless steel with a wall thickness of 4mm
- Feeding bucket configuration
- Safety valve, pressure regulating valve, pressure gauge, discharge valve
- Temperature range
- RT+~180℃
- Temperature Uniformity
- ±3℃
- Feeding drum Volume
- 1L
- Optional Accessories
- Leakage tank, substrate fixture, trimming horizontal height support foot device, Glass plate, silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle
- customizable function
- Automatic lame plating device, UV curing device, air knife drying, remote control, upper infrared heating, double extrusion Spreader

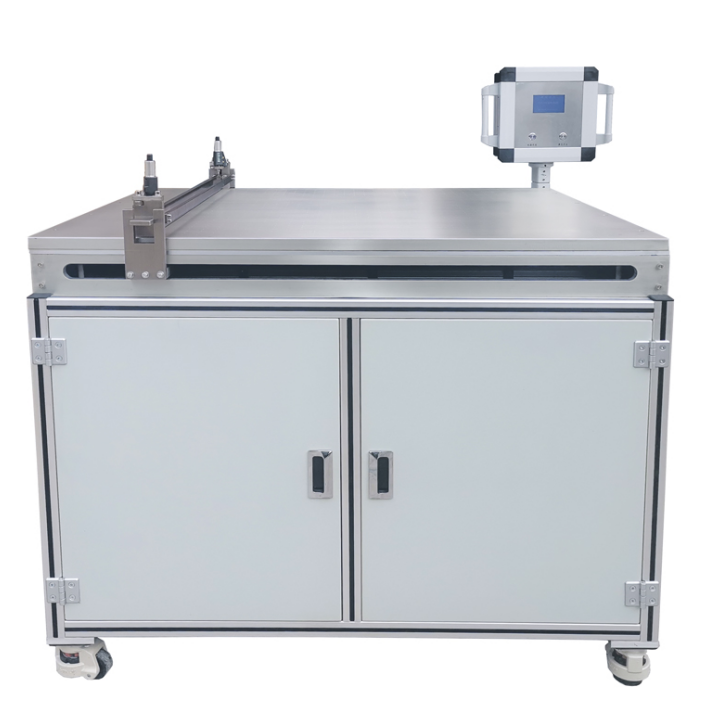

TBJ-X5-DJ9
Automatic Film Applicator
With automatic feeding system, integrated adjustable drawdown blade, with heating and vacuum adsorption function, Coating size 600 * 700mm, automatic feeding barrel volume 1L, baseplate heating temperature up to 180 degrees Celsius.
TBJ-X5-DJ9 floor-standing automatic film coating machine with automatic feeding system, coating width 600*700mm, is a scraper coater with both heating and vacuum adsorption functions, integrated scraper design, coating accuracy ± 0.003mm.
Optional
|
|
|
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
