Automatic Film Applicator for large coils unwinding + scraping + drying (8m oven) + heating film laminating + trimming + deviation correction + winding function

With unwinding - scraping - drying - heating film laminating - trimming - correction - winding function, drawdown blade, oven length 8 meters, application width 500mm, rubber roller heating temperature up to 200 ℃.

$28053.00/set

PromotionLoading...

Coupon

Model：

Rxg-08/500hret

Factory

Contact

Details SPEC Con

Factory Rxg-08/500hret Automatic Film ApplicatorSPEC

Factory Rxg-08/500hret Automatic Film ApplicatorDetails

Factory Rxg-08/500hret Automatic Film ApplicatorPacking list

SKU: NB047857

Coating speed: 1~10m/min

application width: 100-500Mm adjustable

WFT: 0.005-3mm

maximum discharge: 500mm

maximum charge: 500mm

Effective application width: 500mm

Drying Temperature range: Room temperature -200 ℃

Drying channel length: 8m

Drying Power: 1KW

Power/Power: 220V/2.5KW

rubber roller: Heating temperature: room temperature~ 200 ℃

Spreader head: Drawdown blade

Coating size: Max.500mm

Rxg-08/500hret

Automatic Film Applicator

Introduction

The coating program of RXG-08/500HRET large coil automatic coating machine is unwinding-scraping-drying-heating lamination-trimming-deviation correction-winding, equipped with 8-meter oven device, effective coating width of 500mm, rubber roller heating temperature of 200°C, suitable for hot melt adhesive coating film.

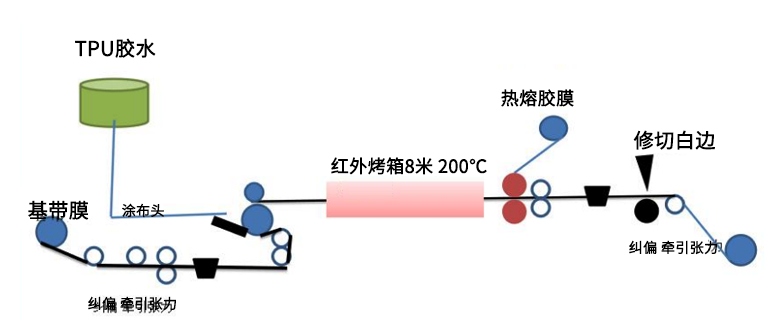

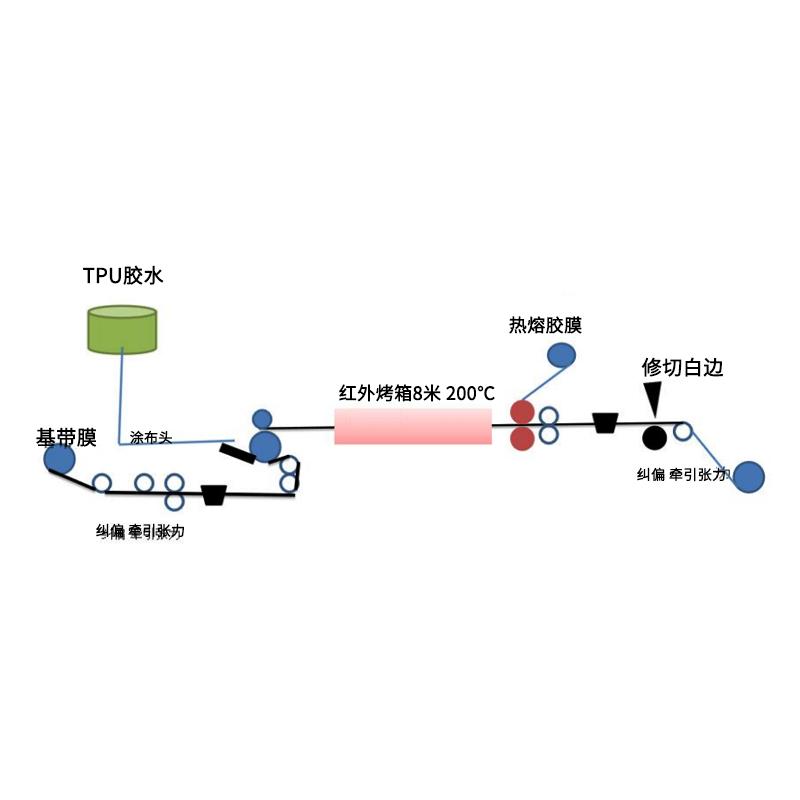

Structure diagram of the coating procedure

Domestic brand RXG-08/500HRET Large Coil Automatic Coating Machine Details Figure 1
