YUEPING FA1004C Electronic Analytical Balance Auto Internal Cal Weighing Range 0~100g

FA1004C

Analytical Balance

Introduction to FA1004C Electronic Analytical Balance

Yueping FA1004C Electronic Analytical Balance is a fully automatic internally calibrated one-tenth-thousandth Electronic Analytical Balance. The Weighing range of FA1004C is 0~100g, and the readability accuracy is 0.1mg. FA1004C Electronic Analytical Balance adopts a new generation of electromagnetic balance weighing sensor to ensure the high accuracy of the product.

Specifications

product advantages

The FA1004C Electronic Analytical Balance is controlled by a high-performance STC-54 single-chip microprocessor to ensure the precision, stability and high accuracy of the balance.

In addition to the functions of general intelligent electronic balances, including fully automatic internal calibration, external calibration, automatic screen saver, linear four-point calibration, integration time and sensitivity can be appropriately selected, this balance also has three measurement systems: grams, metric carats and Gold ounces are freely selectable by the user (metric carats and gold ounces are for export balances).

The data interface is equipped with RS232C universal serial output, which can be connected to microcomputers and various serial printers.

The serial data output also has two modes: scheduled and unscheduled output. The timing can be set to three different Timer Settings for users to choose freely.

Features

1. Yueping FA-C Electronic Analytical Balance has a power-off memory function, so if you think the original average is accurate, you can avoid the steps of averaging function.

unit conversion measurement system conversion

2.Integration time adjustment

There are four sequential cycle modes to choose from for the integration time.

3. Stability adjustment

Stability also has four modes to choose from that cycle in sequence.

4.Print output mode setting

As long as you hold down the "Print" key and don't let go, four modes will appear on the display, cycling through them for the user to choose from.

5. This balance has two methods: internal calibration and external calibration.

6. This FA1004C Electronic Analytical Balance has a counting function, and its average has four levels: 5, 10, 25, and 50.

How to calibrate a balance

In order to obtain accurate weighing results, calibration is required to adapt to the local acceleration of gravity.

Calibration is required:

•Before using the balance for the first time

• Weighing work is carried out regularly

•After changing the placement location

Product Structure

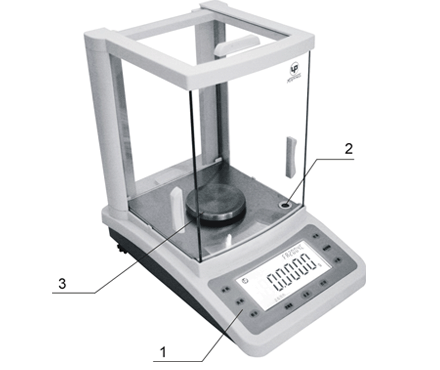

Description: 1 panel, 2 level, 3 weighing pan

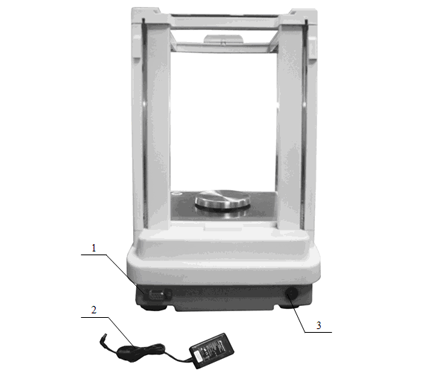

Description: 1 data interface, 2 adapter, 3 power socket

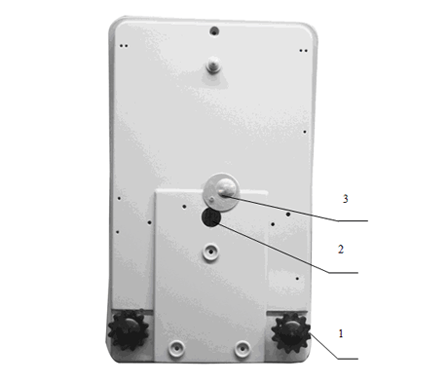

Description: 1 leveling feet, 2 hooks, 3 cover

Packing list：Balance host x1, pan x1, adapter x1, manual x1, product certificate x1, warranty card x1, dust cover x1.

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
